Indoor Full Color High-Definition LED Display (AirLED-5)

Name: Indoor Full Color High-Definition LED Display (AirLED-5)
Brand: china-manufacturer-directory.com
SKU: 699612195
Availability: InStock
Rating: 4.7 (38 reviews)

Supplier:	Shenzhen CreateLED Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Square Meter
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	AirLED-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Type:	3-in-1 SMD
Brightness:	1, 500nits
Contrast Ratio:	2000: 1
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/8 Scan
Application:	Shopping Guide
Certification:	EMC
Pixel Configuration:	SMD 3-in-1
Pixel Pitch:	5.2mm

Product Description

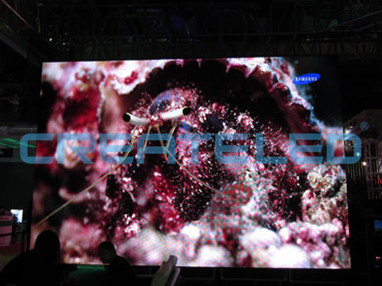

CreateLED AirLED-5 Black Face, combining ultra-lightweight design with remarkable high-performance and cost-efficient, this LED display quickly became the most popular type during 2011-2012. With output of 1, 500 Nits and 16 bit color processing, this LED video display is sure to deliver the super amazing image quality in any indoor setting.

Each AirLED-5 panel measures an standard of 500mm X 500mm in size with a thickness of just 65mm including the intelligent louver, giving an ultra light weight display of only 7kg per panel (28kg per square meter only). It's an ideal solution for applications which the weight loading limited, and the maximum creative freedom is needed.

Key Benefits
1. Budget friendly product, ideal for basic rental and fixed installations.
2. Extremely close view distances and wide view angles.
3. Silent operation, little heat generated (no fans).
4. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
5. Lightweight and seamless, precision extruded aluminum section structure.
6. Real white, brilliant colors, breathtaking grayscale.

	AirLED-5
Pixel Pitch	5.2mm
LED Type	3-in-1 SMD
Brightness	1, 500nits-1, 800nits
Viewing Angle	H: 160 degree
Viewing Angle	V: 100 degree
Contrast Ratio	2000: 1
Pixel Density	36, 864/sqm
	3, 426/sqf
	9, 216/panel; 13, 824/panel
Module Size	250mm x 250mm
Module Resolution	48 x 48
Panel Size(WxHxD)	500mmx500mmx65mm/750mmx500mmx65mm
Panel Resolution	96 x 96/144 x 96
Weight	7kg/panel/10kg/panel
Power Consumption	200W/Panel; 300W/Panel Max
Power Consumption	80W/Panel; 120W/Panel Ave
Processing	16 bit/color
Refresh Rate	600-2, 000Hz
Drive Method	1/8 Scan Method
Environment	Indoor use only
Max Stacking	20 panels
Max Hanging	20 panels
Servicing	Front & Back
Panel Material	Precision Extruded Aluminum Section
Source Compatibility (with Processor)	VGA(RGBHV), DVI, HDMI, SDI(HDSDI)

Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.

Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.

About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
