Supplier: | Enbon Optoelectronics Limited |
---|---|
Price: | US $ 835/Square Meter |
Min Order: | 1/Square Meter |
Quantity:: | |
Trade Terms: | FOB,EXW |
![]() |
Prod Model: | P5.68 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 500*1000mm |
Curved: | From - 15 Degree to + 15 Degree |
Weight: | 12 Kg |
Refresh Rate: | > 2000 Hz / S |
Tube Chip Color: | Full Color |
Display Function: | Video Display |
Pixel Configuration: | 1R,1G,1B |
Display Type: | LED Video Display |
Application: | Shopping Guide |
IP Rating: | IP40 |
Certification: | RoHS |
Pixel Pitch: | 5.68mm |
Pixel Density: | 30,976 Pixels/M2 |
Scanning Mode: | 1/11 Scan |
System Operating Platform: | Windows XP, Windows 7, Windows 2000 |

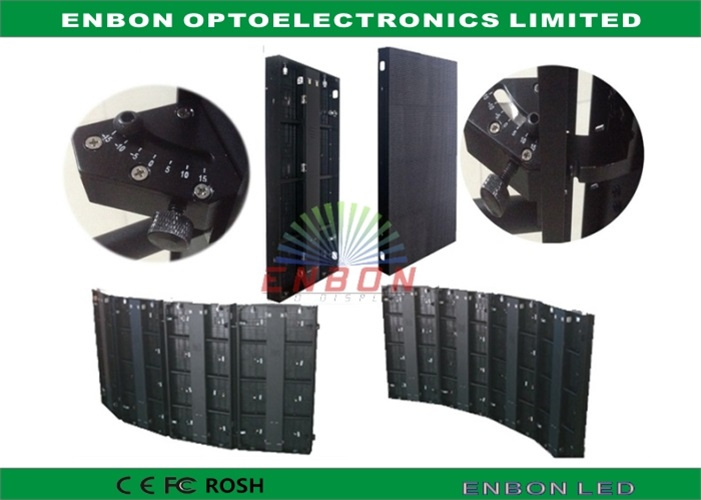

Model | P5.68 curved slim aluminum LED display for rental indoor |
Pixel pitch | 5.68mm |
Pixel density | 30,976 dots /sqm |
Module size ( W * H ) | 250 mm ( width ) * 250 mm ( height ) |
Module pixels ( W * H ) | 44 dots *44 dots |
Pixel configuration | 1 Red 1 Green 1 Blue |
Drive mode | constant current driving 1/11 scan |
LED lamp type | SMD3528 |
Cabinet size ( W * H ) | 500mm*1000mm |
Cabinet resolution | 88*176 dots |
Net weight | 12 Kg / cabinet |
Color scale | 65,536 degree |
View angle ( H / V ) | 140 / 120 degree |
Brightness ( White balance ) | about 1800 cd / SQM. |
Power consumption | Max : 300 Watte / cabinet , Average : 100 Watte / cabinet |
Inputting Voltage | 90-264VAC 47--63Hz |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥2000Hz /s |
Control distance | 100m ( without repeater ) , single mode fiber : 20km , multi mode fiber : 500m |
LED control system | LINSN , Nova-star , Colorlight are selectable |
Operating system | Windows Xp / Windows 7 / windows 8 / 8.1 / windows 10 |
Protection grade | IP31 |
Maintenance way | Rear Access |
Accepting signal with video processor | HDMI , PAL , NTSC , HDMI , BNC , TV , SDI , VGA , Media player etc . |
