Supplier: | Shenzhen Foxgolden Technology Limited |
---|---|
Price: | US $ 650-800/Square Meter |
Min Order: | 1/Square Meter |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | indoor LED display p3 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

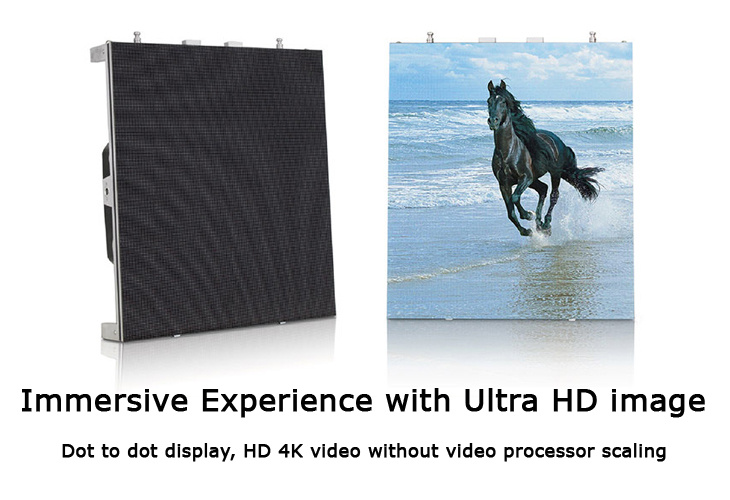

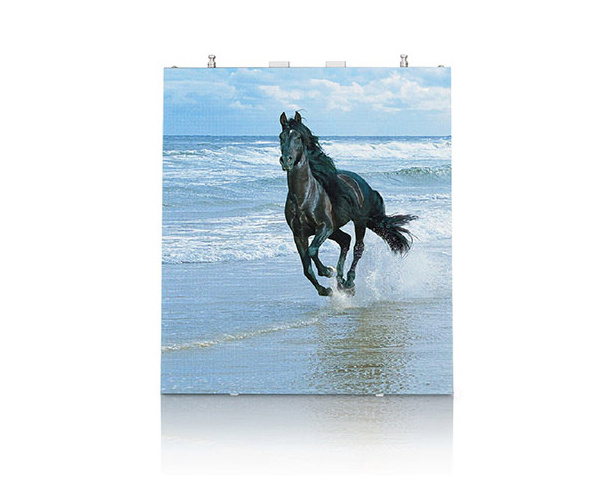

Style: | Indoor P3 SMD Full Color LED Display for Wedding P |
Size Of Unit Board: | 192mm*192mm |
Resolution Of Unit Board: | 64*64 |
Density Of Pixel: | 15625 |
Colors: | 1777216 |
Best Viewing Distrance: | More Than 10m |
Max Power Consumption: | Less Than 1100W/M2 |
Color Temperature: | -20°-- 80° |
Certificate: | CE&RoHS |
Tube Chip Color: | Full Color |
Display Function: | Video Display |
Pixel Configuration: | 1R,1G,1B |
Scanning Mode: | 1/8 Scan |
System Operating Platform: | WIN XP |
Application: | Concert |
IP Rating: | IP43 |
Certification: | ETL |
Pixel Pitch: | 3mm |
Pixel Density: | 111111DOT/Sqm |

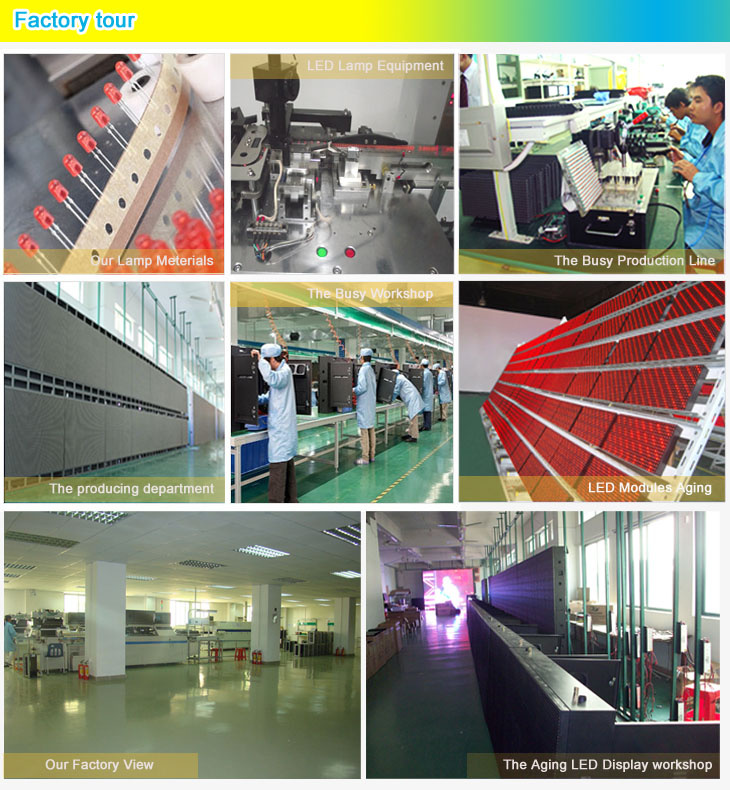

FOXGOLDEN GROUP LTD (www.foxgolden.com)is a professional high quality LED display manufacturer. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
As a company based on market, we are going to be a world wide famous brand in LED display industrial.
Parameter | Value | |
Physical Parameter | Pixel Configuration | 1515 black body 3in1 SMD |
Pixel Pitch (mm) | 3 | |
Pixel matrix per panel | 64×64 | |
Pixel density(pixels/sq.m.) | 111111 | |
Module Dimensions (LxWxH)/(mm) | 192×192 | |
Cabinet Dimensions (LxWxH)/(mm) | 576×576×100 | |
Panel material | Aluminum-alloy | |
Cabinet weight (kg/panel) | 10.2 | |
Electronic Parameter | Color Grayscale (Bit) | 14 |
Gray Scale per Color (level) | 16384 | |
Refresh Rate(Hz) | 2400 | |
Driving Type | 1/15 | |
Frame Frequency(Hz) | 50/60 | |
Signal Transmission Distance (m) | CAT5 cable:<100 m; Single mode fiber:<10 km | |
Optical Parameter | Brightness(nit) | 1000 |
Optimal Horizontal Viewing Angle(°) | 160 | |
Optimal Vertical Viewing Angle(°) | 140 | |
Electrical Parameter | AC Input Voltage(V) | 100~240 |
AC Input Frequency(Hz) | 50/60 | |
AC Input Power Maximum Value(W/sq.m | 555 | |
AC Input Power Typical Value(W/sq.m) | 185 | |
Circumstanc e Parameter | Storage Temperature(ºC) | -20~+50 |
Operating Temperature(ºC) | -10~+40 | |
Storage Humidity(RH) | 10%~90% | |
Operating Humidity(RH) | 10%~90% | |
IP rating (Front/Rear) | IP40 | |
Lifetime Typical Value(hrs) | 100000 | |
Installation type for rental product | Cabinet installation type | rental\fix |
Maximum number of panel for Lifting | 16 |
