Price: | US $ 2.5/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Money Gram,Western Union |

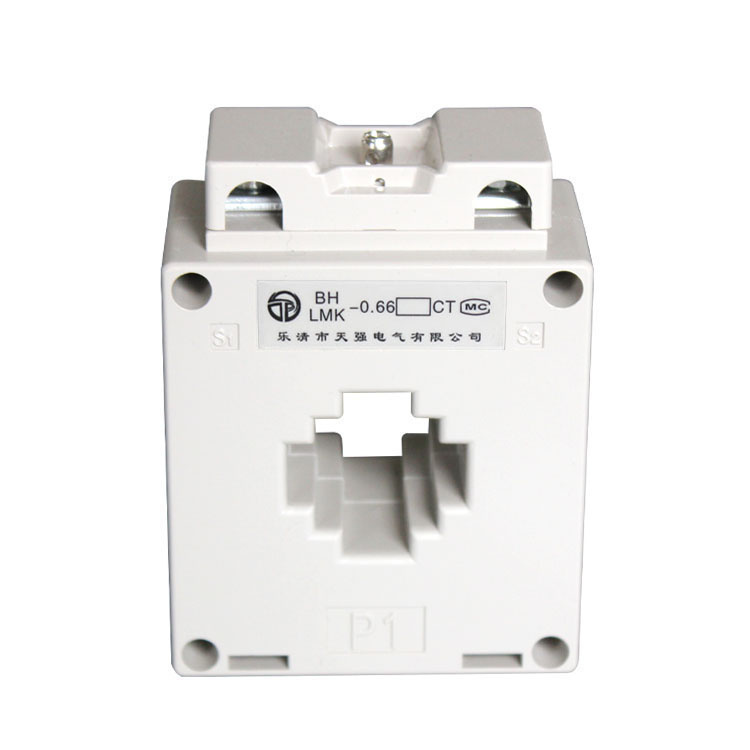

NSQ Current Transformers:th products comply with VDE 0414, BS7626 and IEC 44-1 standard.
Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient: | 30A-3000A 5A, 1A BS7626, IEC44-1 0.66KV 50-60Hz 2.5VA, 15VA 0.5, 1.0, 3.0 Ith=60 X Ih FS<5 |
Technical data:
Model | Primary/ secondary | Busbar Hole Dimension | Rated Burden (VA) | class | Rated Voltage | Rated Frequency |
NSQ-30 | 30/5A-300/5A | 30 X 10mm | 2.5-5 | 0.5/1.0 | 0.72 | 50/60Hz |
NSQ-35 | 50/5A-400/5A | 35 X 10mm | 5 | 0.5/1.0 | 0.72 | 50/60Hz |
NSQ-40 | 100/5A-600/5A | 40 X 10mm | 10 | 0.5/1.0 | 0.72 | 50/60Hz |
NSQ-60 | 600/5A-1600/5A | 60 X 10mm | 15 | 0.5/1.0 | 0.72 | 50/60Hz |
NSQ-100 | 800/5A-3000/5A | 100 X 10mm | 15 | 0.5/1.0 | 0.72 | 50/60Hz |
Dimension of case (mm):
Model | A | B | C | D | E | F |
NSQ-30 | 30 | 78 | 46 | 95 | 112 | 70 |
NSQ-35 | 40 | 70 | 46 | 84 | 100 | 70 |
NSQ-40 | 45 | 80 | 46 | 87 | 104 | 70 |
NSQ-60 | 60 | 110 | 53 | 130 | 148 | 80 |
NSQ-100 | 100 | 155 | 53 | 174 | 191 | 80 |
Prod Model: | NSQ |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
-: | - |
Application: | Lighting |
Type: | Current Transformer |
Phase: | Single |
