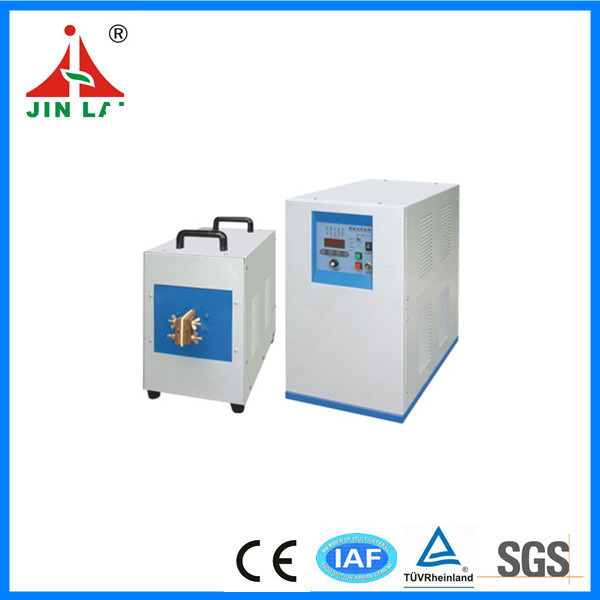

Induction Pliers Quenching Machine Tool (JLCG-30KW)
Product Specifications
| Prod Model: |
JLCG-30KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 |
| Frequency: |
50-200kHz |
| Input Voltage: |
3 Phase 380V |
| Current: |
45A |
| Duty Cycle: |
100% |
| Including Parts: |
Generator,Transformer,Induction Coils,Cable |
| Warranty: |
1 Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Product Description
Induction Pliers Quenching Machine Tool (JLCG-30KW)
Main Feature:
1. Ultrahigh series: High frequency, able to heat Φ 0.1mm work-piece.
2. Small size, light weight, low failure rate and conservation of energy (which can save the power by 70% as compared with glass-ceramic vacuum tube high frequency heating machine).
3. It can ensure the solid welding point which is pleasing and delicate in appearance, integral geometric configuration, perfect surface grain, complete crystal structure of internal metal part, limited annealing range and elimination of obvious weld knot.
4. About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
5. It is applied to the welding of couplers and inserts used in metal glass manufacturing as well as electric appliance and electronics industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles an art wares.
|
Model |
JLCG-30KW |
|
Input power desire |
3 phase 380V 50/60HZ |
|
Oscillate power max |
30KW |
|
Max input current |
45A |
|
Oscillate frequency |
50-200KHZ |
|
Cooling water desire |
0.3Mpa≥6L/MIN |
|
Duty cycle |
100% 40°C |
|
Dimensions |
Generator |
630*300*540mm |
|
Transformer |
450*300*430mm |
|
Net weight |
30kg/20kg |
|
Cable length |
2-6(Meters) |
Dongguan Jinlai Electromechanical Device Factory, founded in 1996, which is engaged in R&D, production and sale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Now there are series of products range from 3KW to 600KW, including the ultra-high/high/ super-audio/medium frequency induction heater, KGPS Parallel IF Power supply, IGBT energy saving IF power supply, 12 pulse IF furnace and special equipments (e. g. High-frequency quenching machine, Medium-frequency induction melting furnace, Ultrasonic -frequency annealing machine, Induction forging furnace, Brazing machine, Plastic welding machine, Branch divider/Bicycle fittings special -purpose welding machine, Railway river furnace, etc). These products are widely applied in the heating of hardware, metal (steel, iron, copper, aluminum) processing, plastic, deeply heating shaping, brazing, hardening, melting, annealing, hot cooperation and so on.
It was certified to ISO9001: 2008 quality system and CE certification. Advocating quality management conception of "producing products with zero defect", the quality has been guaranteed. The company has been sated up and perfected the marketing network and after-sales system. Our products are widely exported to Russia, USA, Italy, Romania, Netherlands, Finland, Turkey, Ukraine, Argentina, Brazil, India, Pakistan, Malaysia, Indonesia, Thailand, Vietnam and other countries or region. Most of products gain good reputation from customers.
Our conception is "human-oriented, service the society with innovation". "the quality and prestige are the fist" is our mission. The principle is "communal development, mutual benefit, we are looking forward to cooperate with you to create a bright future!
