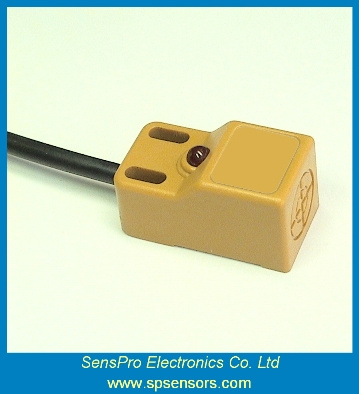

Product Specifications
| Prod Model: |
SPXIR18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features:
- Rectangle shape with 18mm width
- DC 3-wire (10-30V DC)
- Available for Flat and Vertical Pack
- Plastic case for general automation industry
Applications:
- Measuring, Counting, RPM measuring in mechanism, paper manufacture light industry, etc.
| Specification |
| Detecting Distance | 5mm |
| Sensing Direction | Vertical Pack |
| Connection | Cable Type (DC 3cores Dia. 4mm) |
| Supply Voltage | 10-30VDC |
| Output Mode | NPN, PNP |
| Output Type | Normal open, Normal close |
| Output Current (MAX) | 200mA |
| Current Consumption | 8mA |
| Leakage Current | < 0.1mA |
| Residual Voltage | < 1.5VDC |
| Response Frequency | 500Hz |
| Reverse Polarity Protection | Equipment |
| Short Circuit Protection | Not Equipment |
| Hysteresis | 10% |
| Ambient Temp/ Humidity | -25°C to 55°C / 25% to 90% RH |
| IP Protection Category | IP67 |
| Size (L/W/H) | L/W/H 35/18/18mm |
| Remark | Supply power 5VDC Type is available |
SensPro Electronics supplies OEM pressure (static and differential), temperature, proximity and photoelectric transducers, sensors as well as module, components, assemblies and sensor based products manufactured in China but meeting international standards.
SensPro Electronics has rich experience in designing and manufacturing sensor and sensor based products.
We design and manufacture:
* Sensor solutions for pressure and position
* Prompt response to inquiries
* competitive prices
* Professionlism, Effectiveness, Quality
We can meet customers requirements on perfomance and cost. SensPro is continuously focusing on innovation to meet our customer's changing requirements, while keeping the world in harmony with the environment.
SensPro Electronics offers one year warranty to the original purchaser. It will be replaced free of charge for any defective not including sensors being modified, misused, neglected or installed where the application exceeds published ratings.
