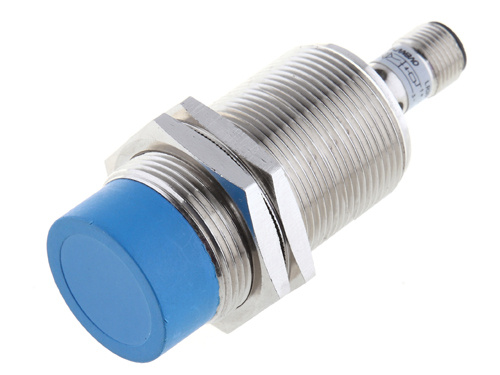

Inductive Sensor Lr30 Proximity Sensor
Product Specifications
| Prod Model: |
LR30XCF10SBO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
PVC Cable 2m |
| Housing Size: |
M30*62 M30*77 |
| Power Supply: |
20^250VAC/DC |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
Product Description
Feature Description
Detect various metal material
Surge protection
Housing material: Nickel-copper Alloy
Protection degree : IP67 (IEC)
Connection diagram
CE, CCC, UL, RoHS, ISO.
|
Mounting |
F NF |
|
SN |
10mm 15 mm |
|
Power supply |
20^250VAC/DC |
|
Housing size |
M30*62 M30*77 |
|
Thread size |
M30*1.5*53 |
|
Output |
NO/NC |
|
Temperature drift |
≤±10% |
|
Hysteresis |
1^20% |
|
Repeat accuracy |
≤3% |
|
Load current |
AC:≤300mA,DC:≤100mA |
|
Residual voltage |
AC:≤ 10V,DC :≤8 V |
|
Consumption current |
AC:≤3mA,DC:≤1mA |
|
Protection circuit |
Surge protection |
|
Indicator |
Yellow LED |
|
Ambient temp. |
-25^70ºC |
|
Ambient RH |
35-95%RH |
|
Frequency |
AC:20 Hz
DC:500Hz |
|
Protection degree |
IP67 |
|
Housing material |
Nickel-copper Alloy |
|
Connection |
PVC Cable 2m |
Shanghai lanbao sensor technology Corporation was founded in 1998, the company is located in Shanghai lanbao Science Park, the park covers an area of 33, 000 square feet and employs more than 360 people, is a leading supplier of industrial automation, measuring and control sensors, instrument Industry Association of China, Shanghai high-tech enterprise.
Lanbao sensor technology limited liability company main business for industrial measurement and control sensor research and development, production, sale and application, to provide standardized and customized industrial measurement and control sensors and industrial measurement and control system. Series of products have passed CCC certification, CE certification, UL certification and the certification of quality management system certification, and has implemented the EU RoHS environmental directives, including inductive sensors, photoelectric sensors, capacitive sensors with ceramic thick film pressure sensors, more than more than 30 series, more than 3, 000 kinds of specifications. The technical performance of the industry-leading position, which products reach the international advanced level. Lanbao relies on its own technological advantages for the customer of industry control system meets the requirements.
Lanbao always adhere to the advanced technology, flexible system configuration, stability, safety and energy saving operation, hassle free professional services in a timely manner, to create ideal value for investment in the industry.
