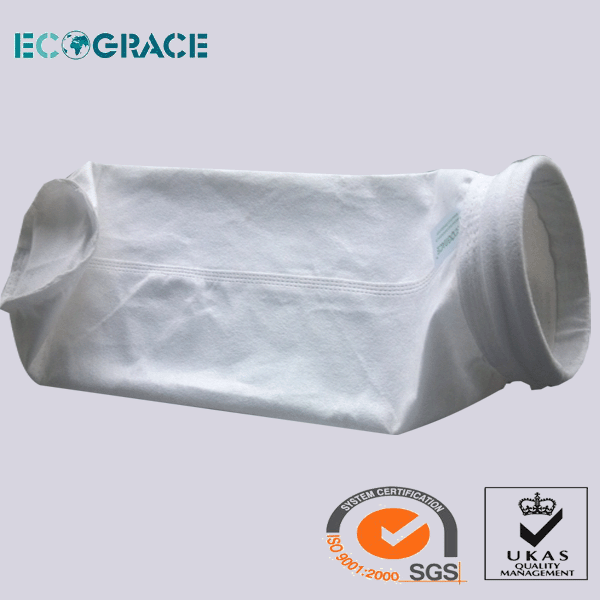

Hot Sale Filter Bag / PTFE Bag Filter
We have international advanced Finishing treatment equipment, can do well treatment by our factory for our filter material fabrics:
1. Water &Oil repellent
2. Anti Static function
3. Filter Media with Thermal or sticky PTFE membrane.
4. Coated or impregnated PTFE polymer.
The advantage of PTFE membrane filter cloth:
1. High filtration efficiency 99.999%
2. Easy dust cake release
3. Long recycle time
So to increase the working life, decrease the operation cost.
Materials (Fiber):
Polyester, PTFE Membrane
Weight (g/sqm): 500
Thickness (mm): 1.8
Tensile Strength (n/5X10cm): Warp 1200, weft: 1350
Tensile Elongation (%): Warp: 17, weft: 20
Air Permeability (L/sqm x S): 30-40
Temperature: Working temperature: 130
Short working temperature: 160
Surface Treatment: Heat setting, PTFE Membrane
|
Fiber: |
100%PTFE shot fiber |
|
Scrim: |
100%PTFE filament yarn |
|
Weight/Tolerance:(g/ m2) |
750 |
|
Thickness/Tolerance:(mm) |
1.2+_0.2 |
|
Width:(mm) |
1200 |
|
Mechanical Finish |
Heat styling |
|
Air Permeability/Tolerance);(min/m2) |
8-12 |
|
Typical Load @ peak(N/5mm) |
MD:>800 XD:>800 |
|
Typical Strain@ Peak |
MD:<18% XD:<20% |
|
Typical Strain@50N |
MD:1.5% XD:2% |
|
Heat Shrinkage |
MD:<1.5% XD:1% |
Hangzhou Grace Envirotech is a joint venture in China combined with Grace Filter Manufacturing (U. K) Limited. We are the largest manufacturer of Filter Needle Felts, filter bags, Dust Collectors, and dust collector parts; Meanwhile, we are designing and producing dust collecting system for cement plant, power plant, as well as iron and steel plant. Our company is the largest enterprise in the dust collecting industry in China,
Our factory is located in Industrial Area in Hangzhou, four big needle felt production lines. We have formed big scale production by our advanced equipment and mature technology. We design dust collecting system, produce filter bags for customers and users, and provide site technology consultant service, design, production, as well as after-sale service.
Nomex filter bag, PPS filter bag and P84 filter bags are now our star products in the world, highly popular in cement plant and power generation plant in all of the world.
Meanwhile, we are expertise in Dust Collector desgin, manufacturing and installation.
With many years of experience, Grace Filter is recognized around the world as the leading filtration dust filter bag and dust collection machine producer. Our experience make it possible for us to produce a complete range of filtration felt which meet customer specific filtration requirement. We have made great progress in supplying filter media in the cement industry, waste incinerator industry, power generation industry which make us on of the leading manufacturer and suppliers in the world.
Our professional technical team will provide pre-sales, manufacturing, delivery and after-sales service for dust collector units, dust collector system, baghouse bag filter, our professional installation workers will keep your dust collection system work perfectly and simple
