Product Specifications
| Prod Model: |
GIGE050-RWF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Machine Vision |
Product Description

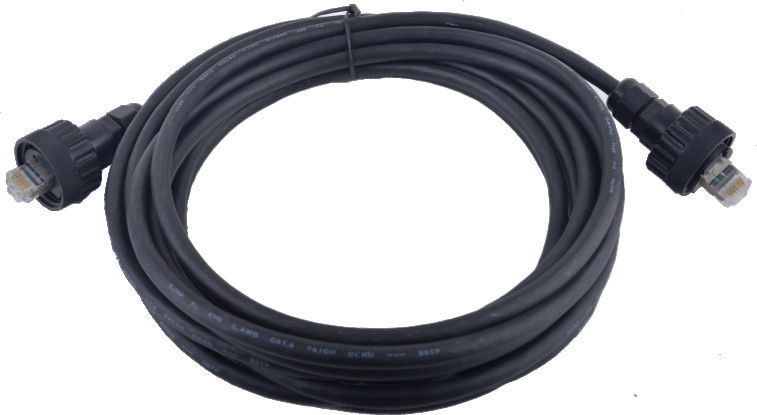

Manufacturer waterproof Ethernet Cable CAT SSTP,RJ45 Plug networking cable
Product Name: Waterproof Ethernet Cable
Application: 100Mhz DATA Transmission
Cable Length: 5 Meters
Interface: RJ45
Connector: Overmolded Rj45
Feature: Industrial Grade
Standard: CE/ROHS/FCC/SGS
Type: Over Molding
Description:
1. OD6.2mm thick
2, 8P8C Short body RJ45 waterproof
3, 1000 MHz cable,high flex and waterproof
4, 26AWG copper .
5, RoHS Compliant.
Application:
Designed for Industrial cameras,imaging frame grabbers,Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other Computer Networking applications
Specifications:
Physical
Cable Color: Black
Connector: Overmolded RJ45
Jacket Material: UL PVC (-20 ~75 )
Shell Material: PVC
Shell Color: Black
Shell Construction: Natural Aluminum / Polyester
Cable construction: SSTP CAT.6 (26AWG*1Pair+AM)*4PCS+Braid,OD6.2MM BLACK PVC JACKED.CSA
Electrical
Insulation Resistance: Min. 100 mega ohms-km DC300V 0.01~0.08Sec
Dielectric Test: Dielectric Strength: AC-500V/1 Min.
Impedance: 33 ± 6 ohms (Common mode at TDR)
110 ± 6 ohms (Differential mode at TDR)
Propagation Delay Skew: Max. 160 ps/4.5m
Propagation Delay: Max.5.05 ns/m
Temperature Rating: - 40 to +80 Celsius degree
Competitive Advantage:
1)- ISO 9001:2008, CE AND ROHS
2)- Monthly Production Capacity -- 100,000pcs
3)- All goods examined before delivery by 10 QC staff
4)- Prompt Response and reply
5)- 5000 square meters work shop area
6)- offer FREE sample for our regular customer
7)- Factory located China
8)- There is no difficult business for us.
9)- OEM SERVICE(FACTORY WITH EXPERIENCED RD DEP.)
10)- GOOD QUALITY,HIGH FLEX,CHAIN FLEX CABLE
11)- SHORT TIME DELIVERY TIME
12)- 1YEAR GUARANTEE.
Our factory are specializing in the Sensor connecting cable, Industrial machine/ equipment cable, Automotive cable, Medical device cable, RF cable, Chainflex cable, high flex bending cable, Waterproof cable and Line test measurement cable and OEM/ODM service. We have experienced R&D team, can design and make the especial cable according to user's requirement.
Company concentrate to the best quality, customer first, high efficiency and low consumption, the sustainable management is the management idea, with stable quality, good reputation, we got all the customer's praise. We will now always pay attention to product quality and enterprise image, in order to offer better service to win the trust of customers.
