Product Specifications
| Prod Model: |
ITX-N29-J1900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printed Circuit Board: |
Six Layer |
| Audio Effects: |
Not HiFi |
| SATA Interface: |
SATA2.0 |
| Main Chipset: |
Intel |
| Structure: |
Mini-ITX |
| Memory: |
DDR3 |
| Integrated Graphics: |
Integrated Graphics |
| Maximum Memory Capacity: |
8G |
| Main Board Structure: |
Integrated |
Product Description

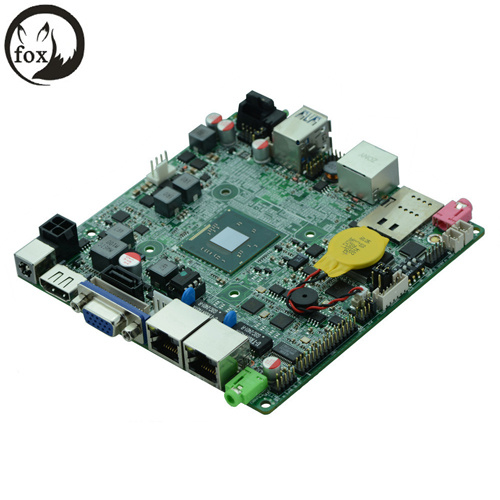

Industrial Mainboard onboard Quad Core J1900 processor 12*12cm NANO-ITX Motherboard
Packaging & Delivery
Packaging Details: Neutral carton box
Delivery Detail: TBA, based on stock condition and order placed
Specifications
Onboard Integrated Intel Celeron J1900 CPU
12*12cm Nano ITX, Intel Bay trail motherboard
1-2 gigabit lan for selection
Industrial Mainboard onboard Quad Core J1900 processor 12*12cm NANO-ITX Motherboard
|
Motherboard No. |
ITX-N29 VER:1.2 |
|
CPU |
Integrated Intel® Celeron Processor J1900 (2M Cache, up to 2.42 GHz) |
|
|
Compatible with Intel® Bay Trail -I/M/D full series CPU |
|
Chipset |
Intel® Bay trail SOC |
|
Memory |
1* SO DDRIII 1066 ,up to 8GB |
|
Display |
Integrated Intel® HD Graphics |
|
|
Support VGA ,HDMI,LVDS(Dual Channel 24bit) |
|
Expansion Slot |
1* Mini-PCIE WIFI/3G |
|
|
1* MSATAIII support SSD |
|
Web |
1* RTL Gigabit lan ,Support wake-on-line ,PXE |
|
|
Can support 2*Gigabit lan,USB1 for another choice. (default :USB1) |
|
Storage |
1* SATA |
|
Audio |
Integrated Realtek HD ALC662 for 6-Channel output,support MIC & Line-out ,Speaker |
|
Front Panel |
1* MIC(Red) |
|
|
1* SIM Card |
|
1* COM(CISCO) |
|
2* USB 3.0 |
|
1* PWRLED HDDLED |
|
1* POWER |
|
Back I/O |
1* 12V DC_JACK Input |
|
|
1* HDMI |
|
|
1* VGA |
|
|
1* LAN |
|
|
1* USB 2.0(Can select LAN2) |
|
|
1* Line-out(Green) |
|
Internal I/O |
1* LVDS 2*15pin , Support Dual Chanel 24bitLCD( dual 8) |
|
|
1* JVGA1 12pin |
|
|
1* RS232 |
|
|
2* USB 2.0 |
|
|
1* PS/2 6Pin |
|
|
1* FP1 2*5pin Front panel buttons and LED connected |
|
|
1* AUDIO Front Audio interface 2*5pin |
|
|
2* Speaker 2pin |
|
|
1* PWROUT (Hard drive power connector) |
|
|
1* ATX 4pin |
|
|
1* LVDS INVERTER |
|
FAN |
1* CPUFAN 4pin |
|
GPIO |
Support 4 way Input & Output GPIO |
|
BIOS |
AMI 32MB Flash ROM |
|
Watch Dog |
Support hardware reset function (L256, 0~255 seconds) |
|
Power |
DC_12V Single power supply |
|
Operating Temp. |
-10C~60C |
|
Storage Temp. |
-40C~80C |
|
Humidity |
5%-95% ( relative humidity; non-condensing) |
|
Size |
120mm x 120mm |
