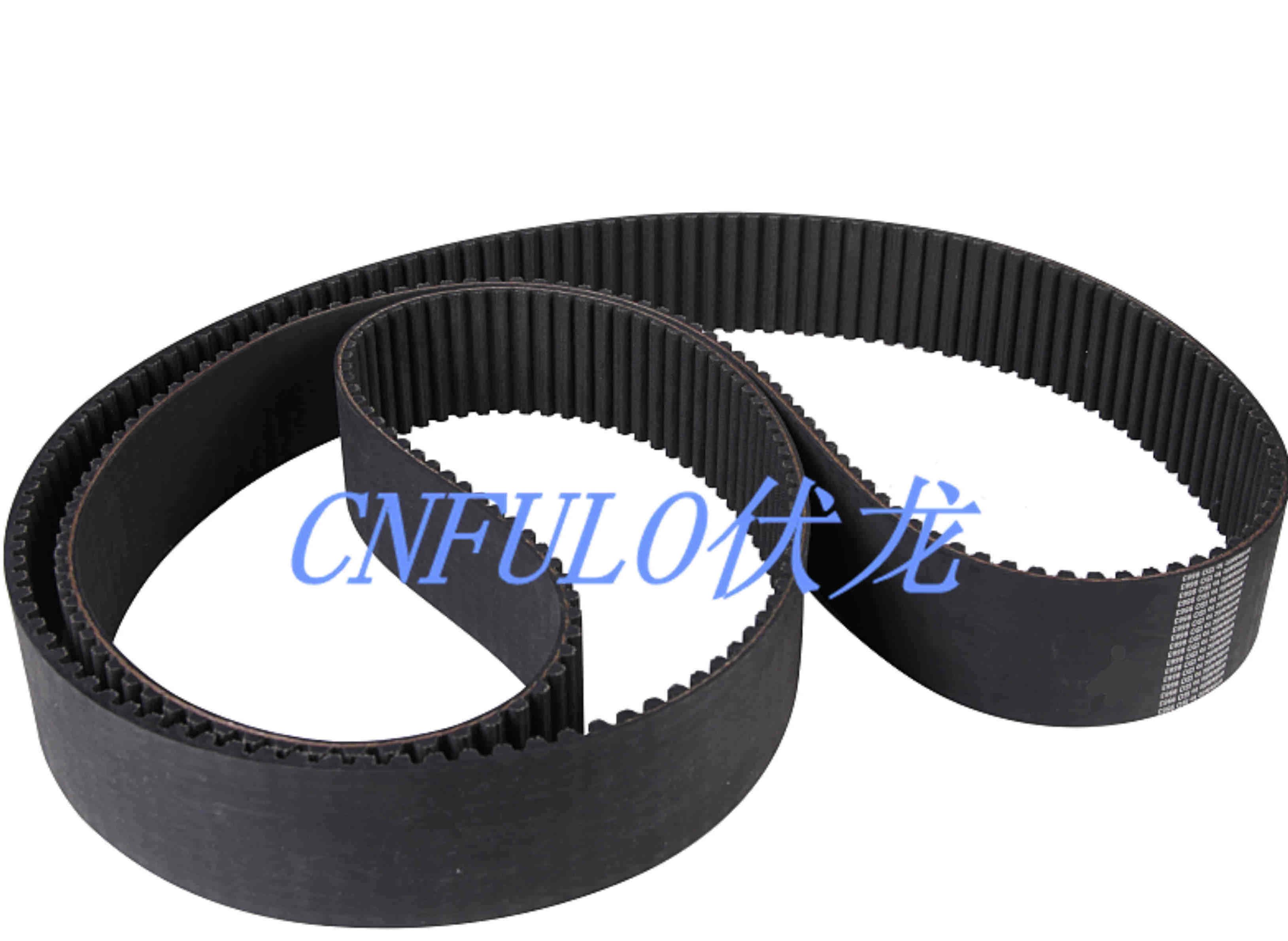

Industrial Rubber Timing Belt, Power Transmission/Texitle/Printer Belt, B372mxl
Product Specifications
| Prod Model: |
B372MXL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industrial Timming Belt: |
Hts/Std/Rpp/T/at/ 2m 3m 4.5m 5m 8m 10m 12m |
| Dedicated Chain Type: |
Industrial Timing Belt |
| Structure (for Chain): |
Roller Chain |
| Leaf Chains Type: |
Reload Bit-Block Drag Chain |
| Detachable Chain Type: |
Works with Steel Sleeve Chains |
| Material Feature: |
Heat Resistant |
| Usage: |
Transmission Chain, Industrial Timing Belt |
| Chain Size: |
Hts/Std/Rpp/T/at/ 2m 3m 4.5m 5m 8m 10m 12m |
| Series: |
Single-Stage |
| Color: |
Solid Color |
| Inside Material: |
Glasscord |
Product Description
Raw materials
Belt: High-quality neoprene (CR)as the main raw materials( imported from Japan)
Skeleton materials: Glass Fiber(imported from Janpan)
Tooth surface: Nylon 66 high
Characteristics
strange anti-cracking properties,
ozone excellent performance,
anti-aging,
heat resistance,
oil resistance,
abrasion-resistant
Features:
With synchronous belt drive is the use of tooth and tooth meshing with the impetus to pass a new type of transmission mode. With accurate synchronous transmission function, do not need lubrication and no slip, no pollution, less noise, transmission efficiency of 0.98, the speed ratio range up to 1: 10, allowing, wire speed up to 50 m / s, the transmission rate from several hundred watts to the hundreds of kilowatts, suitable for multi-axis drive. Neoprene synchronous belt widely used in the textile, automobile, chemical fiber, tobacco, paper, printing, chemical mechanical equipment; In recent years, mining and metallurgy, iron and steel machinery, medical equipment demand is growing.
warehouse of industrial timing belt (ready to be shipped)
T type Industrial Timing Belt
|
| Type | Pitch
Pb (mm) | Tooth height
ht (mm) | Belt thickness
hs (mm) | Angle β ° | Details |
| MXL | 2.032 | 0.51 | 1.14 | 40 | Details |
| XL | 5.080 | 1.27 | 2.30 | 50 | Details |
| L | 9.525 | 1.91 | 3.60 | 40 | Details |
| H | 12.70 | 2.29 | 4.30 | 40 | Details |
| XH | 22.225 | 6.35 | 11.20 | 40 | Details |
| XXH | 31.750 | 9.53 | 15.70 | 40 | Details |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 | Details |
| T5 | 5 | 1.20 | 2.20 | 40 | Details |
| T10 | 10 | 2.50 | 4.50 | 40 | Details |
| T20 | 20 | 5.00 | 8.00 | 40 | Details |
| AT5 | 5 | 1.20 | 2.70 | 50 | Details |
| AT10 | 10 | 2.50 | 5.00 | 50 | Details |
| AT20 | 20 | 5.00 | 8.00 | 50 | Details |
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° | Details |
HTD |
2M | 2 | 0.75 | 1.36 | Details |
| 3M | 3 | 1.17 | 2.4 | Details |
| 5M | 5 | 2.06 | 3.8 | Details |
| 8M | 8 | 3.36 | 6.00 | Details |
| 14M | 14 | 6.02 | 10.00 | Details |
| 20M | 20 | 8.4 | 13.20 | Details |
STPD/STS |
S2M | 2 | 0.76 | 1.36 | Details |
| S3M | 3 | 1.14 | 2.20 | Details |
| S4.5M | 4.5 | 1.71 | 2.81 | Details |
| S5M | 5 | 1.91 | 3.4 | Details |
| S8M | 8 | 3.05 | 5.3 | Details |
| S14M | 14 | 5.3 | 10.2 | Details |
RPP/HPPD |
2M | 2 | 0.76 | 1.36 | Details |
| 3M | 3 | 1.15 | 1.9 | Details |
| 5M | 5 | 1.95 | 3.5 | Details |
| 8M | 8 | 3.2 | 5.5 | Details |
| 14M | 14 | 6.00 | 10 | Details |
Our company was founded in 1984. We have specialized in industrial rubber timing belts, automotive timing belts, variable-speed belts, poly-V belts,
Double-sided timing belts, cutting V-belts, flat belts and pulley with Fulong
Brand. And timing belt and pulley have passed national technical appraisal since 1987. It is currently specialized enterprise in manufacturing timing belt
Series with widest scope, most complete variety and best quality in China.
And yearly production capacity is 8 million all kinds of driving belts and 400 thousand pulley. The products are sold to 30 provinces and thousands of
Companies in domestic, and export to Southeast Asia, Middle East, America,
Japan and other regions. In order to extend our sales and open the marke,
Ningbo Fulong have opened the sales center at Shanghai (Shanghai Fulong Synchronous Belt Co., Ltd) and branched companies at Beijing & Guangzhou
City. We will use Shanghai big city visualize to meet different parts customers
The company covers an area of 45, 000 square meters and the fixed asset is RMB 120million. We have about 500 employee, included 80 technologies and 18 technical experts hired from abroad The company has advanced production equipments, some kinds of testing equipments and instruments. In recent years, we have invested 50 million RMB on a large scale of technical renovation, purchase a number of advanced production and testing equipments and all of
Our main materials are imported from abroad, in order to improve the production capacity, technical level and quality of products.
The company is the national medium-sized enterprise and wins provincial "High-tech Enterprise", "Excellent Enterprise of Technological Progress", "Spark Model Enterprise" and "Management Model Enterprise". Our measuring and archives management are Secondary to the nation, and our credit rating is AAA enterprise.
According to the customers' product technical requirements, our technologies,
On the premise to provide clients with high quality products, we have
Formed a set of perfect and controllable management system from raw materials to finished product output. In order to ensure product quality and long-term stability, we have done the follow works.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 469
Plant Area: 78000 Square Meters
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 11~20 People
Export Year: 1991-01-01
Export Percentage: 41%~50%
Main Markets: North America, South America, Europe, Southeast Asia/ Mideast, East Asia(Japan/ South Korea), Africa, Australia, Domestic
Export Mode: Have Own Export License
Factory Address: Longshan Town, Cixi, Ningbo, Zhejiang, China
R&D Capacity: OEM, Own Brand(CNFULO)
No. of R&D Staff: 5-10 People
No. of Production Lines: Above 10
Annual Output Value: US$10 Million - US$50 Million
