Product Specifications
| Prod Model: |
DB-20A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Screw |
| Lubrication Style: |
Lubricated |
| Mute: |
Not Mute |
| Size: |
1100x800x980 Mm |
| Color: |
Blue or as Your Request |
| Industrial Screw Air Compressor: |
Air Compressor |
| Belt Driven Screw Compressor: |
Screw Air Compressor |
Product Description

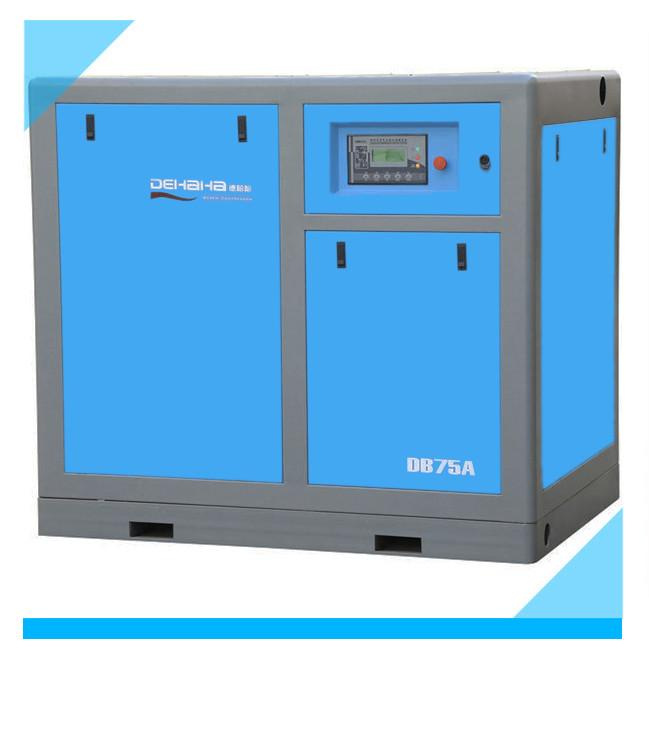

Industrial Screw Air Compressor (15 KW)
1. Double screw
2. German air end
3. Low noise
4. CE certification
Working environment temperature: - 5 ° C ~ 45 ° C;
The exhaust temperature is less than environment temperature about + 10 ° C ~ 15 ° C.
Driving mode: Belt transmission;
Startup mode: Direct start under 11KW, and Y-Δ Start above 11KW;
Work power: 380V / 50Hz, 460V / 230V / 6KV and 10KV voltages can be made for customers;
F. A. D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853).
When our products improve, material may change without notice!
Accept customer's special request type, and less than 1.5 Map models orders.
Startup mode: Direct start under 11KW, and Y-Δ Start above 11KW;
Work power: 380V / 50Hz, 460V / 230V / 6KV and 10KV voltages can be made for customers;
F. A. D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853).
When our products improve, material may change without notice!
Accept customer's special request type, and less than 1.5 Map models orders.
PS: We also supply portable screw compressor and direct screw compressor for customers!
Work
pressure | Air flow Capacity(m3/min) | Power | Noise | Outlet
Diameter | Dimension | Weight |
| MODEL | 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | KW | dB(A) | INCH | W×D×H mm | Kg |
| DB-7.5A | 0.91 | 0.84 | 0.75 | 0.63 | 5.5 | 65 | G3/4" | 780×680×800 | 300 |
| DB-10A | 1.3 | 1.2 | 1.0 | 0.84 | 7.5 | 65 | G3/4" | 780×680×800 | 320 |
| DB-15A | 1.7 | 1.6 | 1.4 | 1.2 | 11 | 65 | G3/4" | 1100×800×980 | 400 |
| DB-20A | 2.4 | 2.3 | 2.0 | 1.6 | 15 | 68 | G3/4" | 1100×8000×980 | 430 |
| DB-25A | 3.0 | 2.9 | 2.7 | 2.3 | 18.5 | 68 | G1" | 1250×870×1180 | 590 |
| DB-30A | 3.7 | 3.6 | 3.2 | 2.8 | 22 | 68 | G1" | 1250×870×1180 | 650 |
| DB-40A | 5.2 | 5.0 | 4.5 | 3.8 | 30 | 69 | G1" | 1250×870×1180 | 750 |
| DB-50A | 6.5 | 6.2 | 5.6 | 4.9 | 37 | 69 | G1 1/2" | 1540×950×1290 | 880 |
| DB-60A | 8.0 | 7.3 | 7.0 | 5.9 | 45 | 70 | G1 1/2" | 1540×950×1290 | 1000 |
| DB-75A/W | 10.1 | 9.5 | 8.7 | 7.8 | 55 | 70 | G2" | 1600×1150×1420 | 1500 |
Shanghai DHH Screw Compressor Co., Ltd is high-tech enterprise, which specialized in the R&D and production and exporting of air compressor system equipment over 15 years experience.
---ISO 9001 and CE TUV certified
---Global competitive price and guaranty
---High quality integrated with Germany technology
---Customers over 20 countries in the world
---Supply OEM (customer's logo) for distributors
DHH always make superior quality screw air compressor because of adopting Germany advanced production technology and European famous brands machine parts for compressors.
Shanghai DHH screw compressor Co., Ltd has an experienced expert team, not only provide users with high-quality and high-efficiency compressed air system equipment, but also provide users with optimum air system solutions during before-sale, sale and after-sale services.
Our products are available in 40 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, France, U. K., Germany, Italy, Spain, Poland, Russia, Ukraine, Australia, U. A. E, Saudi Arabia, Egypt, Thailand, Vietnam, Malaysia, Indonesia, India, Iran, South Africa, Colombia, Mexico, Argentina, Brasil, Chile, etc.
More information about us and our products, please visit our website.
