Product Specifications
| Prod Model: |
6GT- 1.2*10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Model: |
6gt- 1.2*10 |
| Output (T/H): |
1.3-1.5 |
| Power (Kw): |
7.5 |
| Rotating Speed (R/Min): |
3-8 |
| Gradient (%): |
3-5 |
| Air Inlet Temperature (°c): |
Less Than 220 |
| Weight (Kg): |
4500 |
| Raw Material: |
Clay, Wood Chips, Sawdust,Coal Powder |
| Warranty: |
1 Year |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Spraying |
| Heating Mode: |
Transmission |
Product Description
I. FAQ:
Q: Why choose us?
A: We are the professional manufacturer, which has abundant experience of the dryer, also we own research and development team.
Q: I know little for this machine and production line, what should i do?
A: Please tell us your requirement: We will design the flow diagram for you, and further our engineer will designer the whole feed factory for you depend on your site.
Q: Our worker can not know how to operation the production line, what shoud i do?
A: We has installation and after-sale service team, our engineer can go to give customer installation guide. If customer need, our whole engineer team also go to customer's country.
Q: If the machine has a little mistake when produce and can not solve, what should i do?
A: Please contach us immediately, by email, SKYPE, or telphone. Our worker will give you the solution.
Place order or send inquiry we would like to know the following information:
-What kind of material you are going to dry?
-Capacity per hour you need?
-Moisture before and after dry you required?

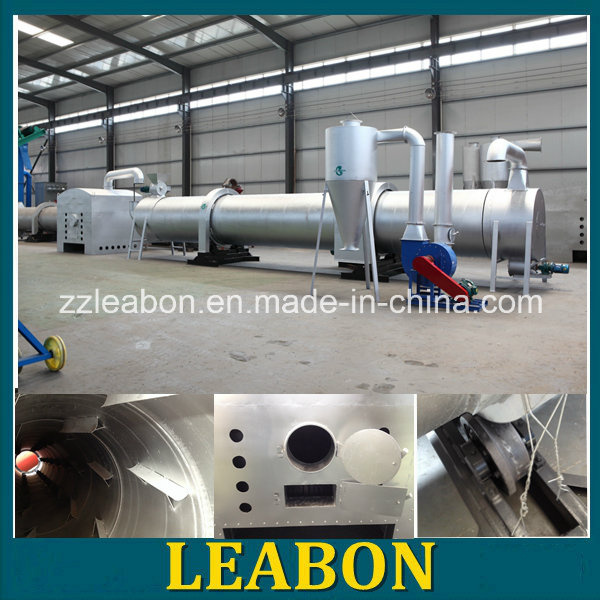

II. What does the rotary dryer machine consists of?
The rotary cyclinder dryer is composed of stove, main rotary body, screw conveyor, cyclone separator, air-lock, fan and matched pipes which can realize to reduce the moisture from 60%-10%
III What's the application of the dryer
The scope of the dryer could be wood chips, wood sawdust, wood shavings, sand, slag, coal powder, mining ore powder, clay, limestone, wood chips and wood powder, annimal dung and so on. And other material with humidity and etc.
IV How does the machine work?
A. The raw material plate is arranged conveniently to allow adjustable angle positions.,
B. The material to be dried is inserted to the rotary cylinder through the raw material plate.
C. Hot air flows through the cylinder causing the separation of water from the material by converting it into vapor,
D. Then the pure vapor will be discharged into atmosphere.
E. As a result, the material becomes dry.
V What' the features of the machine
1. Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage.
2. Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients;
3. Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.
VI After sales service:
A We will teach the user as free
B Our engineer could go to buyers yard to install the machines But all the cost should pay on your sides.
C We can supply the related video and documents as operation book for your reference.
D Also you can come to the factory to test the machine and lean from the engineer how to install and use the machine.
E Regularly return visit to the client during warranty period
|
Model |
Gradient
(%) |
Rotating Speed
(r/min) |
Power
(kw) |
Output
(t/h) |
Air inlet
temperature
(°C) |
Weight
(kg) |
|
6GT- 0.6×6 |
3-5 |
3-8 |
3 |
0.1-0.2 |
≤220 |
1700 |
|
6GT- 0.8×8 |
4 |
0.3-0.4 |
2500 |
|
6GT- 0.8×10 |
4 |
0.5-0.7 |
3000 |
|
6GT- 1.0×10 |
5.5 |
0.9-1.1 |
3500 |
|
6GT- 1.2×10 |
7.5 |
1.3-1.5 |
4500 |
|
6GT- 1.2×12 |
11 |
1.5-1.7 |
5300 |
|
6GT-1.5×12 |
2-6 |
15 |
2-2.5 |
7500 |
|
6GT- 1.8×12 |
18 |
3-3.5 |
10000 |
