Product Specifications
| Prod Model: |
various |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Shape: |
Circular, Square |
| Length: |
Standard or Designed as Requirements |
| Number Of Use: |
100 Times |
| Reusability: |
Yes |
| Material: |
Natural Rubber |
| Usage: |
Culvert Construction |
Product Description
Description

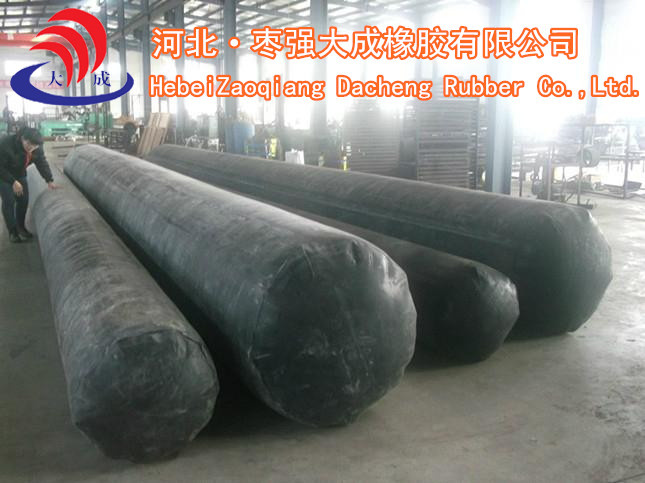

Pneumatic rubber mandrel is a kind of cylinder bag that can expand, shrink, used to form concrete component of cavity.
Performance characteristic
1. Design scientific and reasonable used inflatable rubber mandrel, or casting parts, finished product can meet the requirement of design, easy operation, save time, save material.
2. Have good ageing resistance performance and long service life this product use synthetic rubber ,natural rubber and strengthen layer vulcanize, Has very good resistance to bulge, flexibility and elasticity so can satisfy all sorts of work in the conditions of use.
3. Widely applicable temperature, within the scope -10ºC-+90ºC of the material without change .
4. For building light-duty construction provides favorable conditions to stress hollow concrete. Component, due to the rubber mandrel ,the weight than use stress solid component light 20%,so it can reducing the weight of the upper structure of building .can make the pipe foundation short. increase span, make the construction become simple and safety.
5. construction technology is simple ,safe, health, use it only need a few simple tools, without special process.
Technical parameters of Culvert formwork inflatable mandrel
| Items | Index |
| Terence of Thickness, mm | 3.2±0.2 |
| Hardness(Shore A) | 65±5 |
| Adhesive tension of rubber and fabric,N/25mm | ≥8 |
| Tensile strength, MPa | ≥12 |
| Elongation at break, % | ≥350 |
| 300% Stretch set length, MPa | 6 |
| Stretch for deformation ratio | ≤20 %(Prevent distortion) |
| Suitable temperature,°C | -10~80 |
Appearance | No cracks, no bubbles on the surface, the length of impuritiestrace is not more than 3mm,
the depth is not more than 1.5mm, and quantity of the trace is not more than one.
The deformation is not more than 2mm. |
Application
It can substitute the wooden or steel mandrel used for pouring the hollow of large reinforced concrete structure. It is widely used in bridge construction, irrigation works and tunnels.
Zaoqiang Dacheng Rubber, a manufacturing company built in the year 1996, Located in Northern of China. In 2005, Zaoqiang dacheng Rubber Company mergersed with Fezhed Rubber technology company and other construction products producing companies to become a strong grouped company, which takes important part in standards correcting and the construction manufacturing area in China and part of the company is listed in the year 2012.
Our main products include: Bridge and Road Construction products as various elastomeric bearings, bridge pot bearings, spherical bearings, bridge flexible equipment; Seismic isolation as lead rubber bearings, high damping rubber bearings, steel type seismic bearings, waterproofing products as various waterstops, etc. We also in the area of pipeline solution products manufacturing.
These products contain 10 series with over 200 species and more than 2, 000 specifications. We can offer high quality products, competitive price and timely service for every client. Our products are successively used by many famous companies, and they were exported to 18 countries, including Canada, German, USA, Russia and so on.
Guaranteeing the product quality is our company's basic principle, Our Belief is Work once, Trust all lives!
