Product Specifications
| Prod Model: |
ALF-02 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
DC12 ~ 18V |
| Working Current: |
65mA Max |
| Case Material: |
Aluminium Alloy |
| Dimension: |
380*35*43mm |
| Certification: |
CE,FCC,RoHS,IP55 |
| Type: |
Anti-Theft Alarm |
| Application: |
Outdoor |
| Signal Transmission: |
Wired Alarm |
| Working Mode: |
Active |
| Sensor Type: |
Infrared Alarm System |
| Usage: |
Window |
| Working Principle: |
Infrared Beam |
Product Description

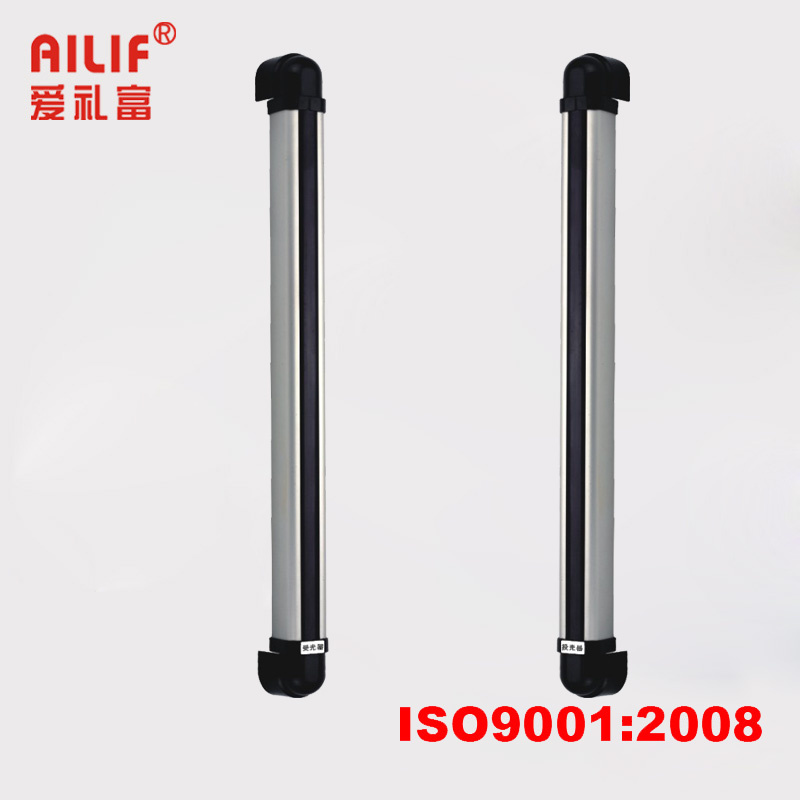

Infrared Fence Alarm For Security System with CE, FCC, ROHS, IP55 certification
2 beams, 4 beams, 6 beams, 8 beams, 10beams optional, alarm distance from 5-60 meters available.
The fence can be used outdoor totally, can prevent false alarm effectively.
Main Features:
1. With high-grade aluminium alloy enclosure and the selected components, and good overall stability, high reliability, strong anti-jamming capability.
2. Suitable for different occasions to use, compatible with any brand alarm mainframe.
3. With rainproof, fogproof, snowproof, all day outdoor use.
4. Avoid demolition, cut and mobile, double beam recognition principle effectively prevent the small animals, birds and other small objects to cause false alarm.
5.360 degrees stepless rotation, realizing fast precise focus, unique terminals, installation debugging convenient and quick.
6. High sensitivity, prevent alert distance three gears can be adjusted, AGC circuit design.
7. Wiring easy to adjust, alignment or not have buzzer sound instructions.
Our Advantage:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality is our long term target.
Company Introduction:
(1)Having our own factory which provides you the most competitive price.
(2)CE, FCC, ROHS, IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information.
|
Model: |
ALF-2 |
|
Alert distance: |
5m-60m |
|
Beam: |
2 |
|
Induction speed: |
40ms |
|
Alarm Output: |
wired and wireless compatible |
|
Ganged Alarm: |
Yes |
|
Working voltage: |
DC12 ~ 18V |
|
Working current: |
65mA MAX |
|
Relay contact capacity: |
3A/125V AC/DC 9V 0.2W |
|
Humidity: |
5%-95% (RH) |
|
Tamper output contact output: |
DC30V/3A MAX |
|
Horizontal angle adjustment: |
180 ° (± 90 ° ) |
|
Case Material: |
Aluminum + PC |
|
Dimensions: |
380*35*43MM |
SHENZHEN BOS AILIF SECURITY TECHNOLOGY DEVELOPMENT Co., Ltd was established in 2003, which specialized in investment, international trade, R & D and production of electronic products as an integrated high-tech modern enterprises.
Our main products are: Series of infrared alarm and CCTV monitoring series and fire alarm systems. The main components are adopted with Sony, Philips, TI and other top world brands, thus lays a solid foundation to quality of the goods. All of our products are strictly accordance with ISO9001 quality system, and passed through a number of international quality certification.
Our facotry covers 4, 000 square meters and with 230 skilled employees, we have four production assembly lines, two automatic high-speed SMT placement lines, monthly production capacity of more than 190, 000 units.
Our subsidiary company, Shenzhen AILIfU Security Equipment Technology Development Co., Ltd. Has a group of high-quality R & D team, which brings together several well-known experts of Institute of the electronics industry, they have rich R & D experience and technical strength in anti-theft alarm and closed circuit television and other products.
Our electronic products in the world-famous street-Huaqiang North (SEG - Huaqiang electronics market) share the market of over 50%, and more than 30% in China. We have opened several offices and agents in diffrent regions of China, our products have been exported to Italy, Britain, Mexico, Brazil and other 21 countries and regions.
Our products has been on sale for eight years and have been accepted by the buyers in China, they are widely used in government, military, especially in the "Green City Project".
Looking at the world, our Board of Directors have decided to start foreign trade business from 2011. We believe that with the vast resources of the company, especially standing at the giant' shoulders- Made in Chinaon, and with our comprehensive after-sale service system, we believe there are always some kind of products will be suitable for you!
We can accept OEM\ ODM business. Welcome new and old customers to visit our factory and we are looking forward to establish long-term business relationship with customers from all over the world.
