Enping Jinjue Electronic Co., Ltd. >> Infrared Wireless Microphone (IR-380)

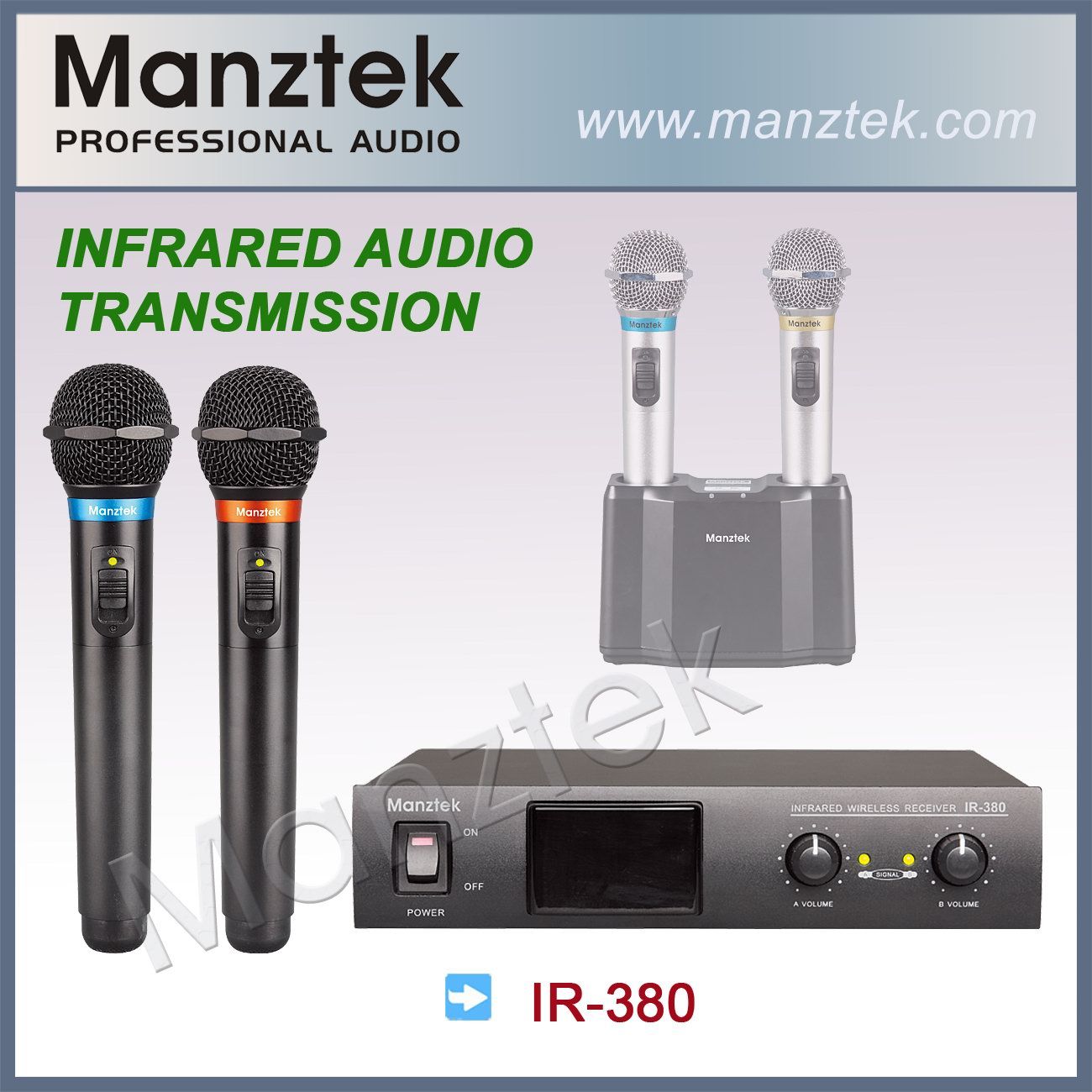

Infrared Wireless Microphone (IR-380)

Name: Infrared Wireless Microphone (IR-380)
Brand: china-manufacturer-directory.com
SKU: 619365824
Availability: InStock
Rating: 4.7 (59 reviews)

Supplier:	Enping Jinjue Electronic Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	IR-380
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Signal Transmission:	Wireless
Application:	Meeting
Directivity:	Uni-direction
Transducer Principle:	Electrodynamic Microphone
Sound Field Force:	Pressure Type

Product Description

Highlighted features
Special design for KTV features (built-in IR sensor)
Maximum 3 X high efficiency IR sensors for larger working range (up to 200 m² )
Smart battery recharger for handheld transmitter

IR-380 SYSTEM SPECIFICATIONS
Modulated Mode	(IR) Frequency Modulated
Carrier Frequency	CHA 2.06 MHz, CHB 2.56 MHz
Audio Frequency Response	50Hz-15KHz ± 3dB
Deviation	± 40Hz
S/N Ratio	> 85dB
Dynamic Range	98dB
T. H. D.	< 1%
Carrier Stability	± 0.005% (-10º C-50º C)
Channels	2 Channels
Output Voltage	400mv
Working Range	> 100M² (15m line of sight )
Power Supply	12V DC
Receiver Size	1/2 19" EIA Standard 1-Rack Unit
Receiver Weight	1300g


PENDANT TRANSMITTER(IR-360H)
Sound Cartridge	Uni-directional Dynamic
Carrier Frequency	2.06 MHz / 2.56MHz
Battery	2 x AA Size
Battery Duration	7 Hrs(Lo Output)/4 Hrs(Hi Output)
Transmitter Size	(Head)50 X(L)245mm
Transmitter Weight	280g
Recharging Time	5 Hrs (2000mAh, Ni-Mh rechargeable battery)

We are the leading audio equipment manufacturer in CHINA, has engaged in the line of producing professional wired and wireless microphone systems since 1996. It's also the leading manufacturer in China possessing superb 'IR Series' microphone based on advanced 'Infrared Audio Wireless Transmission Technology', which has led Manztek to become an indispensable supplier of IR wireless microphone system on the market of Asia & U. S. A. since 2007.

Locating her plant of 10, 000 SQMs area with over 200 staff members in Enping China, Manztek chiefly consists of R&D, manufacturing and marketing departments. The company has been so far insisting on precise designing, standardization of production procedures and considerate service, which have enabled Manztek to enjoy compliment from the high-end demanding customers all over the world.

Keeping to principle of 'Never Sacrificing Quality For Quick Profits', the manufacturing of Manztek achieved 'ISO9001: 2000' Certifications in 2004 and most of the products achieved 'CE', 'R&TTE', 'FCC' and 'ROHS' Certifications. For years, Manztek has successfully cooperated with many famous companies all over the world. However 'Keeping Constant and Effective Improvement', will be our firm and perpetual faith.
