Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tank Size: |
1450*720*730 Mm |
| Ultrasonic Power: |
7.2kw |
| Heating Power: |
18kw |
| Voltage: |
380V or Optional |
| Application: |
Auto-Maintenance, Industrial Ultrasonic Clean |
| Ultrasonic Direction: |
Three Sides |
| Timing: |
0-999 Minutes |
| Material: |
SUS304, Coil |
| Function: |
Remove Oil Sludge Bur Carbon |
| Product: |
Injector Cleaning Machine |
| Certification: |
CE, ISO |
Product Description

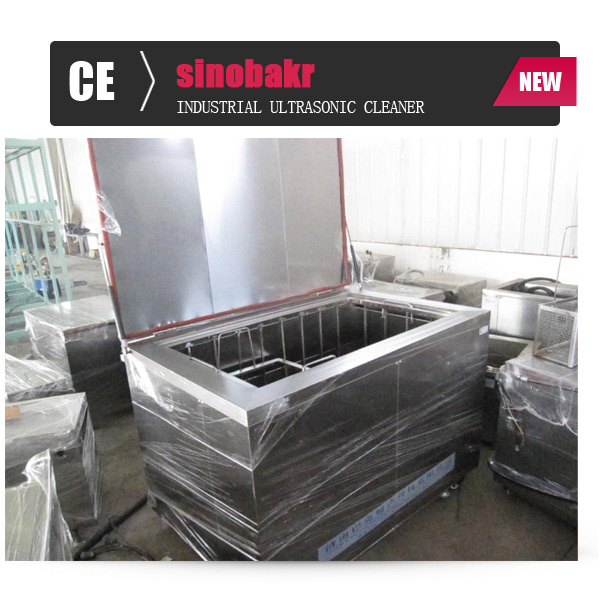

Injector cleaning machine
Jinan Bakr Ultrasonic Technology co., ltd is a new hi-tech enterprise professionally integrating with R & D, manufacturing, and sales of ultrasonic cleaning equipment. The products include single-tank and multi-tank ultrasonic cleaning equipment and all kinds of semi-automatic and full-automatic ultrasonic cleaning line. They have passed the ISO9001certification and CE certification. The products widely apply to all kinds of automobile repair and maintenance, engine parts, oil dump and rostra, optical glass, electronic, pharmaceutical, chemical fiber, hardware, machinery cleaning, praised by users.
In the past few years, we have passed the ISO9001certification and CE certification. Our products were not only sold to different regions in China but also exported inlarge number to places all over the world such as Japan, Thailand, Malaysia, Indonesia, Turkey, Syria, India, Pakistan, Brazil, Mexcio, USA, Russia, European countries, Canada, etc. They were all well received by all our customers.
Injector cleaning machine advantage
1. Original German CeramTec transducer, it's 100 one piece, above 95% output ultrasonic power
2. Clear circuit, top quality 304SS 2mm-thick made for tank body, cover and base
3. Digital timer and heating control, Adjustable frequency
4.304 Stainless steel basket, with 500kgs load weight
5. Powerful transducer, clear circuit, auto water level control inspection
6. High-power integrated module Siemens, resistant above 80° C temperature
7. High efficiency and keep cleaning parts precision
8. Unique design, Dregs and overflow device, Pneumatic cover, wheel
9. Chemical filter recycling system can be add according to your requirement
10. Cleanness-degree high, no damage to the clean objects surface
11. Quickly and stable cleaning, low breakdown, good quality with factory price, professional testing
12. Provide a set of free spare parts
|
Model |
BK-120 |
BK-900 |
BKU-1800 |
BK-1800 |
BK-2400 |
BK3600 |
BK-4800 |
BK-6000 |
BK-7200 |
BK-10000
|
BK-12000 |
|
Ultrasonic Power |
120W |
900W |
1.8KW |
1.8KW |
2.8KW |
3.6KW |
5.2KW |
7.2KW |
8.0KW |
10.8KW |
21.6KW |
|
Heating Power |
none |
1KW |
4KW |
4KW |
6KW |
9KW |
12KW |
15KW |
18KW |
20KW or steam |
32KW or steam |
|
Voltage |
220V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
Tank Size(mm)
(length× width× height) |
240x140x100 |
400x300x300 |
700x400x350 |
600x480x450 |
750x550x480 |
1000x550x560 |
1200x650x650 |
1450x720x730 |
1500x800x800 |
1700x900x800 |
2200x1200x1000 |
Product Size(mm)
(length× width× height) |
400x300x350 |
560x460x600 |
1000x750x700 |
760x770x680 |
910x850x770 |
1160x850x870 |
1400x1030x980 |
1650x1190x1100 |
1700x1280x1150 |
1960x1450x1150 |
2500x1800x1350 |
|
Ultrasonic direction |
Down side |
Down side |
Down side |
Three sides |
Three sides |
Three sides |
Three sides |
Three sides |
Three sides |
Three sides |
Three sides |
|
Dregs tank |
have |
have |
have |
have |
have |
have |
have |
have |
have |
have |
have |
|
Overflow device |
none |
none |
none |
have |
have |
have |
have |
have |
have |
have |
have |
Jinan Bakr Ultrasonic Technology Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of ultrasonic cleaning equipment. We are located in Jinan city, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering an area of 400, 000 square meters, we now have over 200 employees and an annual sales figure that exceeds USD8, 000, 000. We are currently exporting 60% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 & CE certifications.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Japan, Korea, Taiwan area, Thailand, Malaysia, Indonesia, Turkey, Syria, India, Pakistan, Brazil, Mexico, the USA, Europe, Canada, etc.
If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
