Inline Acrylic Flow Meter Lzm-G
Product Specifications
| Prod Model: |
LZM-G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mount: |
Panel Mount |
| Sensor: |
Plug-in |
| Type: |
Volume Type Flow Meter |
| Accuracy: |
>?à1% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
| Size: |
DN10-50 |
| Main Application: |
Nature Gas |
Product Description

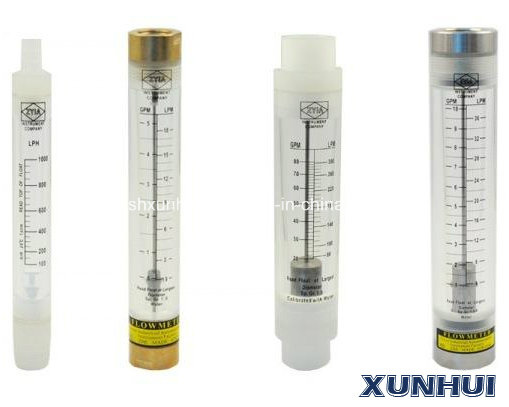

Inline acrylic flow meter LZM-G
Float
1. ABS
2. Polypropylene
3. PVC
4. Brass
5. Brass chromeplate
6. Stainless steel
Float material:
1. Stainless steel
O-ring
1. Silicone rubber
2. Fluorin rubber
|
Model |
Measure range |
Connect port |
Accuracy |
Product dimension |
|
GPM |
LPM |
Nm3/h |
A |
B |
C |
|
LZM-10G |
- |
5-45LPH
6-60LPH
10-100lph
16-160lph |
|
G1/2" |
+ 4% |
210 |
180 |
32 |
|
LZM-15G |
0.1-1 0.2-2 0.5-5 1.5-9 |
0.5-4
1-7
1.8-18
400-2000
(LPH) |
0.8-8
1-10
1.6-16
2.5-25
4-40 |
G1/2" |
|
LZM-20G |
1-10 |
4-36
100-1000LPH |
6-60 |
G3/4" |
278 |
236 |
45 |
|
LZM25G LZM40G |
1-10
1-15
2-20
5-30
5-40
5-45
20-60 |
4-36
5-60
10-70
20-100
20-150
20-170
80-220 |
6-60
10-100
15-140
16-160
25-250
35-350
80-400 |
25G:
G1"
40G:
G1 1/2" |
265 |
235 |
51 |
|
306 |
235 |
51 |
|
LZM50G |
20-80
20-100
40-120
50-150
60-200 |
80-300
80-360
150-450
190-560
220-750 |
100-500 |
G2" |
380 |
270 |
75 |
