Product Specifications
| Prod Model: |
XZG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Heating Mode: |
Transmission |
| Movement Way: |
Combined |
| Structure: |

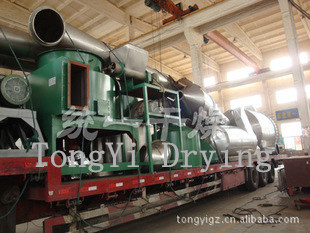

Revolving Flash Vaporization Dryer |
| Appearance Of Dried Sample: |
Powder |
Product Description
The working principle
Hot air tangent into the dry bottom, in the rotation of the mixer driven to form a strong wind. Paste material by a spiral feeder into the dryer, under the strong function of the high-speed rotating impeller, the material by the impact, friction, and dispersion under the action of shear force which block material quickly shattered, and a good contact with the hot air, heat, and dry. After dehydration dry material rising with the heat flow, grading ring will be big particle entrapment, small particles from the ring center discharge outside the dryer, the cyclone separator and dust recovery, not dry or large materials subjected to centrifugal force to jilt to the wall, fall to the bottom of the shattered dry again.
characteristics
1, cyclone, fluidization, spray and the organic combination of grinding classification technology.
2, the equipment is compact, small volume, high efficiency, continuous production, has been realized
3, "small equipment, large production".
4, large intensity of drying, low energy consumption, high thermal efficiency.
5, short residence time, material, finished products are of good quality and can be used for drying thermal sensitive material.
6, negative pressure or negative pressure operation, good sealing, high efficiency and eliminate the pollution of the environment.
Adaptive material
Organic matter: atrazine (pesticides), lauric acid, benzoic acid, benzoic acid,sterilization, Dan,Sodium oxalate, cellulose acetate, organic pigments, etc.
Dyestuff: anthraquinone, black ferric oxide, indigo blue pigment, butyric acid, titanium hydroxide, zinc sulfide, all kinds of accidentally Azo dyes intermediates.
Inorganic: borax, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, All kinds of metallic hydroxide, all kinds of heavy metal salt, synthetic cryolite and so on.
Food: soy protein, starch gel, wine trough, wheat, sugar, wheat starch and so on.
