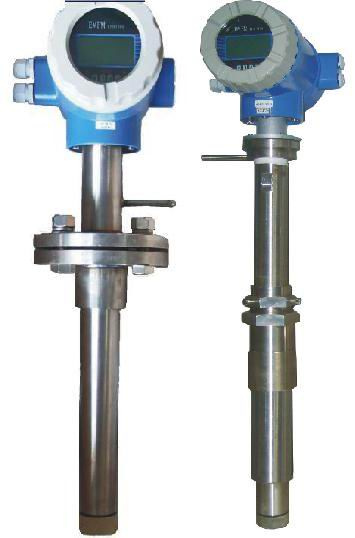

Insertion Electromagnetic Flow Meter (EFM-100E)

Insertion Electromagnetic Flow Meter (EFM-100E)
Supplier: Xiuyan Precision Instrument Factory
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: EFM-100E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Range: Dn200--Dn1600
Repeatability: 0.1%
Flowrate: 0.3---12m/S
Accuracy: ±0.2-0.5%
Sensor: Plug-in
Type: Volume Type Flow Meter
Measuring Media: Liquid

Product Description

1. Insertion Electromagnetic flow meter
2. Accuracy: 0.5%
3. Size: DN300-DN2000
4. Protection grad: IP67 or IP68
5.4-20mA, RS485/RS232, Hart, Pulse
                                         The Specifications of  Electromagnetic Flow meter
Measuring fluid Conductive fluid
Accuracy 0.5%
Repeatability 0.06%, 0.1%
Temperature range of fluid -25---180 C
Rated pressure DN200--DN1000: 1.0Mpa, DN1100--DN2000: 0.6Mpa,       DN2200--DN3200: 0.25Mpa
Flowrate range of media 0.3---12m/s
Conductivity   ≥ 1μ   s/cm, ≥ 5μ   s/cm
Electrode material 316SS, Hastelloy alloy B, Hastelloy alloy C, titanium, platinum dissolution, tungsten carbide, etc.
Number of electrode Electrodes(standard)
Lining materials Chloroprene rubber, PTFE F4, FEP copolymer F46, polyurethane rubber
Flange material of bulk 304SS, 20# carbon steel and other materials (special orders)
Installation forms Holder-style (≤ DN300), flange connected (≤ DN350)
Protection grade IP67, IP68
Power supply of converter 220V± 20%, 60 HZ/ 24VDC (opional frome the two)
Signal output Standard: pulse, and 4--20mA. Hart protocol and MODERBUS protocol are optional. RS485
Structural form Integrative type  and splite type(with 15m standard cables)
Power consumption 0.65W
Working environment Environmental temperature: -25---60oC, humidity: 0.5%--90%
Disply interface of converter LCD and operation interfaces entirely in English that are able to display instantaneous flow, cumulative flow, and multiple flow units can be selected.
Xiuyan precision instrument factory was founded in 1958 October incorporated the collective enterprises. Company is located in "city of jade " -- Xiuyan, picturesque scenery, pleasant environment, convenient transportation.
Enterprise covers an area of 12000 square meters, construction area of 3000 square meters, the registered capital of 1260000 Yuan, the existing staff of 86 people, including 16 technical staff, management staff of 10 people, technical secondary school or above the staff accounted for the total number of employees 78%. Company has strong technical strength, perfect technology, scientific management, enterprises manufacture the main products include Electromagnetic flowmeter, Target flowmeter, Ultrasonic flowmeter, Ultrasonic level meter, Magnetic level meter, Turbine flowmeter, Vortex flowmeter, ect. Enterprise product marketing the whole country, has been used in petroleum, chemical, power, papermaking, brewing, pharmaceutical ect. field of the automatic control system of industrial processes, especially in the petroleum, chemical industry to create own brand. Enterprises has actively expanded the overseas market, has a variety of instruments are exported to Malaysia, Italy, Australia, Zambia, Turkey, America, Brazil, and other countries. At present, the enterprise has passed ISO9001--2000 international quality system certification, report to the Liaoning provincial Science and Technology Agency awarded the High-tech Enterprises. Company for three consecutive years was awarded the "Civilized Unit" title by the Anshan municipal Party committee and municipal government.
Since the company was founded more than 40 years, the joint efforts of leaders and staff, base on the entrepreneurial spirit of " rigorous, pragmatic, efficient, and trustworthy ", adhere to the " quality of products, service first for the customer ", the pursuit of continuous innovation and development, to let the user rest assured, comfortable, happy.
