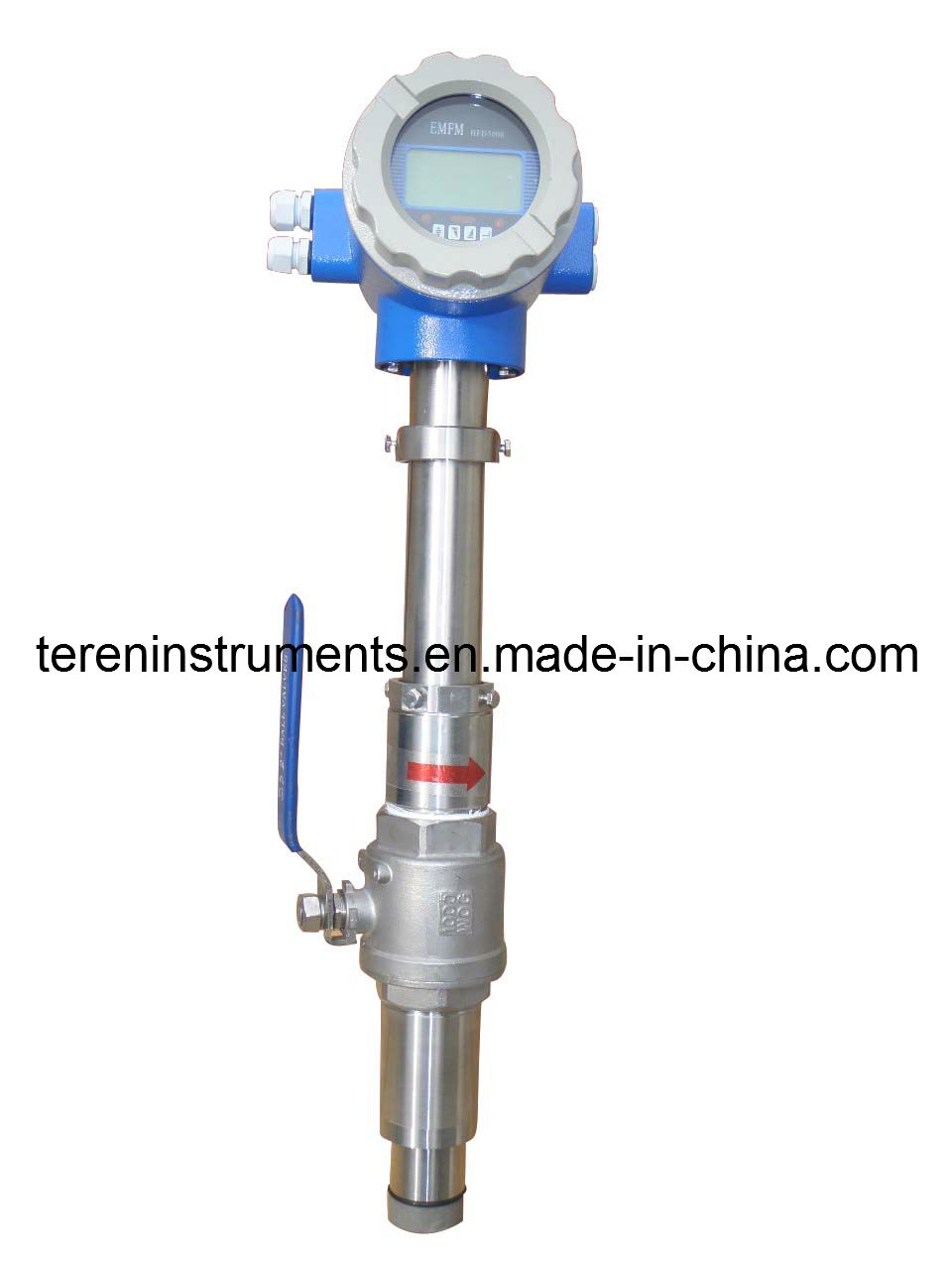

Insertion Electromagnetic Flow Meter (KKF-8820)

Name: Insertion Electromagnetic Flow Meter (KKF-8820)
Brand: china-manufacturer-directory.com
SKU: 677975922
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 600-1300/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Insertion Electromagnetic flowmeter
1)without pressure loss
2)tight structure
3)wide flow, high accuracy
4)CE certificate

Insertion Electromagnetic flowmeter
Product feature:
1 easily to install, won't cutoff, can open pore on the spot, have absolutely install and price advantage
2 can be used to maesure water, sewage, acid, alkali which the electric conductivity ≥ 5 µ S/cm, the change of electric conductivity cna't impact property, espically USD for measuring the drainage pipeline
3 no mechanical movable parts, adopt optimization design, tight structure, can change teh flow range freely(0.5m/s-10m/s)
4 strong anti-interference ability, almost undisturbed
5 have self-diagnosis function, convenient to maintenance
6 Automatic switching measuring range
7 alarm
8 Power-off protection, the result and parameter won't be loss when power-off
9 it has many kinds off protect class and install methods of translator and sensor, can adapt dive install and IP68

Item	Parameter
Measuring range	127~254340 m 3 /h
Flow range	0.1~10m/s
Diameter	300~3000mm
Accuracy class	0.5~10m/s: ± 1.5% FS
	0.1~0.5m/s: ± 2.0% FS
	0.1~10m/s: ± 2.5% FS
Conductivity	> 5 µ s/cm
S traight length	Front 5DN Behind 3DN
Medium temperature	-20 ° C ~+130 ° C
Operating temperature	-20 ° C ~+60 ° C
Press	1.6MPa
Protect class	IP65( unibody ) IP68( separated type )
Electrode material	316L stainless steel
Output single	4-20mA; RS485; HART protocol; Modbus protocol
Sensor material	stainless steel
Working power	220 VAC, allow 15% error or 24VDC, ripple ≤ 5%

Prod Model:	KKF-8820
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Kkf-8820
Measuring Range:	127~2254340(M3/H)
Flow Range:	0.1-10m/S
Press:	1.6mpa
Protect Class:	IP65 & IP68
Electrodes Material:	316L Stainless Steel
Seneor Material:	Stainless Steel
Sensor:	Tube/Flange
Type:	Electromagnetic Flow Meter
Accuracy:	≤±0.1%
Measuring Media:	Liquid
Principle:	Impulse-type
Measuring Principle:	Electrical Principles
Size:	15-6000mm
