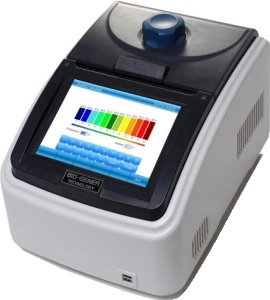

Instrument for DNA Testing Machine High Quality Smart Gradient PCR
| Price: |
US $ 4999/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
GE4832T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ge9611t |
| Item: |
Thermal Cycler (PCR) |
Product Description
PCR Instrument for DNA testing machine High quality smart gradient pcr
DESCRIPTION
This series product adopts 8 pieces custom-made US Marlow peltier, Max. ramping rate 5ºC, cycle times >600000. More advanced technologies applied on the product: Windows operating system; color touch-screen; double blocks can run independently; replaceable block; control by PC function; print function; extra large data storage and USB interfaces. All the above functions make it demand high need experiments.
Key Features
1). Each thermal block has 4 independent temperature control sensors and 8 peltier heating units to ensure accurate and uniform temperature across block surface, and provide users with replicating previous condition set-up.
2). 8" TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
3). The actual and target temperatures can be viewed and displayed graphically in real time.
4). Built-in 11 standard program file template, can quickly edit the required files.
5). Internal flash memory for 10000 typical PCR files in free configurable folders.
6). Automatic restart after power failure.
7). Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.
8). Applicable with the following 0.2ml tube models: non-skirted, semi and fully skirted plated.
9). Replaceable module, the choice of a dual-block module can simultaneously run two different PCR programs.
Model |
GE9611T/6021T/4851T/
4831T/3841T
General |
GE9612T/6022T/4852T/
4832T/3842T
Gradient |
Capacity |
96×0.2ml , 60×0.5ml , Double 48×0.2ml ,
48×0.2ml+30×0.5ml,384well , In-situ Plate |
Temperature Range |
0~100ºC |
Max. Heating Rate |
5ºC/s |
Max. Cooling Rate |
4ºC/s |
Uniformity |
≤±0.2ºC |
Accuracy |
≤±0.1ºC |
Display Resolution |
0.1ºC |
Temperature Control |
Block\Tube |
Ramping Rate Adjustable |
0.1~5ºC |
Gradient Uniformity |
/ |
≤±0.2ºC |
Gradient Accuracy |
/ |
≤±0.2ºC |
Gradient Temp. Range |
/ |
30~100ºC |
Gradient Spread |
/ |
1~30ºC |
Hot Lid Temperature |
30~110ºC |
Hot Lid Height Adjustable |
Stepless Adjustable |
Number of Programs |
10000 +(USB FLASH) |
Max. No. of Step |
30 |
Max. No. of Cycle |
99 |
Time Increment/Decrement |
1 Sec ~ 9 Min 59 Sec |
Temp. Increment/Decrement |
0.1~9.9ºC |
Pause Function |
Yes |
Auto Data Protection |
Yes |
Hold at 4ºC |
Forever |
Print |
Yes |
LAN to computer |
Yes |
LCD |
8inch,800×600 Pixels, TFT |
Communication |
USB2.0 , LAN |
Dimensions |
380mm×240mm×260mm (L×W×H) |
Weight |
8.5kg |
Power Supply |
85~264VAC , 47~63Hz , 600 W
|
