Usoon Holdings Inc. Limited >> Insulated Copper Pipe for Air Conditioner Part

Insulated Copper Pipe for Air Conditioner Part

Name: Insulated Copper Pipe for Air Conditioner Part
Brand: China-Manufacturer-Directory.com
SKU: 743677965
Availability: InStock
Rating: 4.6 (98 reviews)

Supplier:	Usoon Holdings Inc. Limited
Price:	Negotiable/Piece
Min Order:	500/Roll
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Shape:	Round
Application:	Oil Cooler Pipe
Alloy:	Non-alloy
Certification:	RoHS
Grade:	TP2
State:	Soft
Customized:	Customized
Color:	Red
Type:	Insulated Pipe
Standard:	JIS, ASTM, an, En

Product Description

Product name: Insulated Copper pipe
Item:   copper tube / copper tubes / copper tubing / copper piping / copper coil / pipe coil

Details:

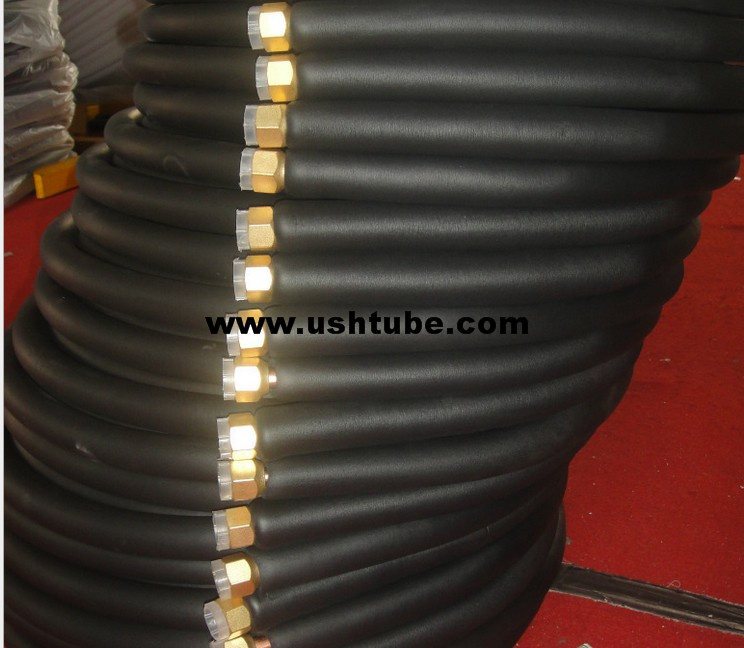

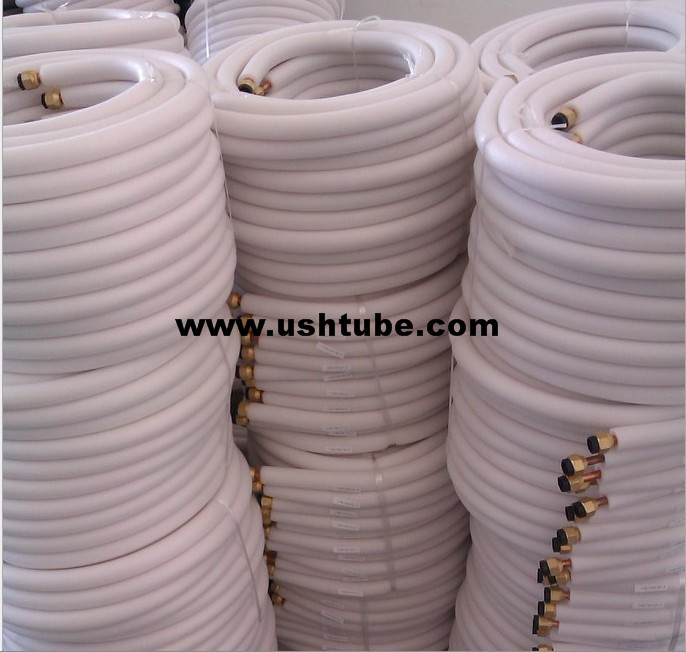

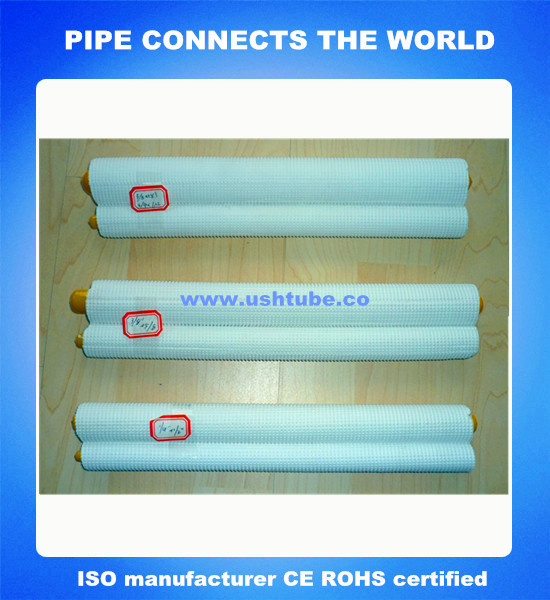

1, Pre Insulated copper pipe for HVAC&R industry
Pre Insulated copper pipe  is good for Anti-UV, heat resistance, low water absorption,be mainly used for installation of Air Conditioner,multi-splits central air-conditioning,heat exchanger,refrigeration applications etc. the copper tubing inside of the insulation is compatible for R410A,R407C,R404A,R507 and R22 refrigerants.Pre Insulated copper pipe does not need onsite pipe insulation,and the length of the pipe can be cut on site according to requirements.  As an energy efficient and environmentally friendly material, it is widely use in HVAC&R systems.
Main material: Pure copper pipe,white / black polyethylene foam insulation pipe, rubber insulation pipe
Directory:  Pre Insulated Pair copper pipe coils, Pre Insulated single copper pipe coils,Pre Insulated straight copper pipe
Production Standard: ASTM B280, AS 1571,JISH3300 and EN 12735.
Copper pipe : 99.99%

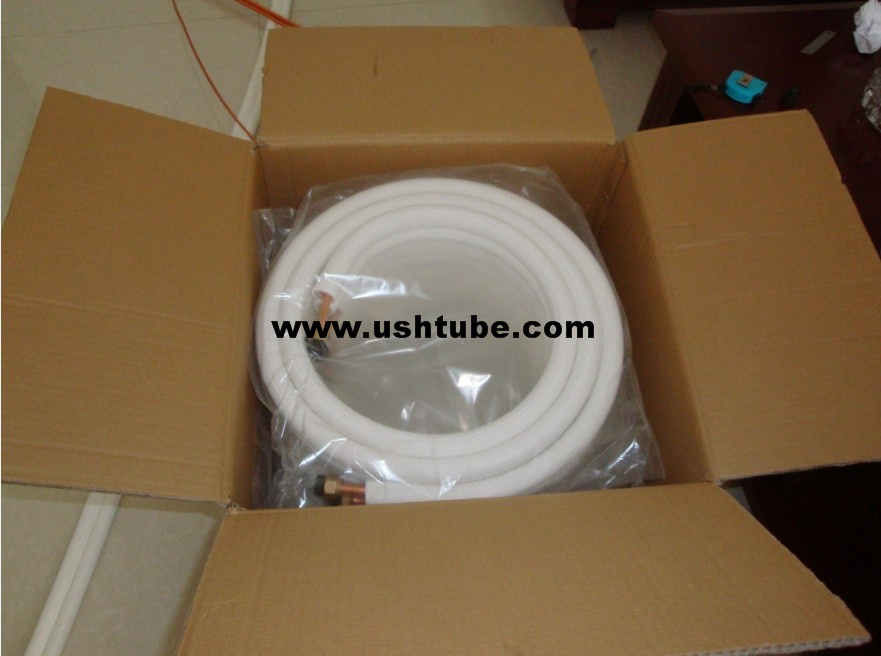

Package: Each end capped sealed by plastic bag, and packed by carton box of 1-2 rolls, usually we suggest our clients load by FCL without cartons for loading more coils

Item	Size(Inch)	Copper tube Thick	Heat Preservation pipe Thickness	Length	Package
Flaring insulated pipe	1/4" -3/8"	0.8/0.8mm	8mm or 10mm	3.5.7.10.15M	Coil
	1/4" -1/2"	0.8/0.8mm	8mm or 10mm	3.5.7.10.15M	Coil
	1/4" -5/8"	0.8/1.0mm	8mm or 10mm	3.5.7.10.15M	Coil
	3/8" -1/2"	0.8/0.8mm	8mm or 10mm	3.5.7.10.15M	Coil
	3/8" -5/8"	0.8/1.0mm	8mm or 10mm	3.5.7.10.15M	Coil
	3/8" -3/4"	0.8/1.0mm	8mm or 10mm	3.5.7.10.15M	Coil

Item	Size(Inch)	Copper tube Thick	Heat Preservation pipe Thickness	Length	Package
Single Insulated pipe	1/4"	0.8mm	8mm or 10mm	< =50M	Coil
	3/8"	0.8mm	8mm or 10mm	< =50M	Coil
	1/2"	0.8mm	8mm or 10mm	< =50M	Coil
	5/8"	1.0mm	8mm or 10mm	< =30M	Coil
	3/4"	1.0mm	8mm or 10mm	< =30M	Coil
	7/8"	1.0mm	8mm or 10mm	< =25M	Coil

Item	Size(Inch)	Copper tube Thick	Heat Preservation pipe Thickness	Length	Package
Pair Insulated pipe	1/4" -3/8"	0.8/0.8mm	8mm or 10mm	< =30M	Coil
	1/4" -1/2"	0.8/0.8mm	8mm or 10mm	< =30M	Coil
	1/4" -5/8"	0.8/1.0mm	8mm or 10mm	< =30M	Coil
	3/8" -1/2"	0.8/0.8mm	8mm or 10mm	< =30M	Coil
	3/8" -5/8"	0.8/1.0mm	8mm or 10mm	< =30M	Coil
	3/8" -3/4"	0.8/1.0mm	8mm or 10mm	< =30M	Coil

Item	Size(Inch)	Copper tube Thick	Heat Preservation pipe Thickness	Length	Package
VRV Systerm Straight Insulated copper tube	1/4"	0.8mm	15mm or 20mm	< =20M	Length
	3/8"	0.80mm	15mm or 20mm	< =20M	Length
	1/2"	0.80	15mm or 20mm	< =20M	Length
	5/8"	1.00	15mm or 20mm	< =20M	Length
	3/4"	1.20	15mm or 20mm	< =20M	Length
	7/8"	1.20	15mm or 20mm	< =20M	Length
	1"	1.35	15mm or 20mm	4M	Length
	1-1/8"	1.50	15mm or 20mm	4M	Length
	1-1/4"	1.70	15mm or 20mm	4M	Length
	1-3/8"	1.85	15mm or 20mm	4M	Length
	1-1/2"	2.00	15mm or 20mm	4M	Length
	1-5/8"	2.15	15mm or 20mm	4M	Length
	1-3/4"	2.30	15mm or 20mm	4M	Length
	2"	2.65	15mm or 20mm	4M	Length
	1-1/8"	2.80	15mm or 20mm	4M	Length

Pipe connects the world

With the strength to connect and move our lives

U. S. H is always there for you

USOON HOLDINGS INC was born in maintance and supply full range of HVAC/R equipments and parts. With Established Strategic Cooperation with Haier and Haiercarrier, we set up our own copper tube factory, all kinds of copper tubes and copper tube fittings are manufacturered acoording to ISO and our own standardization management system.

WE PRODUCE:

Copper tube: LWC copper tube, IGT copper tube, Pancake copper tube coils, Straight copper tube, Capillary copper tube, Insulated copper tube etc

Copper fittings: Copper bend, copper tee, copper elbow, copper tubing assembly for ACR etc

Aluminum pipe: LWC aluminum pipe, IGT aluminum pipe, Pancake aluminum coils, Straight aluminum pipe, resin coating aluminum pipe etc

WE SERVICE:

Evaporator, Condenser, Bondy tube, Aluminum Foil, copper rod etc

U. S. H was contribute to improve the products quality and customer satisfaction since we established. Our staff of sales and technical support is available to help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation. At USH, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction

U. S. H devote ourselves to be a professional supplier in HVACR fields.
