Product Specifications
Product Description

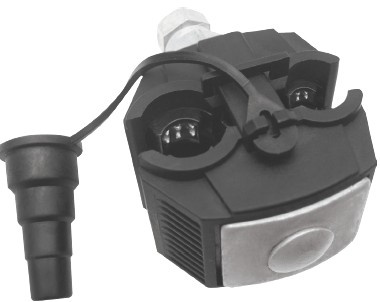

Insulated Piercing Connector (JBC) 10KV
Application of IPC JBC(10kv)
IPC JBC series 1KV is applied to the lateral lead connection which is educed from the main lead in the insulated conductor in the sky. Or it is applied to the contact between two different anti-tensile stress section.
Specification
For more details, pls visit our website.
|
JBC-1.5~25/1.5~10 |
1.5~25/1.5~10 |
|
JBC-16~95/4~35 |
16~95/4~35 |
|
JBC-25~95/25~95 |
25~95/25~95 |
|
JBC-50~150/6~35 |
50~150/6~35 |
|
JBC-50~150/50~150 |
50~150/50~150 |
|
JBC-95~240/95~240 |
95~240/95~240 |
|
JBC-120~240/25~120 |
120~240/25~120 |
|
JBC-16~70/16~70 |
16~70/16~70 |
|
JBC-50~120/16~50 |
50~120/16~50 |
|
JBC-50~120/50~120 |
50~120/50~120 |
|
JBC-120~240/70~120 |
120~240/70~120 |
|
Catalog No |
Main Wire |
Branch Wire |
Bolt No. |
Torque(N. m) |
|
JBC-10-1 |
25-50mm2 |
25-50mm2 |
2 |
30 |
|
JBC-10- |
70-120mm2 |
25-50mm2 |
2 |
30 |
|
JBC-10-1 |
70-120mm2 |
70-120mm2 |
2 |
30 |
|
JBC-10-1 |
150-240mm2 |
70-120mm2 |
2 |
30 |
|
JBC-10-1 |
150-240mm2 |
150-240mm2 |
2 |
30 |
|
JBC-10-1 |
150-240mm2 |
25-50mm2 |
2 |
30 |
