Product Specifications
| Prod Model: |
JT05/06/01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Butyl Extruder Machine: |
butyl sealant machine |
| Insulating Glass Butyl Coating Machine: |
insulating glass coating machine |
| Double Glazing Glass Machine: |
glass machine |
| Type: |
Glass Coating Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description

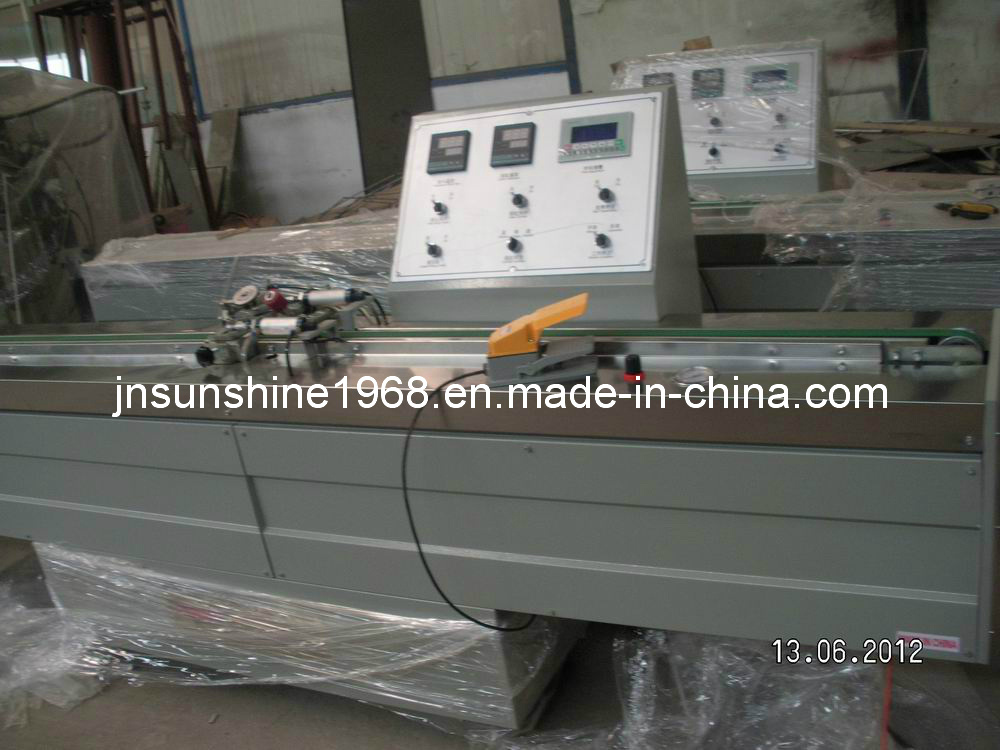

Insulating glass butyl extruder machine, insulating glass butyl sealant machine, butyl sealant filling machine, insulating glass coating machine, insulating glass machine, double glass machine, glass machine
1. Description:
It is more stable and energy-saving with the most advanced domestic technology.
It is more easy to operate with the man-machine interface display screen.
Heating time can be set up within 96 hours.
Speed can be changed in the scope of 0-28m/min.
Alarming system is set when the sealant has been exhausted so the operator can fill in the sealant in time.
The latex spout can be change within 6-20mm according to the width and thickness of the alum-space-frame.
Working table can be changed in a certain scope.
The squeezing cylinder can turn back and forth freely.
2. Main Technical Parameters:
Power voltage: 380VAC
Power rate: 1.25KW
Squeeze pressure: 8-20Mpa
Latex coating temperature: 120-140 centigrade
Work speed: 0-28m/min
LateX spout adjustable: 6-20mm
Air pressure: 0.5-0.8Mpa
3. Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.
Package: Each PC in wooden cases.
Port of Loading: Qingdao, China
Delivery Time: During 20 days after we receive your first payment
4. Contact information:
Mobile number: 0086-13964014791 Lisa
Since established the company, relying on its mighty real development strenght, advanced management mode, and excellent officers and workers, becomes gradually the professional enterprise with the produces, profession management, sale and after-sales services in a whole. Now our equipments has been exported to many foreign countries. New generation alumi doors and windows that company develops and research concentrates on the industrial development in building materials in Chinese chemistry, can produce the every kind of products with such good functions as elegant appearance, varied colors, soundproof, watertightness and etc. And it can satisfy aluminum and pve doors and windows and insulating glass machine's building requests, improved the Chinese living environment.
