Product Specifications
| Prod Model: |
BX1600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
380V |
| Electrice Power: |
9.7kw |
| Max.Washing Size: |
2200mm |
| Transmil Speed: |
2-13m/Min |
| Max Glass Thickness: |
<=50mm |
| Outside Dimension: |
2750X2250X1100mm |
| Brush: |
2 Pairs |
| Water DIP Rolls: |
2 Pairs |
| Air Knoves: |
2pairs |
| Washing Thickness: |
Adjustable |
Product Description
1. Product Description

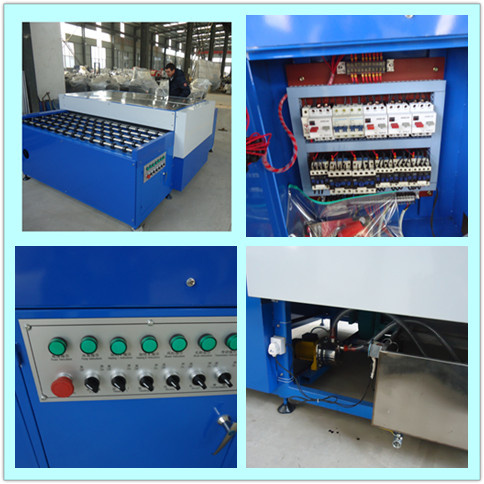

1). The machine is the highly efficient glass washing machine and can be used to wash and
Dry glass before manufacture of double glazing glass to ensure clean glass surface.
2). The machine adopts horizontal construction, and feeding, washing, drying and discharge
Can be operated continuously.
3). The automatic conveyor can realize performances and easy-adaptability.
4). It is an ideal economical and practical equipment for manufacturing doubleglazing glass
And the first choice equipment for glass processing industry.
5). We also has model BX1800, BX2200, BX2500, if your glass size is larger than the model BX1600(1600mm Width*2400mm Length), you can consider to choose the other models. If you have specific parameters and requirements for our glass washing machine, customization is available!
6). Features:
A. Three pair of brushes is well known for its fine quality and durable in use. They can wash Low-E glass.
B. The electric elements adopt Schneider brand(France), and other famous brand.
2. Kindly note
You can choose the model BX1600, and add a heating and roller machine, these two machines can replace the vertical production line, and add the above accessary machines, such as butyl extruder machine, alu-spacer cutting saw, two component coating machine, rotary coating machine, glass finishing machine, then constitutes the horizontal type production line.
3. Main technical parameters
| Model number | BX1600 |
| Power supply | 380V/50Hz |
| Total power | 9.7kw |
| Clean out speed | 0.5 ~ 5 m/min |
| Max. work speed | 5 m/min |
| Max. glass size | 2400× 1600mm |
| Min. glass size | 300× 200 mm |
| Clean out glass thickness | 3-25mm |
| Overall dimensions | 2850× 2050× 1100mm |
| Total weight(about) | 1000kg |
Jinan Better Machinery Co., Ltd. is a large scale enterprise specializing in research, development and production of equipment for plastic doors and windows, equipment for aluminum doors and windows and fabrication equipment for hollow glass.
Our guide principle is "Lead in Development, Strive for Quality, Live to Serve". Our company also developed three series of one hundred kinds of products to satisfy not only the demand of quality and scale but also the individuality designing and manufacture.
With the complete scientific facilities and technical center, export center, network center and training center in professional energy-saving machine for doors and windows, our company wins good fame and our products are sold well in domestic market and also far to Russia, Ukraine, Ethiopia, the United States, and Mongolia.
Depending on research ability, our employees continuously improve the quality of products and customer service. Welcome to visitor our company for business negotiations.
