Product Specifications
| Prod Model: |
JT05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Insulating Glass Production Line |
| Certification: |
ISO |

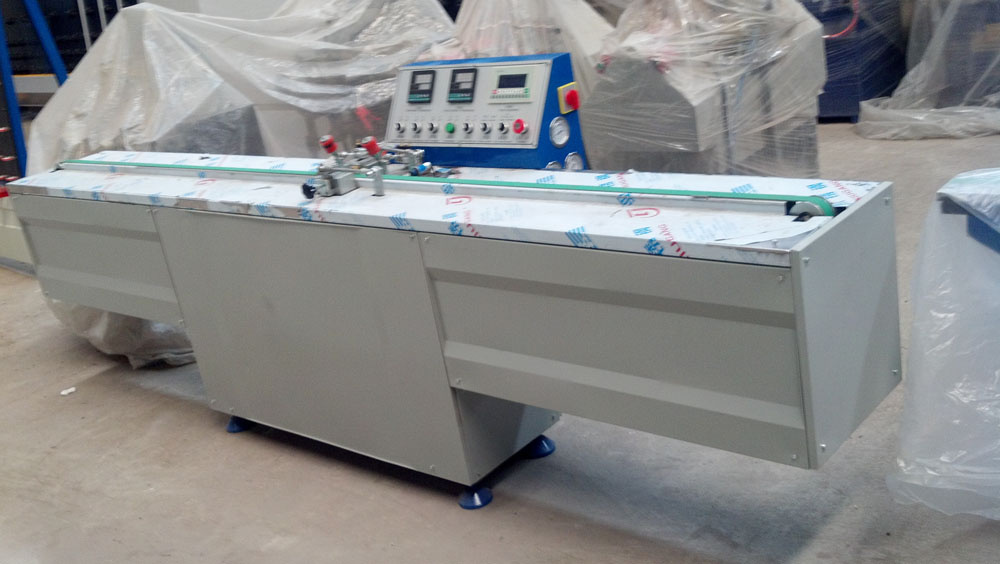

Product Description
Introduction
1. Hydraulic system made the machine more stable and more advanced.
2. Main electrical elements (transducer, PLC, screen and so on) all adopt the famous brands imported from abroad or domestic brand.
3. Working table is made of stainless steel by CNC bending, hard to deform and easy to clean.
4. It is easier to operate with the man-machine interface display screen.
5. The glue nozzle can be adjusted within 6-20mm according to the width and the thickness of the aluminum-space-frame.
6. Advanced device guarantees the best spreading effect on the arc aluminum frame.
7. It needs 30 minutes of heating time to heat the butyl first.
Technique parameter
Power supply: 380V/50Hz
Total power: 1.89kw
Transmit speed: 0-35m/min
Temperature: 100-160 degree centigrade
Air pressure: 0.6-0.8mpa
Squeeze pressure: 12-16mpa
Adjustable range: 6-16mm
Air consumption: 50L/min
Dimension: 3000*700*1236mm
Total weight: 800kg
Guarantee & Aftersales service
1. Guarantee the complete machine for one year, except the consumable parts.
2.24hour technical support by email or calling.
3. User-friendly English manual for machine using and maintaining.
Remarks
1. Pkg: Each PC In Wooden Cases
2. Terms: Freight On Board (FOB, Qingdao Port
3. From Qingdao, China To_______,
4. Delivery Time: During 30 Days After We Receive Your First Payment
5. Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and the rest 70% is effected while delivering the goods
6. Our Trademark: SUNNY
Contact information
Jinan Sunny Machinery Co., Ltd.
Address: Zone3, xiaoluzhuang Industrial Park, Tianqiao Area, Jinan Shandong, China
Mobile: 0086-15063343341
Awen Yin
If you have any questions, please don't hesitate to contact me.
Main parts:
Name | Brand | Remark |
| PLC | Omron | Japan |
| Convertor | Omron | Japan |
| Relay | Muller | Germany |
| Electric parts | Omron | Japan |
| Air cylinder | Airtac | Taiwan |
| Air pipe | Ashun | Taiwan |
Since established the company, relying on its mighty real development strenght, advanced management mode, and excellent officers and workers, becomes gradually the professional enterprise with the produces, profession management, sale and after-sales services in a whole. Now our equipments has been exported to many foreign countries. New generation alumi doors and windows that company develops and research concentrates on the industrial development in building materials in Chinese chemistry, can produce the every kind of products with such good functions as elegant appearance, varied colors, soundproof, watertightness and etc. And it can satisfy aluminum and pve doors and windows and insulating glass machine's building requests, improved the Chinese living environment.
