Insulating Glass Processing Machine
1.Product Description

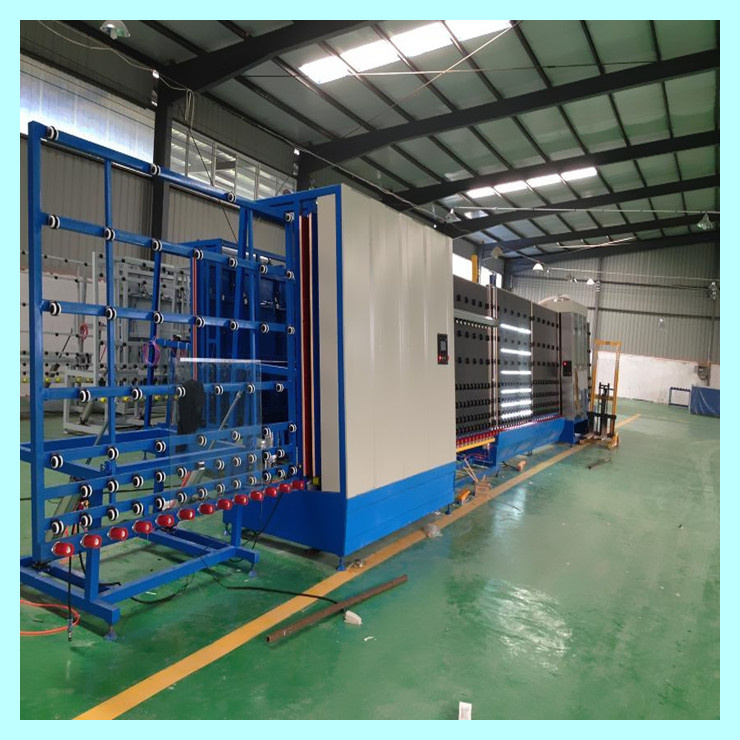

This Insulating Glass Machine is composed of glass loading section, washing and drying section, and light inspection section, spacer bar attaching section, out-panel assembly section, panel press section and lifting table.
1).The line is special equipment making aluminum groove type insulating glass.
2).It can perform main functions such as washing and drying of insulating glass, positioning of aluminum frames, automatic one on one by flat press, setting level and shifting out of insulating glass and so on in the process of making aluminum groove type insulating glass.
3).This line is high in efficiency, low in energy consumption, compact in structure and easy to operate.
4).Features:
A. Washing part is with 3 pairs(6 pieces) washing brushes. Three pair of brushes is well known for its fine quality and durable in use. They can wash Low-E glass.
B. Automatically distinguish the coating side of coated glass and Low-E glass.
C. Adopt waterproof bearing without oil lubricant.
D. The washing body adopts stainless steel and anti-rusting materials.
E. The PLC and other electric elements adopt OMRON brand, import from Japan.
5).It can process the common glass, coated glass,low-E glass,etc..
6).We have models LB1600P,LB1800P,LB2200P,LB2500P, here the model LB1800P is the common model for the max.glass size is 2500*1800mm(Length*Height), if your glass ma.size is smaller or larger than the model LB1800P, you can choose other models according to your true glass size.
Kindly note: if cosider the quality and price together, our company is a good choice to you.
2.Technical parameters
Model number |
LB1800P |
Power voltage |
380V/50Hz |
Total power |
23.07Kw |
Min glass size(L*H) |
400*200mm |
Max glass size(L*H) |
2500*1800mm |
Max.Insulating glass thickness |
50mm |
Max. thickness of insulating glass |
3mm-25mm |
Working speed |
Max. in washing section 12m/min |
Max. in accelerator 48m/min |
Brush |
3pairs (LOW-E) |
Overall dimensions |
15300×2200×2800mm |
Net weight |
6000kg |
