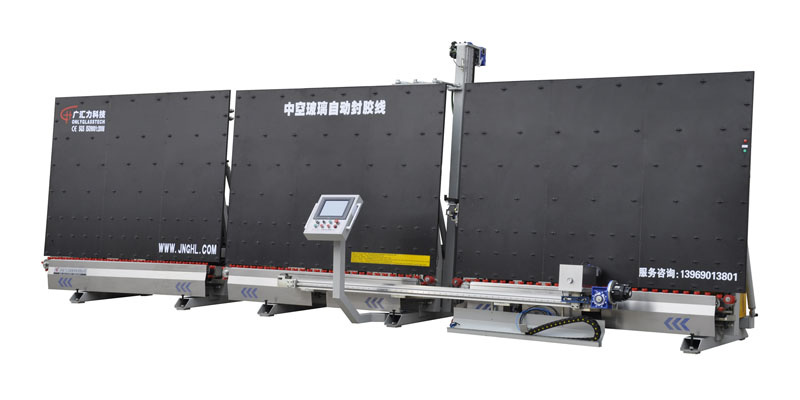

Product Specifications
| Prod Model: |
ZNJ1800/2500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Full Automatic |
Product Description
1. The machine is suitable for glass deep processing enterprise, high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface, the operation is convenient and easy.
3. After coating sealant, the glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast, in one-button operation easily (Model II)
5. The third section can pre-store glass to improve the efficiency effectively
6. Servo control system adopts world famous brand (Japan Yaskawa), the performance is stable
7. Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning.
8. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean
9. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
10. Suitable for triple glazing.
|
Model |
Voltage Power |
Air Pressure |
Extruding pressure |
Max.Glass size |
Min.Glass size |
Glass thickness |
Working speed |
Overall dimension |
|
ZNJ1800-I |
380V 12KW |
0.5~0.7Mpa |
32Mpa |
1800*2500mm |
300*300mm |
12~56mm |
5~40m/min |
8500*1500*2700mm |
|
ZNJ1800-II |
380V 12KW |
0.5~0.7Mpa |
32Mpa |
1800*2500mm |
300*300mm |
12~56mm |
5~40m/min |
8500*1500*2700mm |
|
ZNJ2500-I |
380V 13KW |
0.5~0.7Mpa |
32Mpa |
2500*4000mm |
300*300mm |
12~56mm |
5~40m/min |
10800*1500*3300mm |
|
ZNJ2500-II |
380V 13KW |
0.5~0.7Mpa |
32Mpa |
2500*4000mm |
300*300mm |
12~56mm |
5~40m/min |
10800*1500*3300mm |
Jinan Guanghuili Application Technology Co., Ltd., founded in 2003, specializes in developing and manufacturing insulating glass machines. Including glass cutting machine, glass edging machine insulating glass production line, butyl extruder machine, aluminium spacer cutting saw, aluminium spacer bending machine, inert gas filling machine, bi-component sealant extruder machine, sealant spreading table, drying agent filling machine etc. Each kind machine has different models to meet different demands of different customers. Our products sell well at home and abroad, and some are exported to Europe, America, Middle-east and Southeast Asia and get good reputation. Guanghuili has possessed a 90% share in the domestic market.
Guanghuili has its own machining process center and machine assembling plant with highly qualified technicians. Our years of experience and constant technical innovation have resulted in high quality machines. Our machines are capable of meeting a variety of production needs. Each project is handled uniquely and is customized according to each customer's individual situation. We will always provide you with amazing service and high-quality products. We are sincerely looking forward to your cooperation with us for mutual benefits
" We look forward to becoming your long-term and credible partner.
