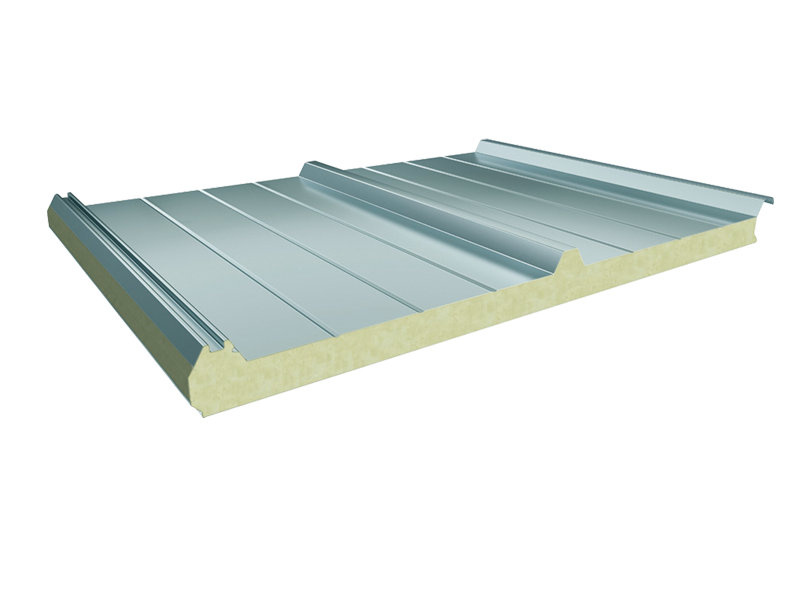

Aluminum Composite Roof Tile Used Polyurethane as Core Material
I. What's the Polyurethane?
PUR product make the raw material ratio and output by most modern technology of Six components online automatic operation mixed casting. Realize continuous foaming in six month for the first time in domestic, could get one-time mix proportioning process and can adjust the formula according to the environmental changes, combined with gas mixing device, make raw material mixed more evenly, the bubble is more delicate, so as to produce high strength, energy saving green construction board.
II. Product Features
1) Overcome the effect of cold and hot bridge
2) Double seal waterproof design, good air tightness
3) Hidden installation screw
4) Dry hanging installation, high efficiency
5) Applies for old building reconstruction, the application of texture effect
6) Weather resistance, long life (double protection)
7) Self clean, reduce maintenance costs
8) Fireproof performance, external wall fireproof system
III. Technical Parameter
Surface Treatment | Flat, Embossment |
Exterior Pattern | Small Ripple ,Groove, Square Wave, Flat |
Interior Pattern | Square Wave |
Dimension(mm) | Width | 1000 |
Length | 2500≤L≤18000 |
Thickness | 33 50 75 100 |
Steel Thickness (mm) | Exterior Steel | 0.5-0.8 |
Interior Steel | 0.4-0.5 |
Steel Coating | Fluorocarbon Type, Stainless, High Weather Resistant Polyester(Coating≥20um) |
Core Material | PU(Polyurethane) | PIR(Polyisocyanurate) |
Core Material Density | 40-43 | 45-50 |
Core Material Heat Conductivity Coefficient | 0.022 | 0.02 |
Closed Porosity | ≥97 | ≥97 |
Flame Retardant Property | B1 | A- |
Material Features of External Wall Panel |
Surface Texture | Mini Floor Embossed * Flat |
Specification (mm) | Standard width | 1000 |
Other Width | 900-1000 |
Length | ≤18000 |
Other Overall Thickness | 40,50,60,75,80,100,120,150,200 |
Surface Material (mm) | Outer Face | 0.4-0.8 |
inner Face | 03-0.7 |
Joint Width (mm) | Horizontal | 10mm,20mm |
Vertical | (Decorative Fasteners) 30mm |
Core Material | PUR | PIR |
Mean Density of Core Material (kg/m3) | 40 | 45 |
Thermal Conductivity (w/mk) | 0.021 | 0.021 |
IV. WP-50/75/100 Allowable Vertical Load, Span And Heat Transfer Coefficient
Thickness Model | (/) Steel Thickness (Exterior-Interior) |
|
|
|
| Heat Conductivity Coefficient | Panel Weight |
| P=Kg/ | 60 | 80 | 100 | 120 | 150 | P=Kg/ | 60 | 80 | 100 | 120 | 150 |
WP-MS50 | 0.45+0.5 0.5+0.5 0.5+0.6 0.5+0.7 0.5+0.8 | L=m | 3.9 | 3.65 | 3.4 | 3.1 | 2.75 | L=m | 3.45 | 3.2 | 2.95 | 2.75 | 2.4 | 0.41 | 10.53 10.95 11.89 12.83 13.77 |
WP-MS75 | 0.45+0.5 0.5+0.5 0.5+0.6 0.5+0.7 0.5+0.8 | L=m | 5.0 | 4.65 | 4.25 | 3.9 | 3.35 | L=m | 4.3 | 4.0 | 3.7 | 3.35 | 2.9 | 0.27 | 11.55 11.98 12.92 13.86 14.80 |
WP-MS100 | 0.45+0.5 0.5+0.5 0.5+0.6 0.5+0.7 0.5+0.8 | L=m | 5.6 | 5.2 | 4.5 | 4.3 | 3.65 | L=m | 4.8 | 4.45 | 4.1 | 3.65 | 3.2 | 0.21 | 12.53 12.95 13.98 14.92 15.86 |
Allowable Wind Load of External Wall Panel System |
|
Span(mm) | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | 3200 | 3400 | 3600 | 3800 | 4000 |
|
Load (kg/) | Single | 6.35 | 5.72 | 4.65 | 3.84 | 3.20 | 2.70 | 2.29 | 1.97 | 1.69 | 1.46 | 1.27 | 1.11 | 0.98 | 0.86 | 0.76 | 0.67 |
|
Double | 6.57 | 5.94 | 4.92 | 4.15 | 3.56 | 3.09 | 2.70 | 2.38 | 2.11 | t.88 | 1.69 | 1.52 | 1.37 | 1.24 | 1.12 | 1.03 |
|
Span Type |
|
Multiple | 6.57 | 5.94 | 4.92 | 4.15 | 3.56 | 3.09 | 2.70 | 2.38 | 2.11 | 1.88 | 1.69 | 1.52 | 1.37 | 1.24 | 1.12 | 1.03 |
|
V. Packaging & Delivery
Packaging Details: All of glass wool felts adopt transparent water-proof packing for convenient direct-viewing. High performance of products reflects FUERDA's professional technology. Also we accept OEM for different brands of products based on requirements of customers all over the world.
Delivery Detail : about 7 to 10 days
