Insulation Composite Paper DMD
| Price: |
US $ 2.5kg |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500kg |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
6641 |
| Markets: |
Eastern Europe,Africa,Oceania,Mid East |
| Application: |
Motor |
| Type: |
Solid |
| Chemistry: |
Organic Insulation |
| Material: |
Paper |
| Thermal Rating: |
F 155 |
| Maximum Voltage: |
10KV~20KV |
Product Description

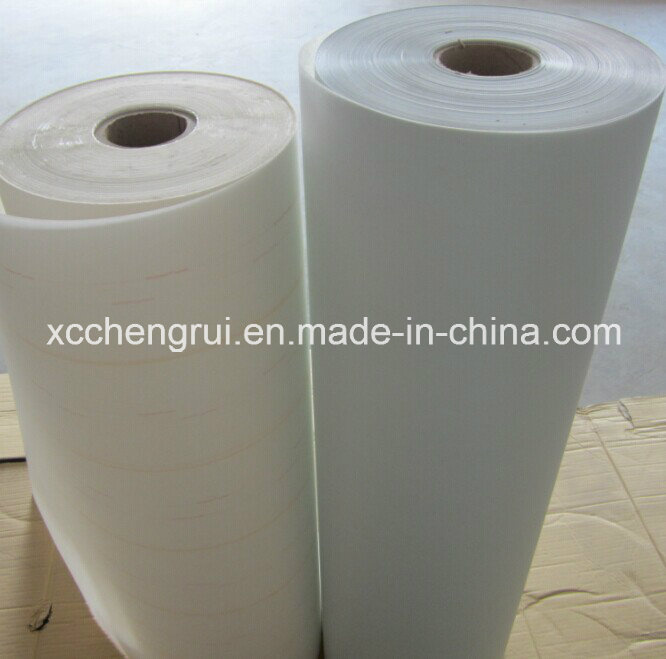

6641 F-DMD insulation paper-polyester film
Heat-resistance: F class 155 C
6641-F DMD insulation paper consists of two layers of polyester fiber non-woven fabric and one layer of polyester film in the center, the used adhesive is F CLASS, acid-free and temperature resistant.
Property: With high dielectric, heat resistance, mechanical strength and impregnated property, as slot, interurn and liner insualtion in transformers.
The specification available:
Thickness: 0.17mm 0.20mm 0.25mm 0.30mm 0.35mm
Width: 1000mm Color: Pink, Blue and White
Form: In rolls.
Pacage: Carton and Pallet Storage life---1 year
Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd
If any question, pls contact our sales
Our main products are as follows:
Film Products: 6020/6021 Polyester film, 6051 polymide film
Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper
Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,
Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.
Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210
Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper
Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar
The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
