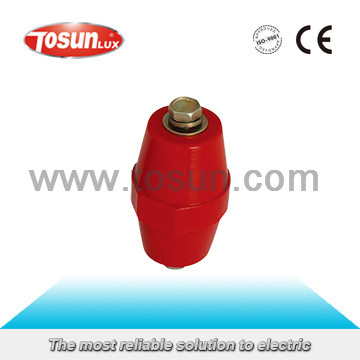

Insulation Connector with Screw or Without Screw

Name: Insulation Connector with Screw or Without Screw
Brand: China-Manufacturer-Directory.com
SKU: 765140955
Availability: InStock
Rating: 4.3 (112 reviews)

Supplier:	Wenzhou Tosun Electric Co., Ltd.
Price:	US $ 0.1-0.5/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	SM-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brass Screw:	6, 8, 10
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Post Insulator
Type:	A Type Insulator

Product Description

Specification

1.Size: SM25,SM30,SM35,SM40,SM51,SM76
2.Tensile strength:500LBS, 550LBS, 600LBS, 650LBS, 1000LBS, 1500LBS

Model	SM-25	SM-30	SM-35	SM-40	SM-51	SM-76
Tensile Strength(lbs)	500	550	600	650	1000	1500
Torgue Strength(ft lbs)	6	8	10	12	15	25
Withstand Voltage(kv)	6	8	10	12	15	25
Screw(mm)	6	8	8	8	8	10
Weight(g)	40	62	73	104	97	245

Model	30x30mm	30x40mm	40x40mm	50x40mm	40x60mm
Tensile Strength(lbs)	500	650	650	1000	650
Torgue Strength(ft lbs)	8	40	12	50	40
Withstand Voltage(kv)	5	15	10	10	10
Screw(mm)	6	6	8	10	10
Weight(g)	10	15	13	13	13

Model	EL-30N	EL-24	EL-15	EL-12	EL-6M	EL-3M	V6090	V60155	V70210	J06-170
End Diameters(a/b)(mm)	100	70	70	58	70	70	60	60	70	80
Height(mm)	310	210	142	130	90	60	90	155	210	300
Surface Leakage Distance(mm)	630	356	210	172	125	88	140	197	285	520
Rated Voltage(kv)	36	24	15	12	7.2	3.6	8.5	12	22	36
Low Frequency Dielectric Strength(kv)	75	60	50	36	22	16	-	-	-	-
ImpuLse Voltage Resistance	200	125	110	95	75	60	-	-	-	-
Persistent Bending Strength(1 min,KG)	500	300	400	300	400	400	-	-	-	-
Tensile Strength(kg)	>3000	>1500	>1500	>2000	>1200	>1200	-	-	-	-
Torgue Strength(kg-m)	25	>25	>25	>25	>25	>25	-	-	-	-

Features

1.Low voltage insulator

2.Electrical resistance

3.Heat,fire,water resistance

4.Low shrink

Why Us?

1. Clients' benefit first.

2. Experinced in the line for more than 21 years.

3. Reasonable price and good source of raw material.

4. A group of professional inspectors monitor quality.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

6. Unique design for packing.

7. Experienced salesmen offer one-to-one service.
