| Price: | US $ 3kg |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 300kg |
| Pay Type: | L/C,T/T |
| Product Name | Properties | |||||||
| 6630 | Thickness(mm) | 0.15 | 0.17 | 0.2 | 0.25 | 0.30 | 0.35 | |

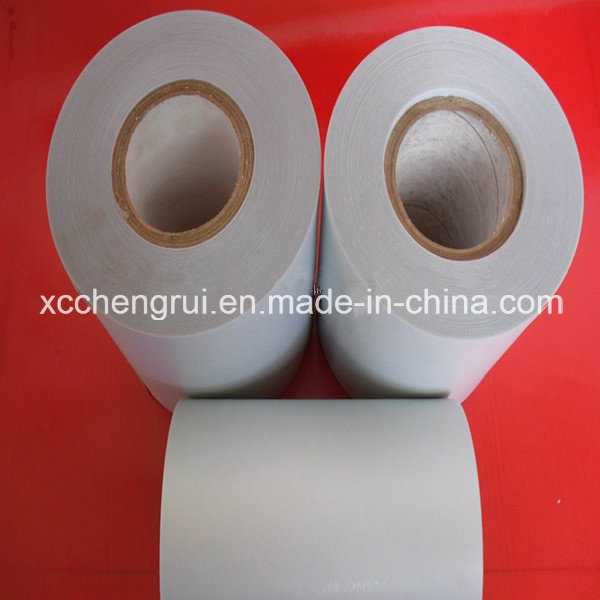

| DMD composite paper | Tolerance(mm) | ±0.02 | ±0.025 | ±0.03 | ±0.04 | |||
| Breakdown Voltage(kv) | 6 | 7 | 9 | 12 | 15 | 18 | ||
| Bong Strength AT ROOM Temp | No Delamination | |||||||
| Bong Strength at (155±2)ºC,10min | No Delamination, no blister, no adhesive flow | |||||||
| NO. | Item | Unit | Normal value | |||||
| 1 | Nominal thickness | mm | 0.15 | 0.17 | 0.20 | 0.25 | 0.30 | 0.35 |
| 2 | Nominal weight and tolerance | g/m2 | 140±20 | 190±28 | 225±33 | 300±45 | 350±52 | 425±63 |
| 3 | Nominal thickness of film | um | 50 | 75 | 100 | 150 | 190 | 250 |
| 4 | TensileStengt MD no bending MD after bending TD no bend TD after bending | N/10mm | ≥80 ≥80 ≥80 ≥70 | ≥120 ≥105 ≥105 ≥120 | ≥140 ≥120 ≥120 ≥100 | ≥190 ≥170 ≥150 ≥130 | ≥270 ≥200 ≥200 ≥150 | ≥320 ≥300 ≥300 ≥200 |
| 5 | Elongation MD no bending MD after bending TD no bending TD after bending | % | ≥15 ≥10 ≥20 ≥10 | ≥15 ≥10 ≥20 ≥10 | ≥15 ≥10 ≥20 ≥10 | ≥15 ≥10 ≥15 ≥10 | ≥5 ≥5 | ≥5 ≥5 |
| 6 | Breakdown voltage Normal | KV | ≥6 | ≥7 | ≥9 | ≥12 | ≥15 | ≥18 |
| 7 | Bonding strength at room temperature | - | No delamination | |||||
| 8 | Bonding strength at 155±2ºC for 10 min | - | No delamination,blister and drainage | |||||
| Prod Model: | 6630 |
|---|---|
| Markets: | Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Thickness: | 0.15mm 0.17mm 0.20mm 0.23mm 0.25mm 0.30mm 0.45 |
| Width: | 1000mm |
| Applications: | It Is for B- Grade Motors, Generators or Other Ele |
| Application: | Motor |
| Type: | Solid |
| Chemistry: | Organic Insulation |
| Material: | Paper |
| Thermal Rating: | B 130 |
| Maximum Voltage: | 10KV~20KV |
| Brand: | Chr |
