Product Specifications
| Prod Model: |
LS-T5-04W-003N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 26 *300: |
Mm |
| Shape: |
Straight |
| Shade Material: |
PC |
| Lamp Holder/Base: |
G13 |
| Shell Type: |
Frosted |
| Certification: |
EMC |
| Color Temperature: |
Cool White |
| LED Chips: |
Epistar |
| Input Voltage: |
100-240V |
| LED Type: |
SMD 2835 |
| Warranty: |
3 Years |
| Lifespan: |
≥50000H |
| Tube Type: |
T5 |
| Power: |
4 |
| Length: |
0.3m |
Product Description

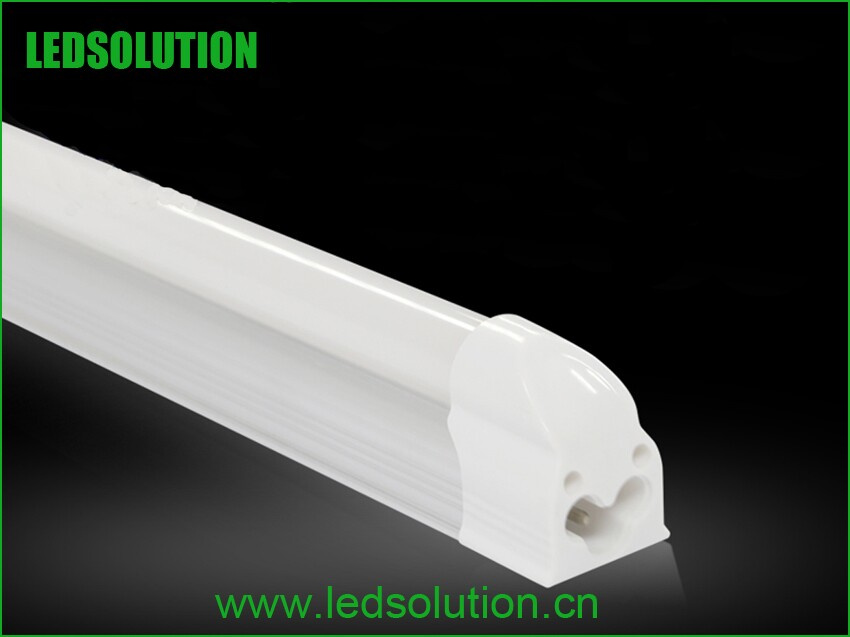

Integrated Tube T5 4W for Lamp Retrofit Replacement
General Introduction
T5 LED Tube uses SMD LED2835 as light source and there are 300mm(1 feet), 600mm(2 feet), 900mm(3 feet), 1200mm(4 feet), 1500mm(5 feet)available. With longer lifespan and less toxic substance, T5 LED tube can be applied to replace traditional fluorescent tube lights. Adopting AC100-240V voltage input and DC72-80V output, this 9w 60cm T5 LED tube is RoHS approved
What is the details of our T5 LED Tube?
1. The main structure is used 100% heat conduction PC, 100% security.
2. T5 LED Tube can use 20pcs of tube series. Two tubes can be connected directly or use wiring connection.
3. Design of deep groove, poor glare, better light effection, No dark area
4. Light weight, and shock-proof
5. Ra>80, 100lm/w
6. LED passed the LM80 tested, SCD<6
7. With CE, RoHS, Approval
How to install T5 LED Tube light?
1. For the LED tube use inductance ballast, just remove starter
Before installation.
2. For the LED tube use electronic ballast, please remove the
Whole electronic ballast before installation.
Integrated Tube T5 Features
Integrated Tube T5 4w 300mm designed with lamp and fitting integration
Single LEDs of 24-26lumen per watt with higher brightness
Non-isolated power supply of 84% power conversion efficiency
Frosted lenses PC cover of 0.85-0.88 light transmittance rate
Anodic techniques to protect aluminum housing surface from corrosion
Why Choose us?
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Monthly output over 50, 000PCS.
5. Single package in Gift Boxes
Integrated Tube T5 Application
T5 LED Tube Lights can be applied in indoor LED lighting, places as school, office room, factory, etc.
Integrated Tube T5 Parameters
Model NO. |
LS-T5-04W-003N |
Optical Parameters |
Light Source |
SMD LED2835 |
Luminous Flux(lm) |
300-400 |
CCT(K) |
2700-6500 |
CRI(Ra) |
80 |
Beam Angle |
120°-160° |
Light Attenuation ratio (%) |
Less than 10% in 3 years |
LED Quantity |
24 |
Electrical Parameters |
Input Voltage(V) |
AC100-240V |
Frequency(Hz) |
50/60HZ |
Output Voltage(V) |
72-80V |
Total Power(W) |
4 |
Power Factor |
>0.9 |
Lifespan (Hrs) |
>50,000 |
Dielectric Voltage Withstand Test |
3750Vac/60s |
Structural Parameters |
Material |
Aluminum housing &PC cover |
Size(mm) |
Φ16×300 |
Length(mm) |
300 |
Net Weight(Kg) |
0.11 |
Integrated Parameters |
Operating Temperature |
-10°-40° |
Storage Humidity |
-40°-85° |
Safety Requirement |
/ |
Environmental Directives |
RoHS |
Terms of payment: T/T, Paypal, Western Union etc.
Delivery time: Within 15 days
Shpping way: By international express mail (DHL, UPS, FEDEX etc) for samples, by air or by sea for bulk orders.
