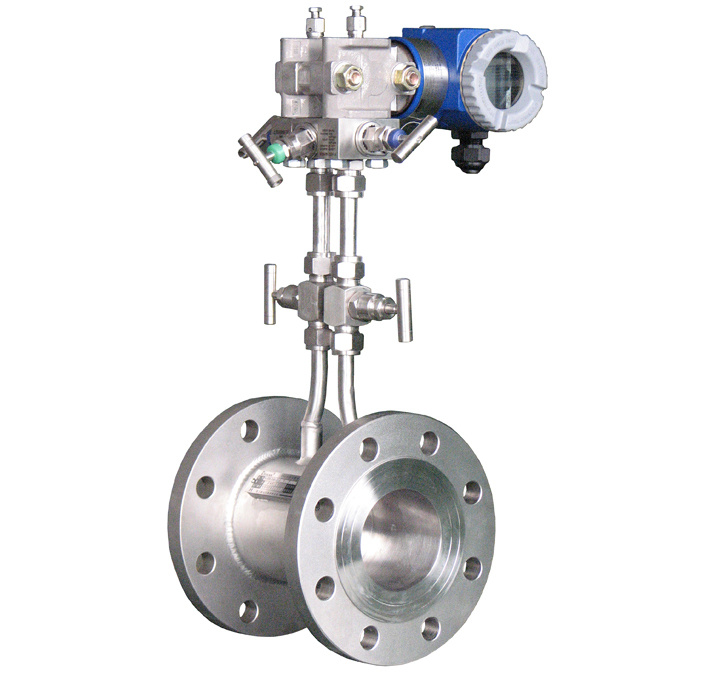

Integration Orifice Plate Flow Meter, Differential Pressure Flow Meter

Integration Orifice Plate Flow Meter, Differential Pressure Flow Meter
Supplier: Tianjin U-Ideal Instrument Co., Ltd.
Price: US $ 200/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: Orifice Plate Flow Meter
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium: Air, Steam, Gas, Liquid
Sensor: Tube/Flange
Type: Fluid Oscillation Flow Meter
Accuracy: ±0.2-0.5%
Measuring Media: Liquid
Size: Dn15~Dn1200
Measuring Principle: Atomic Physics

Product Description

integration orifice plate flow meter has a self-diagnosis, self- set range. With a variety of communication interfaces,
1. Circular concentric sheet with sharp square edges
2. Flange tapping
3. D-D/2 tapping
4. Right-angle edge orifice plate
Product Overview

HLG SERIES self-control whole set throttling devices are widely applied in industries sectors
Such as metallurgy, power, chemical, pharmacy, food, military, scientific research, etc. They are used
To measure, control and adjust flow of the fluids (liquid, gas and vapors). The throttling devices are
With the advantages of simple structure, easy maintenance, reliable performance and high measuring
Accuracy.

Basic Principle

When the fluid filled in the pipe is flowing through the throttling device in the pipe, the flow will
Shrink partly at the throttling device, hence the flow velocity increases while the static pressure
Decreases to form the differential pressure at the back and forth of the throttling device. The bigger
The flow rate, the larger the differential pressure, so we can measure the flow according to differential
Pressure. This measuring method is based on Fluxion Continuity Equation (Mass Conservation Law)
And Bernoulli's Principle (Energy Conservation Law). The differential pressure is related to flow, as
Well as other factors. For example, when the forms of throttling devices or physical properties (density,
Viscosity) of the fluids in the pipe are different, the differential pressure generates at the same flow rate
Is different.

Classification according to the structure

1)Standard Orifice Plate: Also called Square Edge Concentric Orifice Plate, is a kind of circular
Concentric sheet with sharp square edges. The edges of the bores at the upstream should be sharp
Square angles. Three tapping modes can be provided: Corner tapping, flange tapping and D-D/2
Tapping. In order to measure in either of the two directions, we can use symmetrical orifice plate. The
Two edges of the orifice accord the features of upstream edges of the right-angle edge orifice plate, and
The total thickness of the orifice plate doesn't excess the thickness of the bores of throttling orifice.
2)Standard Nozzle
Two kinds of structure provided: ISA1932 Nozzle and Long Radius Nozzle.
A. ISA1932 nozzle: The nozzle with upstream face composed of the plane perpendicular to the axis,
The contracted section determined by two arc lines which the outline is circumference, the cylindrical
Throat and the groove. Only corner tapping for ISA 1932 Nozzle.
B. Long Radius Nozzle: The nozzle with upstream face composed of the plane perpendicular to the
Axis, the contracted section which the outline is 1/4 ellipse, the cylindrical throat and the groove or bevel.

Classification according to the structure
1)Standard Orifice Plate: Also called Square Edge Concentric Orifice Plate, is a kind of circular
Concentric sheet with sharp square edges. The edges of the bores at the upstream should be sharp
Square angles. Three tapping modes can be provided: Corner tapping, flange tapping and D-D/2
Tapping. In order to measure in either of the two directions, we can use symmetrical orifice plate. The
Two edges of the orifice accord the features of upstream edges of the right-angle edge orifice plate, and
The total thickness of the orifice plate doesn't excess the thickness of the bores of throttling orifice.
2)Standard Nozzle
Two kinds of structure provided: ISA1932 Nozzle and Long Radius Nozzle.
A. ISA1932 nozzle: The nozzle with upstream face composed of the plane perpendicular to the axis,
The contracted section determined by two arc lines which the outline is circumference, the cylindrical
Throat and the groove. Only corner tapping for ISA 1932 Nozzle.
B. Long Radius Nozzle: The nozzle with upstream face composed of the plane perpendicular to the
Axis, the contracted section which the outline is 1/4 ellipse, the cylindrical throat and the groove or bevel.
ModelDescription
HLG



Flow Measuring Device
Tapping ModelsH


Corner Annular-chamber Tapping
Z


Corner Drilling Tapping
F


Flange Tapping
J


D-D/2 Tapping
TypeK

Standard Orifice Plate
Nominal Pressure

0.25~32Mpa
Nominal Diameter
25~3000mm
*MaterialCCarbon Steel
PStainless Steel
HAlloy Steel


Specification

DN25~DN1600(mm)

Medium viscosity

≤30cp

Accuracy

±1.0%FS

Explosion classification

ExdIICT6
ExiaIICT6

Ratio of Measuring Span

13:1 Expansion20~40

Protection classification

IP68

Structure Principal

Integrated structure,difference pressure principal

Material Type

All kinds of brand stainless steel

Output Type

4~20mA/Fascia HART Agreement

Connection Way

Clamp mounted or flange connection

Operating Pressure

≤ 25Mpa

Installation Type

Level or vertical

Medium Temperature

≤ 550°C
