Huizhou Dayawan Fox Etech Limited >> Intel Atom D2550 1.86g Fanless Embedded Ipc 3.5" Motherboard Portable Host

Intel Atom D2550 1.86g Fanless Embedded Ipc 3.5" Motherboard Portable Host

Supplier:	Huizhou Dayawan Fox Etech Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	QBOX-2550
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
WiFi:	Support
Memory Capacity:	2GB
CPU:	Intel Atom
GPU:	Intel
Memory Type:	DDR3
Use:	Commercial
CPU Frequency:	1.5-2.0GHz
HDD Capacity:	Msata SSD 8/16GB
Drive Type:	USB DVD-ROM

Product Description

Embedded IPC
1. Atom D2550-3 1.86GHz Both-Threaded
2. Onboard DDR3 2GB
3. WiFi support; 6*COM; 4*USB
4. MSATA SSD 8/16GB

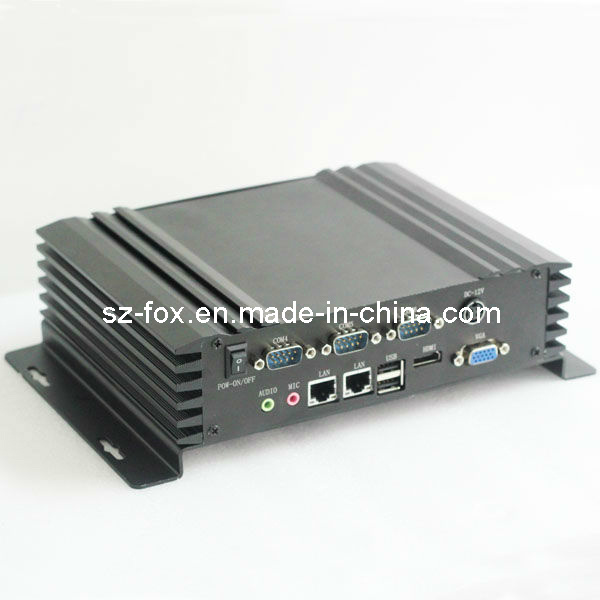

Intel Atom fanless embedded IPC 3.5" motherboard

Advantage:
1. All aluminium shell, good at heat dissipation
2. Compact embedded system design; Fanless, completely mute.
3. Sealed design, dust-proof; Shock-proof, very steady.
4. Support Gigabit Ethernet and WiFi.
5. Front&Rear panel provide comprehensive I/O functions, suitable for the diversified embedded application.

Main features:

Mainboard	Form Factor	Mini ITX 3.5inch (115mm×155mm)
	CPU	Intel® Atom D2550 1.86GHz Both-Threaded
	Chipset	Intel® Atom D2550 processor + NM10 chipset
	Memory	Onboard DDR3 2GB
	Storage	mSATA SSD 8/16GB
	COM	6*COM port
	USB	4*USB 2.0/1.1 port
	VGA	1VGA interface 1HDMI
	Network	2*1000M Ethernet RJ45 LAN port(WIFI optional)
	Audio	1*Audio(line in/line out/Mic)
	GPIO	8 group(4-in/4-out)
	Watchdog	256
	Other Function	Support power booting/plug and play.
Cooling System	Fanless;aluminium shell heat conduction
Power Supply	12V-DC 3A;ATX 4-PIN
Operating Environment		Working	Storage
	Temperature	-20°C~70°C (-4°F~158°F)	-20°C~80°C (-4°F~176° )
	Humidity	10%~90% (non-condensing)	10%~90% (non-condensing)
	Impact	3G@11MS	30G@11MS
	Shake	0.4GRMS(10-500HZ)	1.12GRMS(10-500HZ)
Structure	Material	All aluminium shell
	Color	Black/Silver (optional)
	Size	230mm(L)X55mm(H)X160mm(W)
	Weight	2.50KG
Application Area	wall-mounted/desktop/vehicle-mounted/industrial control
