Huizhou Dayawan Fox Etech Limited >> Intel Celeron 1037u Fiber Optic Motherboard with 4 LAN (ITX-NM70SL)

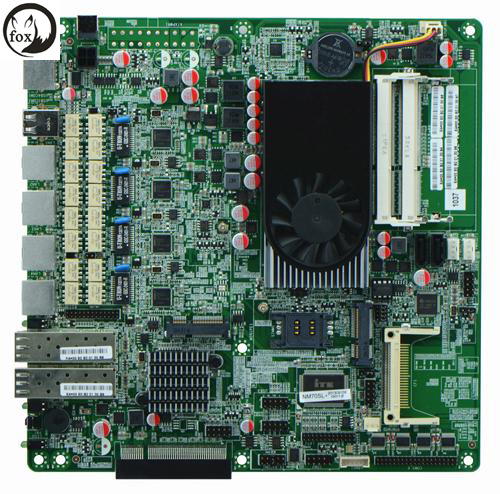

Intel Celeron 1037u Fiber Optic Motherboard with 4 LAN (ITX-NM70SL)

Intel Celeron 1037u Fiber Optic Motherboard with 4 LAN (ITX-NM70SL)
Supplier: Huizhou Dayawan Fox Etech Limited
Price: US $ 233/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CIF,EXW
contact supplier

Product Specifications

Prod Model: ITX-NM70SL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 220mm*220mm
Integrated Graphics: Integrated Graphics
Main Chipset: Intel
Maximum Memory Capacity: 16G
Structure: Mini-ITX
Memory: DDR3
SATA Interface: SATA2.0
Printed Circuit Board: Six Layer
Main Board Structure: Integrated
Audio Effects: Not HiFi
CPU Socket: Intel Celeron 1037 Dual Core 1.8GHz

Product Description

Intel Celeron 1037u Fiber Optic Motherboard with 4 LAN

Packaging & Delivery
Packaging Details: Carton box: 1*motherboard 1*driver CD 1*SATA cable 1*COM cable 1*HDD power cable
Delivery Detail: Within three working days (sample)

Specifications

1. Intel Celeron 1037u Fiber Optic Motherboard with 4 LAN
2.6*USB
3.6*COM
4.4 line GPIO
5.2*Fiber Optic Ports

Intel Celeron 1037u Fiber Optic Motherboard with 4 LAN

Product Description
Model No.ITX-NM70SL
CPUIntel® Celeron 1037 Dual Core 1.8GHz  TDP 17W
ChipsetIntel® NM70
Memory2* Dual Channel SO DDR3 Support 1333/1066MHz, Max up to 16GB
DisplayIntel® HD Graphics support VGA
Expansion slot1* PCI-E 8x support fiber module
1* Mini-PCIE Support WIFI,3G module
Storage2* SATA port
1* CF card slot
1* MSATAIII slot
LAN2* Intel® NH82580EB 1000M fiber(optional)
4* Intel® 82583V 1000M copper
Support wake on LAN, PXE function, LAN1-LAN4 support BYPASS(optional)
Rear I/O1* COM CISCO Standard port
2* USB 2.0 port
4* RJ-45
2* fiber port
1* POWER Button
1* LED1 ( POWERLED/HDDLED )
2* SFPLED
Internal I/O1* CPUFAN and SYSFAN
1* PS/2
1* JVGA(2*5pin)
1* FP1
5* RS232,COM2/3 support RS422 , 485
1* TX-RXCOM RS422 , 485
1* LPT
4* USB 2.0
2* PWROUT HDD power supply interface
1* LAN_LED interface 2*13pin
1* GPIO interface (2*5) support 4 line GPIO
BIOS32MB SMT Flash ROM
Watchdog256 grade, 0~255s
PowerATX 20pin/DC_12V
Working Temperature-10 °C~ 60 °C
Working Humidity0-95% Relative humidity, non-condensing
Dimension220mm x 220mm
Huizhou Dayawan Fox Etech Limited build in 2006, specialize in producing and selling Thin Client, Mini PC, All-In-One Computer, Embedded Computer, Industrial Motherboard and etc.

Our company's operating philosophy is "more refined, more powerful. "We always adhere to this quality policy, "the quality get market opportunities, services to win customer satisfaction, innovation promote business progress, a truth-seeking creat companies brilliant. " Pursue the eternal customer principles "credibility first, quality first and service-oriented. "

We insist on Market-oriented, technology- fundamental. In recent years, our companies get big radiation increasing in the domestic business scope, won the praise of customers, with significant achievements in the industry. Building long-term customer relations with many Middle East\European and South American companies. Rely on technological progress, we change the pressure of competition as a driving force, whick make the company's new products, new processes emerge time by time.

With the idea of "quality, service, price, " and the spirit of fighting innovation, FOX Etech LIMITED continuous self- transcendence, our company become bigger and stronger, we will provide quality services to more customers. Your satisfaction is our pursuit! We look forward to working with you to become a long-term win-win partnership!
