| Supplier: | Huizhou Dayawan Fox Etech Limited |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CIF,EXW |
|
|

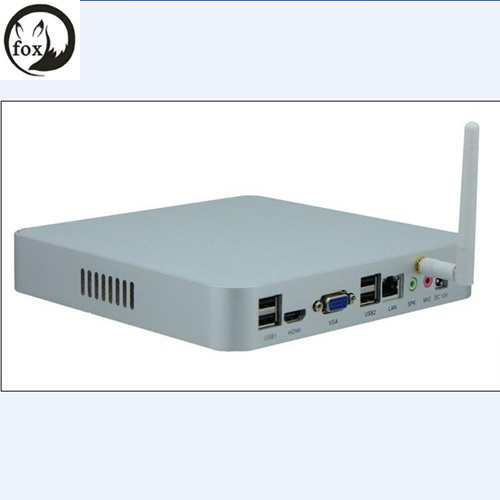

| Prod Model: | HTPC33-B100 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | White or Black |
| Memory Capacity: | 1GB |
| CPU: | Intel Celeron |
| GPU: | Intel |
| Use: | Home |
| Memory Type: | DDR3 |
| CPU Frequency: | 1.5-2.0GHz |
| Display Type: | Support LCD,LED,CRT |
| HDD Capacity: | 8g SSD |
| Drive Type: | USB |
| Model No. | HTPC33-B100 |
| Mainboard | ITX-M100_218 |
| CPU | Integrated Intel® 22NM 1037U 1.8GHz dual-core CPU TDP17W |
| Chipset | Intel® NM70 Chipset |
| Graphics | Intel® HD Graphics Core graphics,Providing VAG\HDMI display output |
| System Memory | 1* SO DDRIII Memory Slot,Support 1066/1333 Memory, Max. up to 8GB |
| Storage | 1* MSATA Slot ,Support SSDs\WIFI |
| Network | Integrated Realtek Gigabit LAN chip,Supports Wake-on-LAN |
| Wireless Network | 1* Mini-PCIE Slot,Support WIFI\3G Module |
| front panel port | 2* USB 2.0 port |
| 1* Mic port | |
| 1* Line out port | |
| 1* POWER | |
| After panel port | 4* USB 2.0 port |
| 1* HDMI port | |
| 1* VGA port | |
| 1* LAN port | |
| 1* Line out port | |
| 1* Mic port | |
| 1* DC_12VIN port | |
| 1* WIFI port | |
| Cooling System | By Mainboard cooling fan cooling |
| Operating Temperature | -0C~50C |
| Storage Temperature | -20C~70C |
| Operating Humidity | 0% ~ 95% (relative humidity; non-condensing) |
| Anti-vibration | 5~400Hz/random operating |
| Form Factor | 197*197*33(LWH/mm) |
| Power Input | DC_12V single power input |
| Installation | Desktop or wall mounting |
| Color | Silver |
