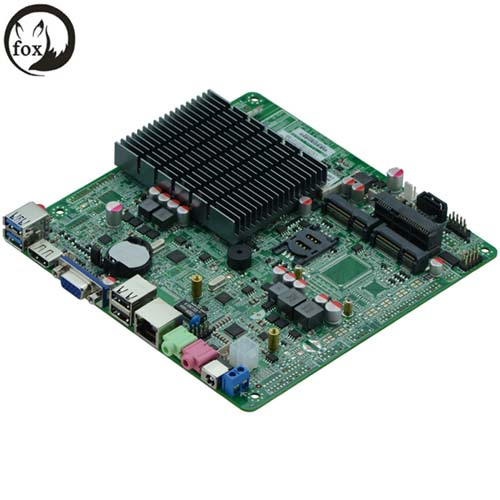

Intel Celeron Processor J1900 motherboard,mini computer motherboard, nano itx motherboard 2.0GHZ
Packaging & Delivery
Packaging Details: | Netural Carton Box |
|---|
| Delivery Detail: | 3-5days after paid |
|---|
Intel Celeron Processor J1900 motherboard,mini computer motherboard, nano itx motherboard 2.0GHZ
Item No. | ITX-M50_NC VER:1.5 |
| CPU | Onboard Intel® Celeron Processor J1900 2 GHz(2M Cache, up to 2.42 GHz) |
| | Compatible with Intel® Bay Trail -I/M/D full series CPU |
| Chipset | Intel® Bay trail SOC |
| Memory | 1* SO DDRIII 1066 /1333,single memory slot up to 8GB |
| Display | Integrated Intel® HD Graphics |
| | Support VGA ,HDMI,LVDS(Dual Channel 24bit) , LVDS support the voltage of dc 12V screen,defalut is 3.3V . |
| Expansion Slot | 1* Mini-PCIE , support WIFI/3G |
| | 1* mSATA, support SSD |
| Lan | 1* RTL8111E Gigabit Lan ,Support wake-on-line ,PXE |
| Storage | 1*2.5 HDD Space onboard ; 1* SATA (alternative to 2.5'SATA ) |
| Audio | Integrated Realtek HD ALC662 for 6-Channel output,support MIC & Line-out ,Power amplifier |
| Front Panel | 1*HDMI |
| 1*VGA |
| 2* RJ45 LAN |
| 2*USB3.0 |
| 1* MIC(Red) , 1*Line Out (green) |
| 1* DC 12V Input |
| 1* Line-out(Green) |
| Internal I/O | 1* LVDS 2*15pin , Support Dual Chanel 24bitLCD( dual 8) |
| 1* JVGA1 12pin , the same signal to DB15 |
| 6* RS232 (COM1-2 support 5v/12v charged ,COM3 support RS422 /RS485 ) |
| 1*USB3.0 |
| 2* USB 2.0 |
| 1* PS/2 6Pin |
| 1* FP1 , 2*5pin ,Front panel buttons and LED connected |
| 1* AUDIO Front Audio interface 2*5pin |
| 1* Speaker 4pin |
| 1* PWROUT HDD |
| 1* ATX 4pin |
| 1* LVDS INVERTER |
| FAN | 1* CPU FAN and SYSTEM FAN |
| GPIO | Support 4 way Input & Output GPIO |
| BIOS | AMI 32MB Flash ROM |
| Watch Dog | Support hardware reset function (L256, 0~255 seconds) |
| Power | DC_12V Single power supply |
| Operating Temp. | -10°C~60°C |
| Storage Temp. | -40°C~80°C |
| Humidity | 5%-95% ( relative humidity; non-condensing) |
| Size | 170mm x 170mm |
