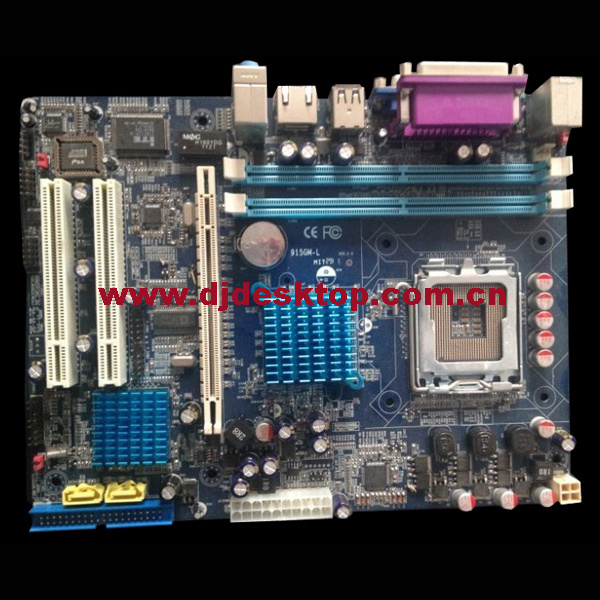

Intel Motherboard 915 -775 with Intel Pentium 4 Socket775 CPU
1. Intel 915+ICH6 Chipset, LGA 775, Supports 800/533 MHz FSB.
2. Supports 2*DDR2 800/667/533 memory, Dual Channel, support up to 4GB by 2 DIMM slots.
3.2*SATA, 4*USB2.0, 1*VGA/IDE, 1*PCI Express x16, 2*PCI Express x1.
4. Realtek 8103EL 10/100M LAN Controller.
CPU
Support Intel Conroe-L Socket775 CPU/Intel Pentium 4 Socket775 CPU/ Intel Celeron D Socket775 CPU
Supports 533-800MHz FSB
Chipset
Northbridge: Intel 915GM Chipset
Southbridge: Intel+ICH6
Memory
Supports 2*DDR2 533/667/800 memory
Dual Channel architecture support up to 4GB by 2 DIMM slots
Graphics
Intel Graphics Media Accelerator 900
1* VGA port
Audio
Onboard HD 5.1_Audio
LAN
Onboard RT8103EL LAN Card
Expansion Slot
1 *PCI Express x16 slot
2 *PCI slots
I/O Connectors
1 *IDE connector
2 *SATA 300Mb/s connector
1 * front panel connector
1 * front audio connector
2 *USB 2.0/1.1 port
1 *COM port
1 * PS/2 port
1 * VGA port
1 *LPT port
1 *audio jacks
On Board Ports
24 PIN ATX POWER PORT
4 PIN ATX 12V POWER PORTS
4*USB 2.0 PORTS
1*CPU fan connector
1*F_AUDIO PORT
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
SIZE
240mm x185mm
PACKING
20PCS IN ONE CARTON
| CPU |
| Support Intel Conroe-L Socket775 CPU/Intel Pentium 4 Socket775 CPU Intel Celeron D Socket775 CPU |
| Supports 533-800MHz FSB |
| Chipset |
| Northbridge: Intel 915GM Chipset |
| Southbridge: Intel+ICH6 |
| Memory |
| Supports 2*DDR2 533/667/800 memory |
| Dual Channel architecture support up to 4GB by 2 DIMM slots |
| Graphics |
| Intel Graphics Media Accelerator 900 |
| 1* VGA port |
| Audio |
| Onboard HD 5.1_Audio |
| LAN |
| Onboard RT8103EL LAN Card |
| Expansion Slot |
| 1 *PCI Express x16 slot |
| 2 *PCI slots |
| I/O Connectors |
| 1 *IDE connector |
| 2 *SATA 300Mb/s connector |
| 1 * front panel connector |
| 1 * front audio connector |
| 2 *USB 2.0/1.1 port |
| 1 *COM port |
| 1 * PS/2 port |
| 1 * VGA port |
| 1 *LPT port |
| 1 *audio jacks |
| On Board Ports |
| 24 PIN ATX POWER PORT |
| 4 PIN ATX 12V POWER PORTS |
| 4*USB 2.0 PORTS |
| 1*CPU fan connector |
| 1*F_AUDIO PORT |
| Accessories |
| CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE. |
| SIZE |
| 240mm x185mm |
| PACKING |
| 20PCS IN ONE CARTON |
