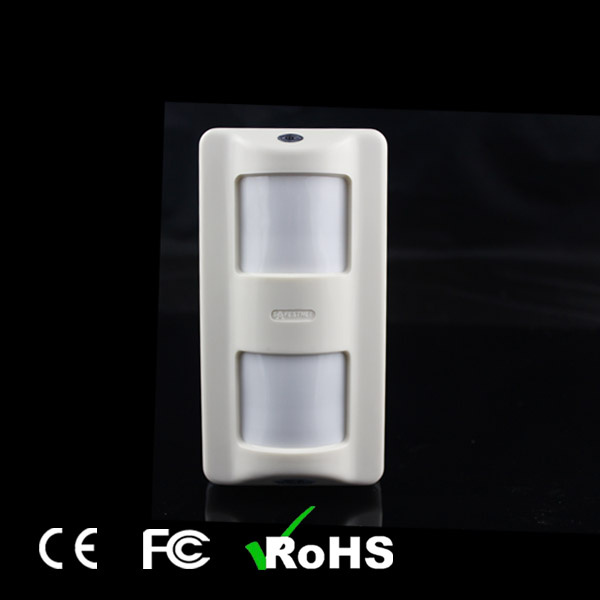

Intelligent Outdoor Infrared Sensor with PIR, Microwave, Energy Anlysis Tri-Tech Function
Product Specifications
| Prod Model: |
WL-838F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
128*64*40mm |
| Tri-Tech: |
PIR + Microwave + Energy Anlysis |
| Detecting Distance: |
9m-18m |
| Type: |
Probe |
| Installation Mode: |
Wall Mounted |
| Application: |
Home, Industry, Communication Electronic Product |
| Usage: |
Anti-Theft |
| Certification: |
CE & RoHS |
Product Description
Features:- Alarm indicator: Red led
- Outdoor pet immunity function
- PIR, Microwave and Energy analysis Tri-tech detector
- Sensor: Dual element infrared sensor
- A full range of waterproof, moth-proof design
- Digital circuit, using microprocessor
- Bipolar pulse count adjustable
- Anti-white, anti-fluorescent function
- Full automatic temperature compensation
- Digital microprocessor controller, anti false alarm
- SMT manufacturing process, anti RFI, EMI interference
- Environment memory and C output mode
- Three sensor composite detection, fuzzy logic and the ASTC
- ABS plastic material
- The tamper function
Technical Specification | Model | WL-838F | WL-838MF |
| Model Type | Wired Tri-tech PIR detector | Wired Curtain Tri-tech PIR detector |
| Working Voltage | DC9-16V |
| Working Current | 33mA |
| Detection Distance | 12m |
| Detection Angle | 110° | 15° |
| Anti RF interference | 30V/m 10MHz-1GHz |
| Installation height | 1.7 to 2.5m(2.2m is proposed) |
| Installation mode | Wall mounted |
| Water-proof level | IP 65 |
| Anti-pet Level | 25kg |
| Alarm output | NC , 100mA/DC30V max |
| Temper output | NC , 100mA/DC30V max |
| Operating Temperature | -40ºC~ +70ºC |
| Anti-white light interference | >100000LUX |
| Relative Humidity | ≤95% (non-condensing) |
| Unit size | 138*75*46mm |
![]()
![]()

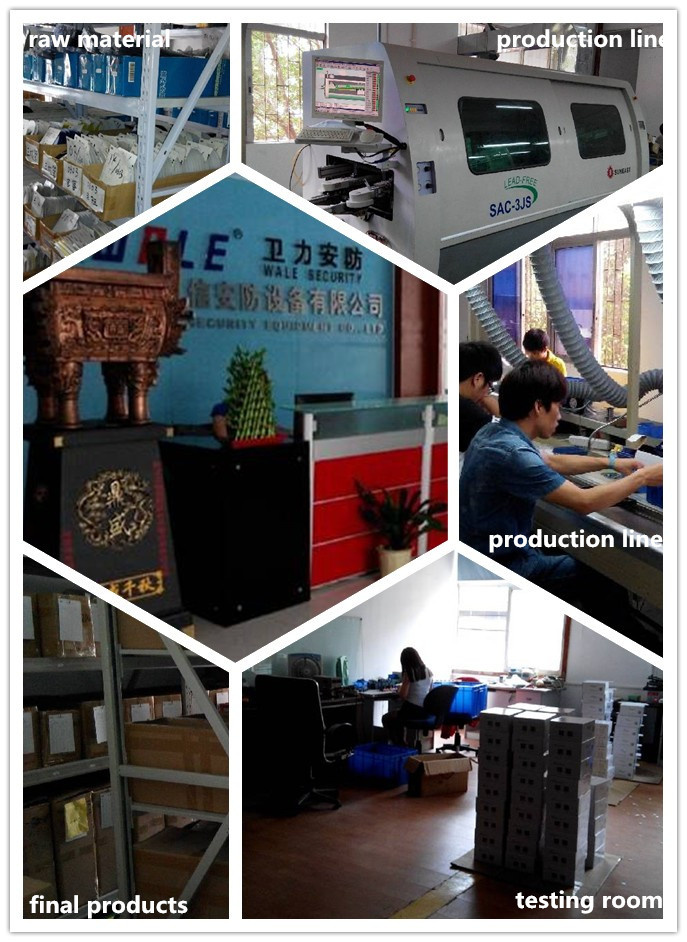

FAQ Q1: Where is your Factory? How can I visit your company? A1: Our factory is located in Shenzhen, Guangdong, China. We could pick you up from the hotel you live when you come to Shenzhen. Q2: Warranty?A2: Normally it's one year, but it will be 2 years if you can be our agent Q3: Can I get some Samples? Are your samples free or need cost?A3: It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed. Q4: Could you please make OEM for us?A4: Surely yes.OEM&ODM, any your customized alarm system we can help you to design and put into product Q5: How long can I get your samples?A5: For samples, it will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express. Q6: When can I get the price?A6: Your inquiry related to our products or prices will be replied in 24 hours. If you are very urgent to get the price, please call us by 86-17875047736. Q7: What's your Payment method supported?A7: We accept T/T, Western Union, L/C etc. Q8: Shipping & ExpressA8: 1). If you have specified shipping agent, we will contact them and to deliver your goods. 2) If you do not have specified shipping agent, we will delegate a credible one for you to deliver your goods. Goods could be delivered by air, by sea, by express (DHL, UPS, TNT or FEDEX).
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
