Product Specifications
| Prod Model: |
TXZC1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range: |
-0.1-60MPa |
| Power: |
DC24V |
| Type: |
Electronic |
| Contact: |
Normally Open |
| Explosion-proof Type: |
Non Explosion-proof |
| Application: |
Industrial |
| Brand: |
Tian Xiang |

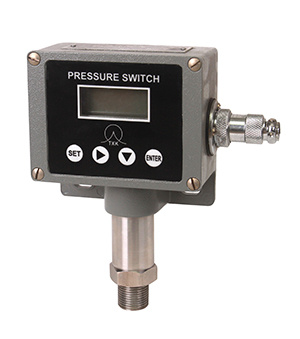

Product Description
High Accuracy
Long working life
Anti-acid and Alkali resistance
with LCD display
It is an intergrated circuit board with a CPU instead of the traditional electric contact points to transact,display and controll the pressure signal.there will be no misacting,no voltaic arc and other unavoidable shortcoming of traditional switches.
| Range | Max. Operating Pressure (Bar) | Setpoint Range (Bar) | Setpoint Tolerance (Bar) |
| 1 | 40 | 0~1 | ± 0.001 |
| 2 | 40 | 0~1.6 | ± 0.002 |
| 3 | 40 | 0~2.5 | ± 0.003 |
| 4 | 100 | 0~6 | ± 0.006 |
| 5 | 100 | 0~10 | ± 0.01 |
| 6 | 100 | 0~16 | ± 0.016 |
| 7 | 100 | 0~25 | ± 0.025 |
| 8 | 200 | 0~50 | ± 0.05 |
| 9 | 400 | 0~100 | ± 0.1 |
| 10 | 400 | 0~150 | ± 0.15 |
| 11 | 400 | 0~250 | ± 0.25 |
| 12 | 600 | 0~400 | ± 0.4 |
| 13 | 800 | 0~600 | ± 0.5 |
