Product Specifications
| Prod Model: |
HXDZ-58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Type: |
Power Meter |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Multi-rate Watt-hour Meters |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
Product Description
I. Product Introduction

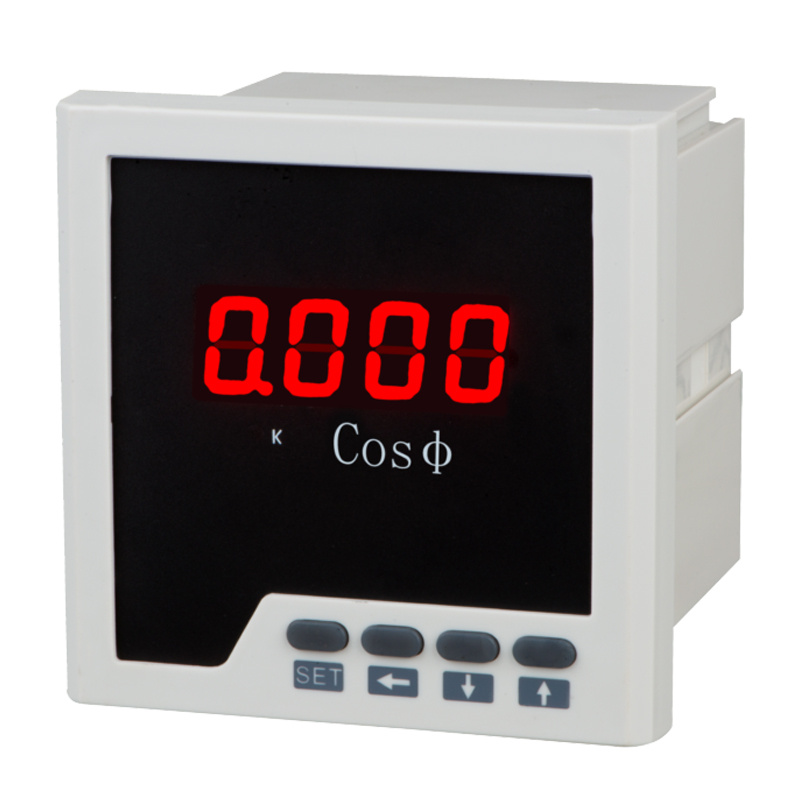

A digital power factor meter can be used to measure a single-phase or three-phase power factor, and is a smart meter with the functions of programmable measurement, display, alarm, digital communication and analog transmitting output and so on, and is widely used in substation automation, distribution automation, intelligent buildings, automatic production lines, test benches, etc.
4-digit high red LED display; one-way or two-way relay alarm output allows the upper or lower limit alarm; RS-485 digital communication interface adopting the international standard MODBUS-RTU communication protocol allows networking with a variety of PLC, HMI and configuration software; analog (DC 4mA to 20mA) transmitting output is also optional.
II. Technical Parameters
Parameters | Performance |
| Signal Input | Voltage | Range | AC57.7V/AC100V/AC220V/450V, etc. |
| Overload | Continuous: 1.2 times; Instantaneous: 2 times/1S |
| Power Consumption | <1VA |
| Impedance | >380KΩ |
| Current | Range | AC10A/5A/1A |
| Overload | Continuous: 1.2 times; Instantaneous: 10 times/5S |
| Power Consumption | <1VA |
| Impedance | <20mΩ |
| Frequency | 45-65HZ |
| Auxiliary Power Supply | Linear Power Supply: AC 220V±5%; Power Consumption<3VA
Switching Power Supply: AC/DC 85V to 265V; Power Consumption<3VA |
| Relay Output | One-Way or Two-way Output, Contact Capacity: 1A/220VAC; 1A/24VDC |
| Analog Output | DC 0mA to 20mA, DC 4mA to 20mA, DC 0V to 5V, DC 1V to 5V, DC 0V to 10V, etc. |
| RS485 Communication | RS485 Communication Interface, Physical Layer Isolation, complying with the international standard MODBUS-RTU protocol.
Communication Baud Rate: 4800 and 9600, Data Format: N81 |
| Accuracy Grade | Grade 0.5 |
| Display Mode | Digital Display: 4-digit high red LED nixie tube |
| Environment | Operating temperature: -10-55ºC; Storage Temperature: -20-75ºC |
| Safety | Insulation: signal, power supply, output terminal resistance to cabinet>5MΩ
Withstand Voltage: signal input, power supply, output-output>AC2KV |
III. Meter Outline Dimensions and Hole Size
3.1 Meter Outline Dimensions and Hole Size
Outline Code | Outline Dimensions (mm) | Hole Size (mm) | Depth (mm) |
| 5 | 96×48 | 91×44 | 85 |
| A | 72×72 | 67×67 | 85 |
| 3 | 80×80 | 76×76 | 85 |
| 9 | 96×96 | 91×91 | 85 |
| 2 | 120×120 | 111×111 | 85 |
