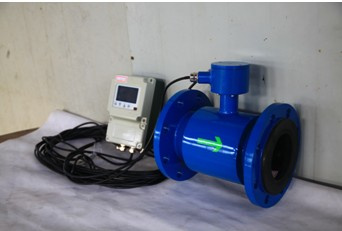

Intelligent Split Type Magnetic Sewage Flow Meter
Product Specifications
| Prod Model: |
Lzb-4, 6, 10 F4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD: |
Yes/No |
| Ex-Proof: |
Intrinsic Safety/ Explosion-Proof |
| Signal: |
4-20mA, Pulse, RS485, Hart |
| Medium: |
Liquid, Air, Gas |
| Pressure: |
Suitable for Very High Pressure |
| Indicate: |
Flow Rate, Total Flow |
| Accuracy: |
?à0.2-0.5% |
| Main Application: |
Corrosive Liquid/Gas |
| Sensor: |
Plug-in |
| Type: |
Variable Area Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
| Size: |
Dn10~Dn3000 |
Product Description
Electro magnetic Oil Flow meter
1. Integrative or split type
2. High quality, stability and precision
3. Long service life
4. Impulse; 4~20mA; 485Communication; HART; Other way
Intelligent Electro magnetic Flow meter
Electromagnetic flowmeter, composed of sensor and converter, works based on Faraday's law of electromagnetic induction. It is used to measure electrical conductivity of liquid or solid. Generally, the electrical conductivity should be over 5uS/cm (electrical conductivity of tap water, raw water is about 100-500uS/cm. It can also be used to measure various mediums like acid, alkali, saline solution, paper pulp, ore pulp and so on, but these mediums can't contain a lot of magnetic materials and bubbles.
Technical parameters
Nominal diameter: DN10-DN1200 / DN150-DN6000 (plug-in type can be chosen)
Nominal pressure: 0.6~4.0Mpa (Special pressure can be made)
Accuracy: ± 0.5%, ± 1%
Measuring range: 0.01-10m/s
Measuring medium (conductivity): 20μ S/cm
Medium temperature: -10° C~160° C
Environment temperature: -10° C~60° C
Environment humidity: ≤ 95% (relative humidity)
Power supply mode: 3.6 V/DC built-in lithium battery power supply. It can last for 2 years (3.6V, 12V, 220V)
Electrode materials: 316L stainless steel, HC, HB, Ti, Ta, Pt-Ir.
Lining materials: CR, MPUR, PTFE, F46, PFA
Connection mode: Flange, plug-in, or clamping type
Structure form: Integrated or split type.
Protection level: IP68 or IP65 (optional)
Display mode: LCD big screen displays instantaneous flow, the flow speed, (pressure), forward and backward cumulative total amount, and alarm prompt.
Output signal: Pulse output 0.0001-10 m³ / p
Frequency output 1-1000 HZ any setting (passive optical coupling output)
Communication mode: GSM/GPRS wireless data remote transmission (message form packet)
GSM/GPRS remote monitoring management software system: GSM/GPRS remote monitoring management
Software system can be assorted with the use of battery power supply electromagnetic flowmeter with remote transmission function (see the following diagram).
Tianjin U-ideal Instrument Co., Ltd is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
