Product Specifications
| Prod Model: |
XMTE-600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

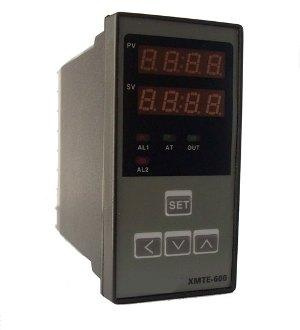

XMTA-6 series intelligent temperature controller
(1) (2)(3)(4)(5)(6)(7)
(1)- Intelligent dual digital display instrument regulating code
(2)- Instrument Dimensions (W × H)
Space: 160× 80mm; A: 96× 96mm; D: 72× 72mm; E: 48× 96mm F: 96× 48mm; G: 48× 48mm; S: 80× 160mm
(3) - Designed Serial Number
(4) - output mode:
0: output contacts of the digital on-off adjustment (contact capacity 220V, 3A resistive)
1: 1 ~ 5V DC output voltage signal for the PID regulator
2: output contacts of the two-off or time proportional PID regulator adjustment
3: output DC 0 ~ 5V or 1 ~ 5V or 0 ~ 10V voltage signal for the PID regulator
4: DC 4 ~ 20mA output current signal for the PID regulator
5: solid state relay output driver (SSR) of the two PID regulator
6: output single-phase thyristor phase-shifted signal to trigger the PID regulator (SCR regulator)
7: The output of single-phase zero-crossing triac trigger signal PID regulator (SCR Power Regulator)
8: Three-phase SCR trigger signal output of the PID regulator with additional devices (three-phase reactive power transfer)
9: output DC 0 ~ 10mA current signal for the PID regulator
(5) - alarm mode
0: No alarm
1: The absolute upper limit alarm contact output function (contact capacity 220V, 3A resistive)
2: with a minimum absolute alarm contact output function
3: The lower and upper limit contact output alarm function
4: the upper limit deviation alarm 5: minimum deviation alarm
6: on, the lower limit deviation alarm
7: on the upper limit absolute alarm
8: on the upper limit deviation value alarm
9: user requested alarm other means (language note when ordering)
(6) - input signal
1: Thermocouple (K, E, S, B, J, T, R, N, etc. )
2: Thermal Resistance (PT100, Cu50, Cu100, BA1, BA2, G, etc. )
3: Standard voltage (0 ~ 5V, 1 ~ 5V, 0 ~ 10V, etc. )
4: Standard resistance (0 ~ 400Ω and so on, such as pressure resistance FarEasTone YTZ-150)
5: 0 ~ 10mA current standards
6: standard current 4 ~ 20mA
9: the special requirements of users of other signal input
(7) - Instrumentation Additional features
V: DC 24V with feed output (transmitter power can be used)
T: timing belt
P: thirty paragraph with control (heating curve)
B: transmission output current and voltage signals (corresponding to the input can be isolated)
Q: other special features users demand
