Interference Suppression Film Capacitor MKP X2

Name: Interference Suppression Film Capacitor MKP X2
Brand: China-Manufacturer-Directory.com
SKU: 771661675
Availability: InStock
Rating: 4.5 (146 reviews)

Supplier:	Zhengli Group Company Limited
Price:	US $ 0.034-0.35/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MKP-X2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electric:	Metallized Polypropylene Film
Rated Voltage:	275VAC 310VAC
Impulse Voltage Withstanding:	2500VDC
Capacitance Range:	0.0047 ~ 2.2 UF
Capacitance Tolerance:	10% 20%
Dissipation Factor:	0.3% Max at 10kHz and 25c
Operating Temperature:	-40 ~ +100
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Through Hole
Capacitance:	472 ~ 225
Electrolyte:	Polypropylene Film Capacitor
Tuning:	Polypropylene Film Capacitor
Filter:	Polypropylene Film Capacitor

Product Description

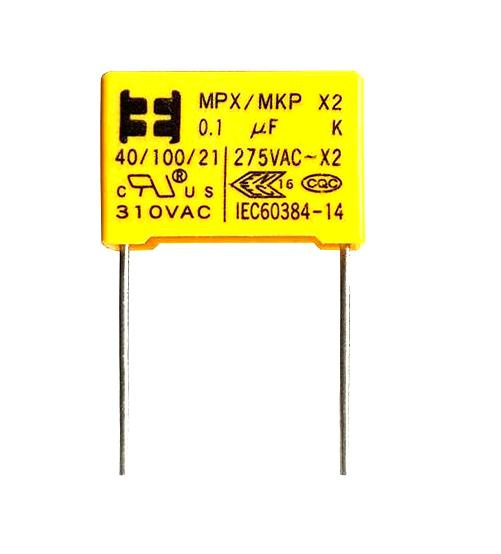

Metalized polypropylene film capacitor class X2

1.Features and uses
MKP-X2 are non-inductively wound with metalized polypropylene film as the dielectric / electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin ,the identical outer appearance , very low loss at high frequency ,suitable for high current. High insulation resistance ,long life due to self-healing effect ,withstanding 2.5KV impulse voltage ,class X2 ,as an aross-the-line type noise suppression capacitor ,and suitable for AC purpose .

2.Specifications

Reference standard	GB/T 14472 (IEC60384-14)
Climatic category	40/100/21
Rated voltage(Ur)	275/310VAC
Capacitance range	0.001 ~ 2.2Uf
Capacitance tolerance	J:±5% K:±10% M:±20%
Voltage proof	4.3Ur(5S)
Dissipation factor	≤0.3%(10KHz ,20ºC)
Insulation resistance(IR)	Cr ≤0.33uF ≥15000MΩ
Insulation resistance(IR)	Cr > 0.33uF ≥5000S(20ºC,1min)

3.Recognized standards and certificates

Recognized organization	Recognized marks	Recognized standard	Certificates series No	Rated Voltage
CQC		GB/T14472-1998	CQC11001061901	275VAC
UL / CUL		UL60384-14	E365151	310VAC
ENEC		DIN EN 60384-14(VDE0565-1-1):2014-04; EN 60384-14:2013-08 IEC 60384-14(ed.4)	2013045	275VAC

4.Dimensions(unit:mm)

Capacitance (UF)	P=7.5			P=10			P=15			P=22.5			P=27.5
	W	H	T	W	H	T	W	H	T	W	H	T	W	H	T
	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
0.001	10.5	9	4
0.0012	10.5	9	4
0.0015	10.5	9	4
0.0018	10.5	9	4
0.0022	10.5	9	4
0.0027	10.5	9	4
0.0033	10.5	9	4
0.0039	10.5	9	4
0.0047	10.5	9	4
0.0056	10.5	9	4
0.0068	10.5	9	4
0.0082	10.5	9	4
0.01	10.5	9	4
0.012	10.5	9	4
0.015	10.5	9	4
0.018	10.5	9	4	13	9	4
0.022	10.5	9	4	13	9	4
0.027	10.5	11	5	13	9	4
0.033	10.5	11	5	13	11	5
0.039	10.5	12	6	13	11	5
0.047	10.5	12	6	13	11	5
0.056				13	11	5	18	11	5
0.068				13	12	6	18	11	5
0.082				13	12	6	18	11	5
0.1				13	12	6	18	11	5
0.12							18	12	6
0.15							18	12	6	26.5	15	6
0.18							18	13.5	7.5	26.5	15	6
0.22							18	13.5	7.5	26.5	15	6
0.27							18	14.5	8.5	26.5	16	7
0.33							18	16	10	26.5	16	7
0.39							18	19	11	26.5	17	8.5
0.47							18	19	11	26.5	17	8.5	32	18	9
0.56										26.5	18.5	10	32	18	9
0.68										26.5	18.5	10	32	18	9
0.82										26.5	22	12	32	20	11
1.0										26.5	22	12	32	20	11
1.2													32	22	13
1.5													32	22	13
1.8													32	24.5	15
2.2													32	28	14
2.7													32	33	18
3.3													32	33	18
3.9													32	37	22
4.7													32	37	22

Note :we can offer your specific demand by technology treaty .
