Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Feature 1: |
Real Supplier of If Melting Furnace |
Feature 2: |
More Than 40 Years Experience |
Feature 3: |
Good Quality, Competitive Price |
Feature 4: |
Long Performance Life |
Feature 5: |
Fast Melting Rate |
Feature 6: |
Easy to Set-up and Use |
Feature 7: |
Easy to Control Furnace Temperature |
Feature 8: |
Unique Purified Water Cooling System |
Feature 9: |
ISO9001 & CE Certificates |
Feature 10: |
Flexable Payment Items |
Certification: |
CE ISO |
Type: |
Metal Melting Furnace |
Product Description
Advantage
1. 20-30% power saving
2. 20 years of experience
3. High speed
4. Low consumption
5. ISO&CE certificate
6. Easy operation and maintenance
7. Leading technology.
8. Best price
Application of Induction furnace

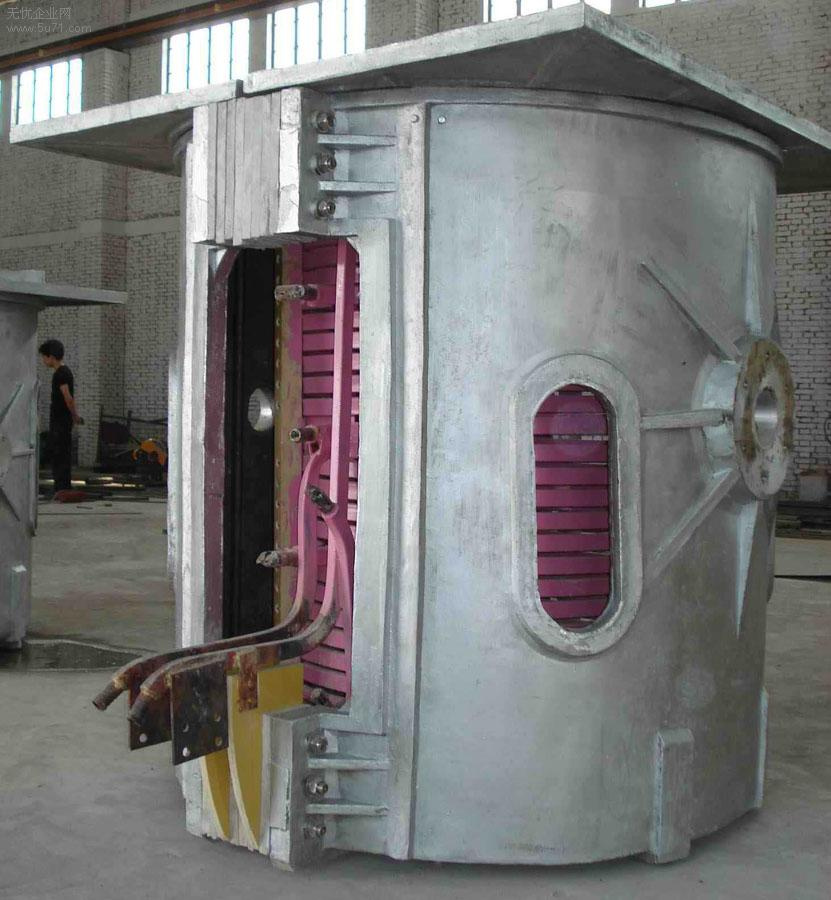

Intermediate Frequency Electrical Melting Furnace, also called as Induction Smelting Furnace, which converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting. It is applicable to melting, heating or insulting of steel, copper, iron, aluminum, zinc, tin, nickel silver and other ferrous, nonferrous metal. It can also be used for other heating treatment before forging, sintering and tube-bending forming in the casting and melting industries.
Intermediate Frequency Electrical Furnace Performances and Features
1. Adopt a zero-voltage scanning soft-start mode, it can be started or stopped in any case and at any time, so it has no impact on power supply.
2. Fast smelting with low production cost; Low-pollution and environment-friendly;
3. Start melting from cool furnace. The metal liquid can pour out of all. Easy to change the different metal to melting...
4. It is flexible, easy, convenient to adjust the power. Be able to adjust continuously and smoothly. Temperature is even and can be easily controlled. Less oxidation burning. Metal components is even.
5. Furnace shell is adopt aluminum alloy or steel structure, covering small area; Furnace body easy to tilt and rotate, can choose the motor, manual, hydraulic system's function depend on customers' request.
6. Design a inverter angle adjust the circuit automatically, can adjust the loading impedance's matching, reach constant power output, no need adjust compensate capacitor, but can work at the good status, feed system has diagnosis mistakes' function, easy to check.
7. Suitable for intermittent production. Low temperature around the stove, less smoke, good working environment.
Furnace Capacity |
Rating Power |
Input Voltage |
Input Phase |
Input Current |
Assorted Transformer |
Output Voltage |
Output Frequency |
Melting Time |
Volume |
Weight |
GW-0.05T |
50KW |
380V |
3 |
80A |
60KVA |
750V |
2.5KHZ |
20-60Min |
1.2 m³ |
350KG |
GW-0.1T |
100KW |
380V |
3 |
160A |
120KVA |
750V |
1KHZ |
20-60Min |
6 m³ |
1500KG |
GW-0.15T |
100KW |
380V |
3 |
160A |
120KVA |
750V |
1KHZ |
30-70Min |
6.5m³ |
1600KG |
GW-0.2T |
120KW |
380V |
3 |
192A |
150KVA |
750V |
1KHZ |
30-70Min |
7.5m³ |
1700KG |
GW-0.3T |
130KW |
380V |
3 |
208A |
150KVA |
750V |
1KHZ |
30-70Min |
8.5m³ |
1800KG |
GW-0.4T |
250KW |
380V |
3 |
400A |
315KVA |
750V |
1KHZ |
30-70Min |
9.5m³ |
2300KG |
GW-0.6T |
350KW |
380V |
3 |
560A |
400KVA |
750V |
1KHZ |
40-80Min |
11m³ |
2500KG |
GW-0.75T |
450KW |
380V |
3 |
720A |
500KVA |
750V |
1KHZ |
40-80Min |
12m³ |
3800KG |
GW-1T |
600KW |
380V 380V-2 |
3/6 |
960A 480A |
600KVA 800KVA |
750V 1300V |
0.8KHZ |
50-90Min |
13m³ |
4500KG |
GW-1.25T |
800KW |
380V 380V-2 |
3/6 |
1280A 640A |
800KVA 1250KVA |
750V 1300V |
0.8KHZ |
50-90Min |
14m³ |
5000KG |
GW-1.5T |
1000KW |
380V 380V-2 |
3/6 |
1600A 800A |
1250KVA 1500KVA |
750V 1300V |
0.8KHZ |
50-90Min |
15m³ |
5500KG |
GW-2T |
1250KW |
660V 380V-2 |
3/6 |
1120A 1000A |
1500KVA 1800KVA |
1300V |
1300V |
50-90Min |
17m³ |
6000KG |
GW-3T |
1500KW |
660V 380V-2 |
3/6 |
1350A 1200A |
1800KVA 2000KVA |
1300V |
1300V |
60-100Min |
20m³ |
7000KG |
GW-5T |
2500KW |
1000V 660V-2 |
3/6 |
2000A 1120A |
3000KVA 3500KVA |
1300V |
1300V |
60-100Min |
23m³ |
8500KG |
Foshan Hengyang Furnace Manufacturering Co., Ltd. Was established in 1999, located in Foshan city, where is 30 miles away from Guangzhou Airport.
We are one of the largest leading intermediate frequency furnace manufacturers in China. We have been ISO 9001 and CE certified, achieved the quality management of international practice. Our company had been awarded High Quality Product and Faithful Organization Prizes by our government.
Our main product includes Energy Saving Intermediate Frequency Melting Furnace, Intermediate Frequency Induction Furnace, Metal Furnace, Melting Furnace, Induction Heating Furnace etc. Our Product is widely applicable to melting, warming or insulating of steel, cooper, aluminum, zinc, gold, silver or other metal or alloy, heating treatment before forging, sintering and tube-bending forming, and quenching, tempering or other heating of mechanical parts in casting and melting industries.
With strong design, application and manufacturing capacity, hundreds of mechanical processing equipment, a group of experienced engineering technicians who have been engaged in high and intermediate frequency product design and manufacturing for more than 20 years, we have absorbed domestic and international advanced technologies as well as excellent workmanship and reliability of former products based on years of practice and improvement, have been known for rational design, stable performance, easy operation and attractive price across China and have been widely recognized by customers, and have helped our customers to obtain good production and economic benefits. Our products are exported to Europe, Africa, Russia, India, Malaysia, Bangladesh, Korea, Vietnam, Iran, Bahrain, and other country or region.
We are committed to deliver "turnkey" project covering not only quality and reliable products but also application related products but also application related process, technology and operator training for free f charge. We have separate after-sales department to perform regular follow-up service and reassure customers by directly solving of any problem emerged in practical production.
We always follow the business principle of "faithful and down-to-earth" and take "today' S quality, tomorrow' S market" as our operation philosophy to promote goodwill with quality and win public praise with service in fierce market competition bringing both challenge and opportunity. Let' S build a bright future in a sharing and win-win manner. We welcome regular and new customers visit our premises for negotiation. You will be warmly served!
