Camet Metallurgical Technologies Co., Ltd. >> Intermediate Mill Roll for Cold Rolling Machine Mill

Intermediate Mill Roll for Cold Rolling Machine Mill

Name: Intermediate Mill Roll for Cold Rolling Machine Mill
Brand: China-Manufacturer-Directory.com
SKU: 701896282
Availability: InStock
Rating: 4.3 (143 reviews)

Supplier:	Camet Metallurgical Technologies Co., Ltd.
Price:	US $ 4000/Ton
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Customer Request
Size:	as Per Drawing
Type:	Steel Rolling Equipment
Certification:	ISO

Product Description

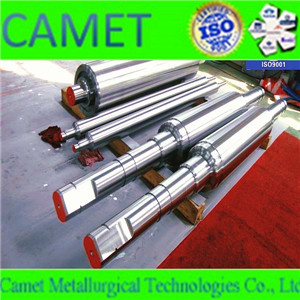

Intermediate Mill Roll for Cold Rolling Machine Mill
Properties
Forged steel rolls are treated with dual frequency heating machine and cold treatment equipment. The whole procedure is computer-controlled so as to provide rolls with a deep hardened layer, high and homogeneous hardness, superior wear ability and sufficient resistance to accident. We produce forged roll for rolling mills, specialized making kinds of steel forging and casting mill roll and back up roll.

Chemical Analysis

Material	C	Si	Mn	Cr	Mo	V	Ni	S	P
9Cr2Mo	0.85-0.95	0.25-0.45	0.20-0.40	1.70-2.10	0.20-0.40	--	≤0.30	≤0.030	≤0.030
86CrMoV7	0.80-0.90	0.15-0.40	0.30-0.50	1.80-2.40	0.20-0.40	0.05-0.15	--	≤0.030	≤0.030
9Cr3Mo	0.85-0.95	0.25-0.45	0.20-0.35	2.50-3.50	0.20-0.30	--	≤0.30	≤0.030	≤0.030
MC3	0.82-0.90	0.60-0.90	0.20-0.45	2.80-3.20	0.40-0.60	0.05-0.15	0.60-0.80	≤0.020	≤0.015
MC5	0.80-0.90	0.30-0.55	0.20-0.50	4.80-5.40	0.20-0.40	0.05-0.12	0.30-0.50	≤0.020	≤0.015
70Cr3Mo	0.60-0.75	0.40-0.70	0.50-0.90	2.00-3.50	0.25-0.60	--	≤0.60	≤0.030	≤0.030
45Cr5NiMoV	0.48-0.55	0.30-0.55	0.20-0.50	4.90-5.40	0.30-0.50	0.10-0.20	0.30-0.50	≤0.020	≤0.015

Physical Properties

Designation of rolls	Hardness (HSD)	Depth of hardness (mm)	Hardness deviation (HSD)
Work Roll	70-104	10-50	±1
Intermediate Roll	70-85	10-50	±1
Sendzimir Work roll	60-66HRC	≥10	±1
Sendzimir Intermediate Roll	55-60HRC	≥15	±1
Back-up Roll	60-80	10-75	±1.5

Application

Designation of rolls	Application	Depth of hardness (mm)
9Cr2Mo	All kinds of rolls	≥10
86CrMoV7	All kinds of rolls	≥12
9Cr3Mo	Work rolls & intermediate rolls	≥15
MC3	Work rolls & intermediate rolls	≥20
MC5	Work rolls & intermediate rolls	≥25
70Cr3Mo	Work rolls & back-up rolls	≥50
45Cr5NiMoV	Back-up rolls	≥75

Depending on the excellent leadership, stable and professional employees, perfect management system and rapidly developing business, Camet Metallurgical Technologies Co., Ltd. Has developed into the one of the Chinese professional providers destined for offering cost-effective products and value added trading service in the field of metallurgical engineering. We are looking forward to establishing a win-win situation between you and Camet.

We have been supplied to more than 40 steel factories from USA, Mexico, Brazil, Argentina, Thailand, India, UK, Italy, Russia, Turkey, Kenya, Kuwait, such as Mittal, V&M, US steel, Corus Euro, etc. We have achieved excellent reputation from our customers.

Camet Metallurgical Technologies Co., Ltd. Has already certificated under ISO9001: 2000 quality control system since 2006, at the same time, recorded in DUNS global credit standing system (DUNS No.: 52794-3626). We will do our best to build an effective bridge between you and China under the condition of global trade integration.
