Product Specifications
| Prod Model: |
HLC-34UE~238UE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Fan Coil Unit |
| Application: |
Commercial |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Brand Name: |
Hlgolden |
| Marketing Refliction: |
Good |
| Design: |
Unique |
| Noise: |
Low |
| Heat Exchanger: |
Aluminum Fin Arround Copper Tube |
| Fan Coil Unit 1: |
Chiller Water Fan Coil Unit |
| Fan Coil Unit 2: |
Ceiling Mounted Fan Coil Unit |
| Certification: |
CE |
| Electric Current Type: |
AC |
| Mounting: |
Wall Fan |
| Blade Material: |
Plastic |
Product Description

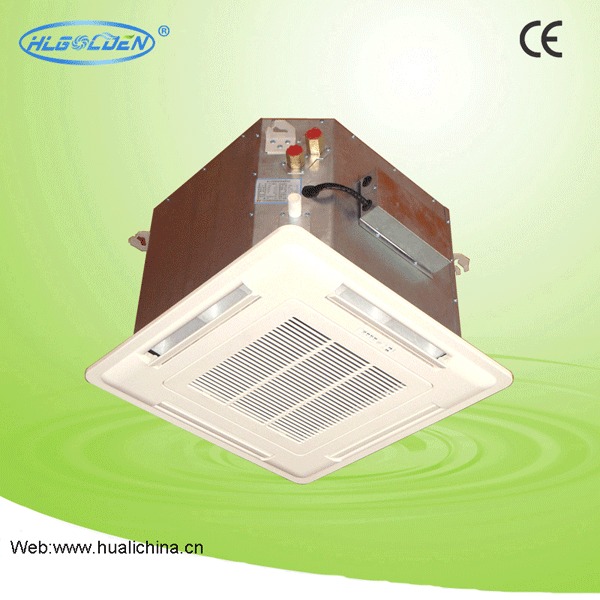

Chilled water duct cassette fan coil unit
1. Parameter of casstte fan coil unit
2. Certification
3. Features
1)Silence design with low noise
2)Air flow direction can be changed to have uniform cooling
3)No need for air duct
4)Special design of the air filter, the filter can be dismantled without special tools
5) Easy for cleaning and maintenance
6)Driving device and remote control device can be provided for the outlet plates
7)Lifting pump and coils can be provided for collecting condensed water
8)Electric source: 220V, 1-phase and 50Hz -60HZ
HLGOLDEN company business scope
Air Cooled Water Chiller,
Water Cooled Water Chiller,
Glycol Water Chiller,
Industrial Chiller,
Multi-function Chiller,
Hot water unit heat recovery unit,
Heat pmp unit,
Condensing unit,
Air handing unit,
Fan coil. Etc.
|
Model HLC~ |
34UE |
51UE |
68UE |
85UE |
102UE |
136UE |
170UE |
204UE |
238UE |
|
Power supply |
220V,50Hz,1Ph |
Air flow
(m3/h) |
High speed |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
|
Medium speed |
280 |
380 |
515 |
660 |
765 |
1040 |
1280 |
1550 |
1800 |
|
Low speed |
180 |
260 |
340 |
430 |
530 |
710 |
860 |
1050 |
1280 |
|
Static pressure |
Pa |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
Cooling capacity |
High |
W |
1800 |
2700 |
3600 |
4500 |
5400 |
7200 |
9000 |
10800 |
12600 |
|
BTU/h |
6142 |
9212 |
12283 |
15354 |
18425 |
24566 |
30708 |
36850 |
42991 |
|
Medium |
W |
1500 |
2460 |
3000 |
3715 |
4423 |
6435 |
7848 |
9296 |
10500 |
|
BTU/h |
5118 |
8394 |
10236 |
12676 |
15091 |
21956 |
26777 |
31718 |
35826 |
|
Low |
W |
1391 |
2057 |
2479 |
2921 |
3793 |
5604 |
7223 |
8534 |
8900 |
|
BTU/h |
4746 |
7018 |
8458 |
9966 |
12942 |
19121 |
24645 |
29118 |
30367 |
|
Heating capacity |
High |
W |
2700 |
4050 |
5400 |
6750 |
8100 |
10800 |
13500 |
16200 |
18900 |
|
BTU/h |
9212 |
13819 |
18425 |
23031 |
27637 |
36850 |
46062 |
55274 |
64487 |
|
Medium |
W |
1949 |
2770 |
3938 |
4902 |
5694 |
7924 |
10473 |
12997 |
13900 |
|
BTU/h |
6650 |
9451 |
13436 |
16726 |
19428 |
27037 |
35734 |
44346 |
47427 |
|
Low |
W |
1297 |
1774 |
2779 |
3505 |
3876 |
5421 |
6992 |
8645 |
9700 |
|
BTU/h |
4425 |
6053 |
9482 |
11959 |
13225 |
18496 |
23857 |
29497 |
33096 |
|
Noise |
H |
0Pa |
dB(A) |
37 |
39 |
41 |
43 |
45 |
46 |
48 |
50 |
51 |
|
Power input |
H |
0Pa |
W |
37 |
52 |
62 |
76 |
96 |
134 |
152 |
189 |
228 |
|
Waterflow volume |
m 3 /h |
0.31 |
0.46 |
0.62 |
0.77 |
0.93 |
1.23 |
1.54 |
1.85 |
2.16 |
|
Water pressure dropping |
kPa |
11.8 |
11.8 |
22.4 |
27 |
29.6 |
29.6 |
35.4 |
35.4 |
40 |
|
Pipe |
Inlet/outlet water pipe |
ZG3/4" |
|
Condensation water pipe |
ZG3/4" |
|
Coil |
type |
high efficient copper pipe to wear Hydrophilic aluminum coil |
|
Drain pipe size |
mm |
26 |
|
Dimension |
unit |
L×W×H mm |
590*590*270 |
752*752*293 |
822*822*293 |
|
panel |
650*650*45 |
850*850*45 |
950*950*45 |
|
Weight |
unit |
kg |
19 |
19 |
20 |
23 |
23 |
25 |
28 |
28 |
29 |
|
Panel |
2.2 |
4.5 |
6 |
