Internet Audio RS485 Data Digital Video Ofdm Wireless

Name: Internet Audio RS485 Data Digital Video Ofdm Wireless
Brand: china-manufacturer-directory.com
SKU: 732236095
Availability: InStock
Rating: 4.6 (56 reviews)

Price:	US $ 150-200/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Internet audio rs485 data digital video ofdm wireless

Functions

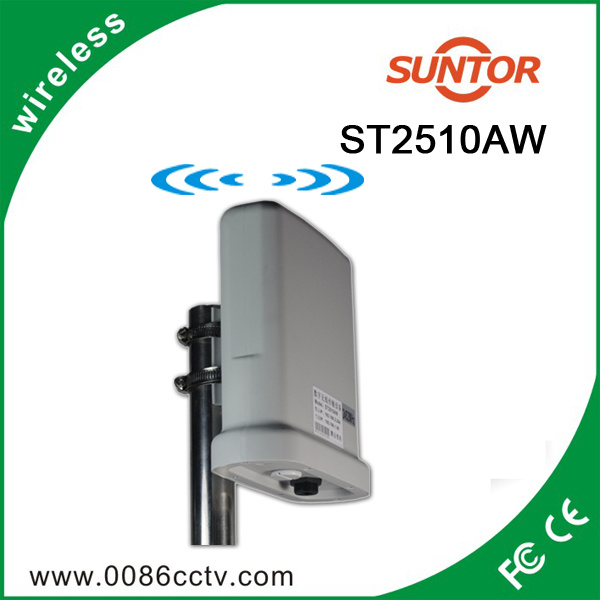

ST2510AW internet audio rs485 data digital video ofdm wireless
1. The interface is simple and convenient debugging
2. Parameter interface graphical
3. The different standards, different power: 27dBm (802.11b) 25dBm (802.11g), 23dBm (802.11b), depending on the distance and bandwidth requirements to set different standards in order to achieve the best results.
4. Supports Spanning Tree Protocol can effectively suppress broadcast storms
5. Support QoS (WMM) multimedia protocol, the transfer of large volumes of multimedia signals
6. Supports Chinese Simplified, Chinese Traditional, English interface, more convenient setting,
7. Upgrade, backup support for popular browser web operation
8. Support encryption, easy and confidential
9. Strong anti-interference
10. Suitable for use in low-temperature environments
11. Scalability, the network is convenient

Applications
ST2510AW internet audio rs485 data digital video ofdm wireless
1. The construction sites, mines, water conservancy, oil field, large water breeding sites, large farms, forest fire prevention, troop exercises harsh environments such as high-definition video surveillance, multimedia signal transmission
2. Wireless Internet coverage of the campus, a large office space, shopping malls, hotels and other public places (the account allocation)
3. Between the buildings networking.
4. Wireless transmission of video, audio, network, data, and other large-capacity data transmission

Standard	IEEE 802.11 n; IEEE 802.11b/g; IEEE 802.3; IEEE 802.3u
Type of Chips	Atheros AR9331(USA)
SDRAM memory	32 M Byte
Flash memory	8 M Byte
Wireless communication type	DSSS/OFDM
Modulation mode	DSSS with CCK,DQPSK,DBPSK OFDM with BPSK,QPSK,16QAM,64QAM
Frequency range	USA FCC:2.412~2.462 GHz (11- channel) Europe CE/ETSI:2.412~2.472 GHz (13- channel)
Transmitting power	802.11b: 27±1dBm@1~11Mbps 802.11g: 25±1dBm@6~54Mbps 802.11n: 23±2dBm@HT20; 23±2dBm@HT40
Transmission speed	IEEE802.11b: 1/2/5.5/11Mbps IEEE802.11g: 6/9/12/18/24/36/48/54Mbps IEEE802.11n: MCS0~MCS7
Interface type	Auto sensing MDI/MDI-X Ethernet 10/100Base-TX: RJ-45
Sensitivity	IEEE 802.11b: -92dBm @ 1Mbps; -87dBm @ 11Mbps, PER < 8% IEEE 802.11g: -88dBm @ 6Mbps; -73dBm @ 54Mbps, PER < 10% IEEE 802.11n:-88dBm @ MCS0; -70dBm @ MCS7, HT20. -85dBm @ MCS0; -68dBm @MCS7, HT40
Antenna	Built-in 15dbi panel antenna .
Safety encryption	WEP, WPA/WPA2 Enterprise, WPA-PSK/WPA2-PSK,WEP 802.1x
Wireless setting	Work mode selection – AP (wireless coverage mode), WDS (bridge mode), Client Bridge + Universal the Repeater (client plus repeater mode) channel selection can choose according to different countries and regions (USA / Europe / Japan) transmitter power adjustment step 1dB network mode – 11b, 11g and 11gn of HT20 11gn HT40
Software /edition	Support Site Survey (AP search function) l Support DHCP Startup and Shutdown Support hidden SSID, Support WPS Choice Support Spanning Tree Protocol Support wireless access control by MAC address (up to 50) Supports virtual LAN (VLAN up to 8 groups, each support 32 subscriber unit), Multiple SSID Support wireless isolation – VAP / Client Support segmented control Based on the popular browser web set Through the web page to upgrade the version and set the backup Though the web UI interface to restore the factory settings Support system logs, SNMP v1/v2c l MIB support: MIB I, MIB II (RFC-1213) and Private MIB Support QoS (WMM) multimedia system Support to choose the multi-lingual (Chinese Simplified, Chinese Traditional, English), Support time zone settings and DNS
Working environment	Support harsh environment : -30 ~ +70°C
Power supply	PoE 12~18 Volt + 5 %; 1A (Max.) AC adapter AC 100V ~ 240V
Size / weight	21519279 mm /650g (800g with box)
System operation	Windows 2000/XP/Vista/Windows 7

Prod Model:	ST2510AW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Modulation:	Ofdm
Antenna:	Built-in 15dBi Antenna
Frequency:	2412 ~2472MHz
Type Of Chips:	Atheros Ar9331(USA)
Distance:	3-4km
Signal:	Audio Video Internet RS485
Type:	Outdoor
Weight:	650g (800g with Box)
Temperature:	-30 Deg ~+70 Deg
Size:	21519279 Mm
Application:	Audio Transmission
Oscillator Circuit:	D / A Converter or Digital Potentiometer
Modulation:	Ofdm
Receiver Chip:	Atheros Ar9331(USA)
